Always ensure the main power supply is switched off before connecting any electrical receptacle or control unit to prevent shocks. Verify voltage levels using a multimeter and confirm neutral and live conductors are correctly identified before proceeding.
Use color-coded conductors and secure all terminals tightly to maintain reliable contacts. For grounded installations, attach the protective conductor to the designated screw point to reduce the risk of short circuits or faulty operation.
When configuring multiple units on a single loop, maintain consistent phase alignment and avoid overloading the line. Proper labeling of each conductor simplifies future maintenance and ensures compliance with local electrical standards.
Step-by-step Guide for Installing Electrical Receptacles and Control Units Correctly
Ensure the main power source is turned off and verify absence of voltage with a multimeter before handling any electrical receptacle or control unit. Identify hot, neutral, and grounding conductors to prevent misconnection.
Prepare conductors by stripping insulation to the recommended length of 10–12 mm. Insert each conductor into its designated terminal, ensuring the metal core makes full contact. Tighten screws to secure stable connectivity.

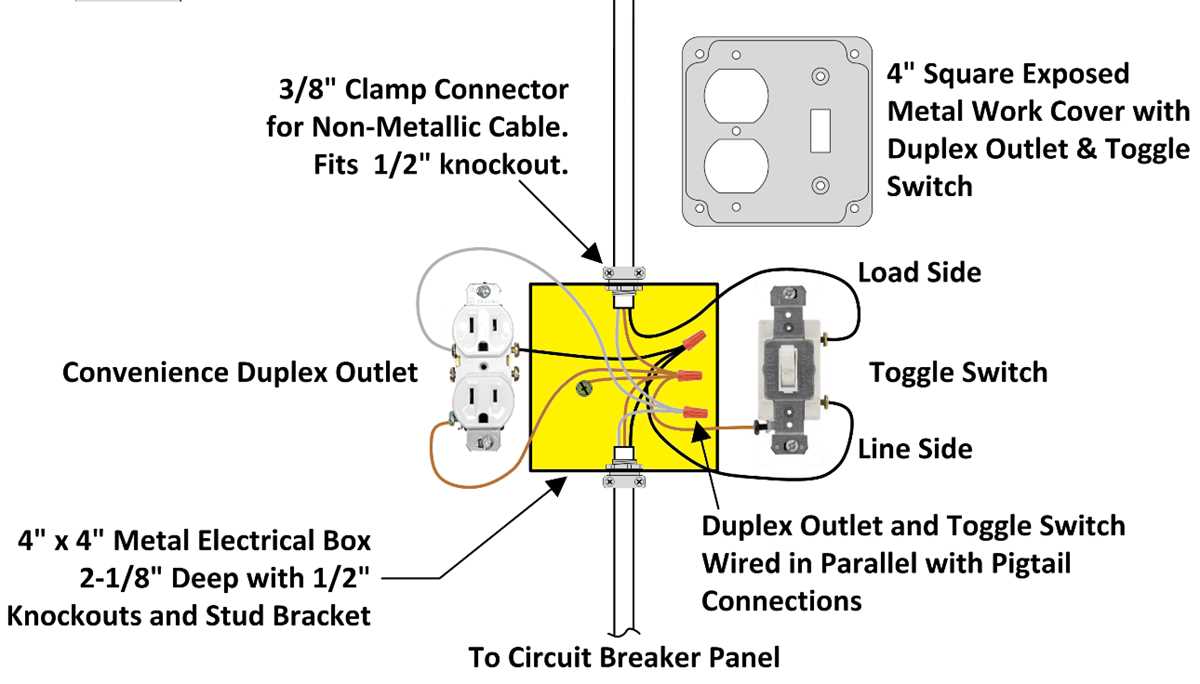

For daisy-chained installations, maintain consistent polarity and avoid crossing live and neutral paths. Use pigtail connections when extending the line to multiple receptacles to reduce terminal strain and prevent overheating.
Attach grounding wires firmly to the green screw or designated grounding slot. Check continuity between all grounding points to ensure effective protective conduction. This step significantly reduces the risk of short circuits or electric shock.
After assembly, mount each control unit or receptacle into its box without pinching conductors. Restore power and test each unit with a voltage tester or a compatible device to confirm correct operation and safe functionality.
Connecting Power and Ground Wires for Electrical Receptacles
Turn off the main breaker and verify the absence of voltage using a reliable tester before handling any receptacle connections. Identify live, neutral, and grounding conductors clearly to avoid cross-contact.
Strip insulation on the hot and neutral wires to 10–12 mm and insert them fully into their respective terminals. Secure screws firmly, ensuring the copper core is completely clamped for stable current flow and minimal resistance.
Connect the grounding wire to the green screw or dedicated grounding slot, looping the conductor clockwise around the screw for maximum contact. Confirm continuity with a tester to verify that all grounding paths are intact and safe.
After securing all connections, gently fold conductors into the mounting box without pinching. Reinstall the receptacle, restore power, and test with a voltage indicator or small appliance to confirm proper operation and safe function.
