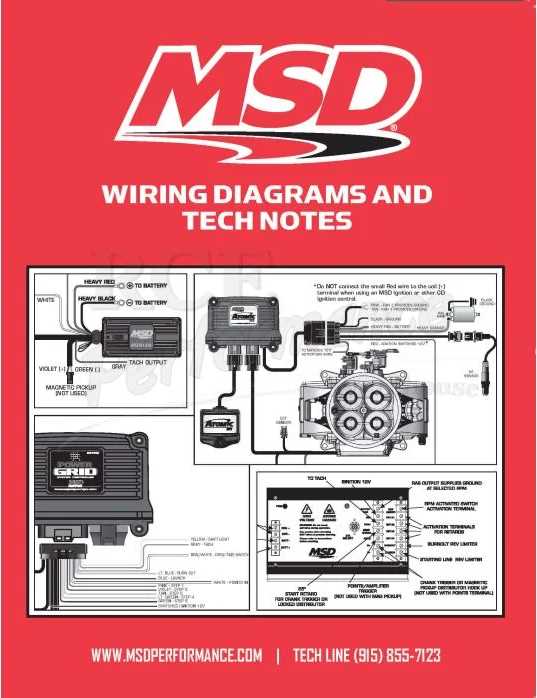

Ensure stable power supply before connecting the control module to prevent voltage drops that can cause misfires. Use a 12-volt source capable of handling 20 amps and connect a dedicated ground directly to the chassis for reliable operation.

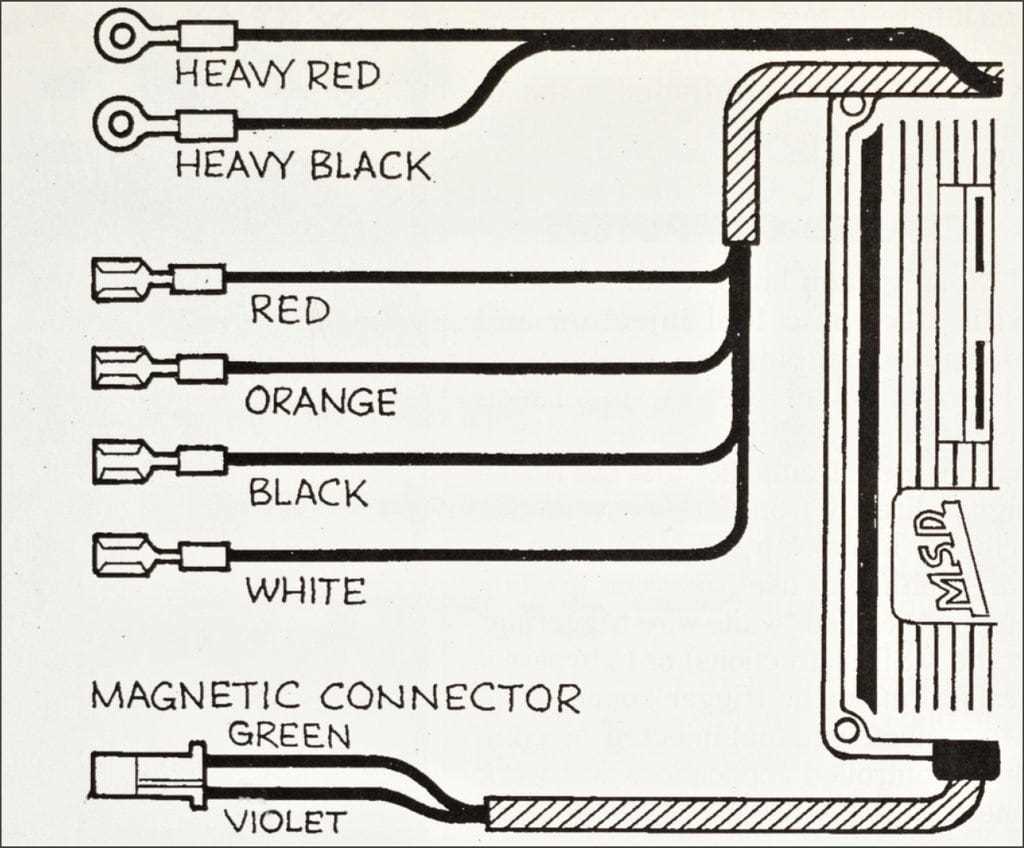

Identify each terminal by function rather than position to reduce installation errors. The main output leads should connect to the ignition coil, while trigger inputs must receive clean signals from the distributor or crank sensor without interference from other circuits.
Maintain correct polarity on all auxiliary connections including tachometer and accessories. Reversing leads can damage internal circuits and void warranty, so follow color codes and pin markings precisely. Use crimped terminals or soldered joints with heat shrink for durability and vibration resistance.
Verify continuity and voltage levels before full system operation. A simple multimeter test between power, ground, and trigger leads confirms proper installation. Avoid shared grounds with high-current devices to prevent signal disruption.
Route all leads away from engine heat sources and moving components. Flexible loom or conduit can protect insulation from chafing, extending the module’s lifespan. Keep sensor input leads separated from high-current outputs to reduce electrical noise.
Double-check coil and trigger connections before first startup. An incorrect sequence may cause weak spark or engine hesitation. Testing with a bench setup or temporary connections can save time and prevent damage.

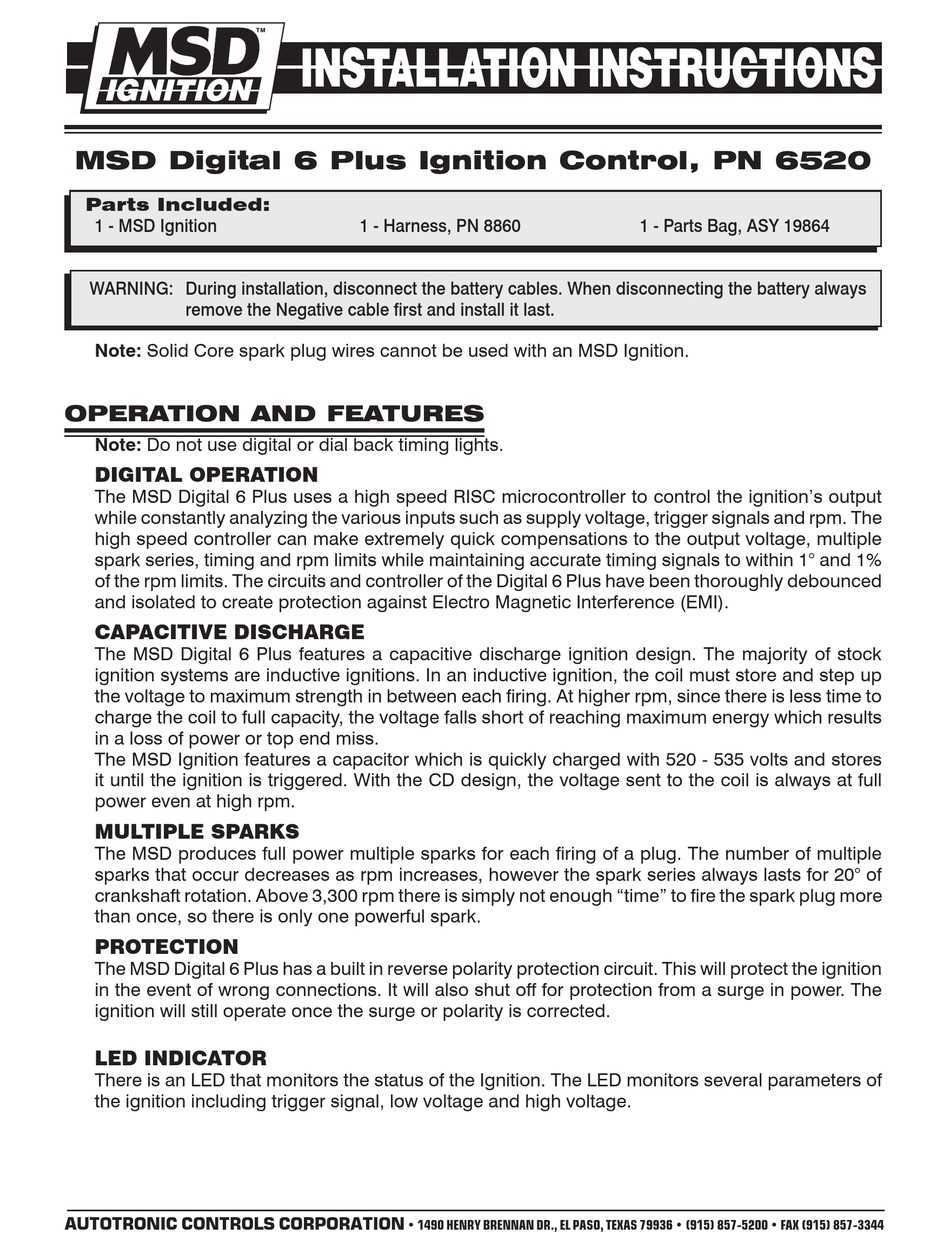

MSD 6 Plus Connection and Setup Guide

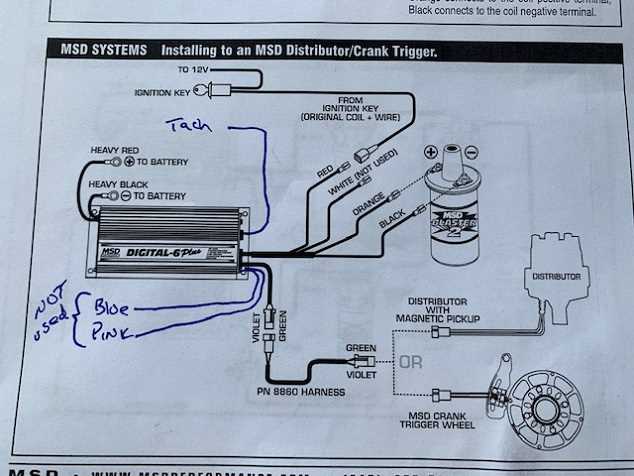

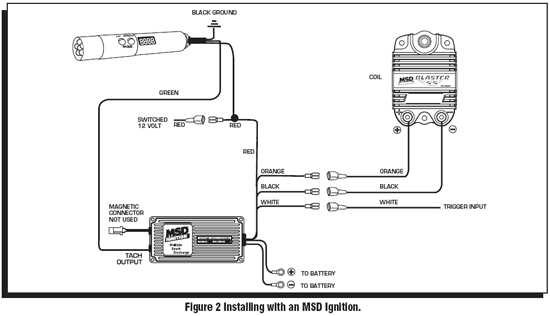

Connect the main power lead to a 12-volt source rated for at least 20 amps and secure a dedicated ground to the chassis. Ensure the trigger input receives a clean signal from the distributor or crank sensor without crossing high-current leads to prevent interference. Verify all terminals are tight and insulated using heat-shrink or crimped connectors to avoid voltage drops during operation.
Test each output lead before full installation to confirm proper sequence to the ignition coil and tachometer connections. Route all leads away from engine heat and moving parts, using protective loom where necessary. A multimeter can confirm continuity and voltage at each point, ensuring the module operates reliably under load conditions.
Power and Ground Lead Identification for Accurate Module Setup
Connect the main power lead directly to a stable 12-volt source rated for at least 20 amps to ensure consistent voltage under load. Avoid tapping into accessory circuits that may drop voltage during engine start or high-demand conditions.
Use a dedicated ground connection to the chassis or engine block free of paint and corrosion. A poor ground can result in misfiring, erratic tachometer readings, and inconsistent spark delivery.
Label each lead clearly during installation to prevent cross-connections. Typically, the red lead is for positive input, and the black lead is for ground. Confirm polarity before applying power to prevent permanent damage to the module.
Route leads away from heat sources such as exhaust headers or turbo components. High temperatures can degrade insulation, causing shorts or intermittent failures over time.
Use crimped terminals and heat-shrink tubing on all connections to reduce resistance and prevent oxidation. Loose or corroded contacts increase the risk of voltage drop and unreliable operation.
Measure voltage at the input terminal with a multimeter before finalizing installation. The module should receive a stable 12 volts with no significant drop when the engine cranks or under high electrical load.
Test the module under normal operating conditions after completing power and ground connections. Verify coil activation, tachometer response, and timing signals to confirm the leads are correctly identified and functioning as intended.
