To ensure the proper operation and longevity of your cooking appliance, familiarizing yourself with its internal structure is crucial. One of the primary components to focus on is the magnetron, which plays a critical role in generating heat. If your device is no longer heating food evenly, the magnetron may need to be examined or replaced.
The transformer is another key element that often requires attention. It converts electrical power to a usable voltage to operate different features. A malfunction here could cause the entire system to fail, so understanding how to troubleshoot and replace this unit is important.
Additionally, the high-voltage capacitor ensures that electrical currents flow safely within the unit. A faulty capacitor can result in overheating or cause issues with the heating cycles. Regular checks on these components can save time and prevent costly repairs.

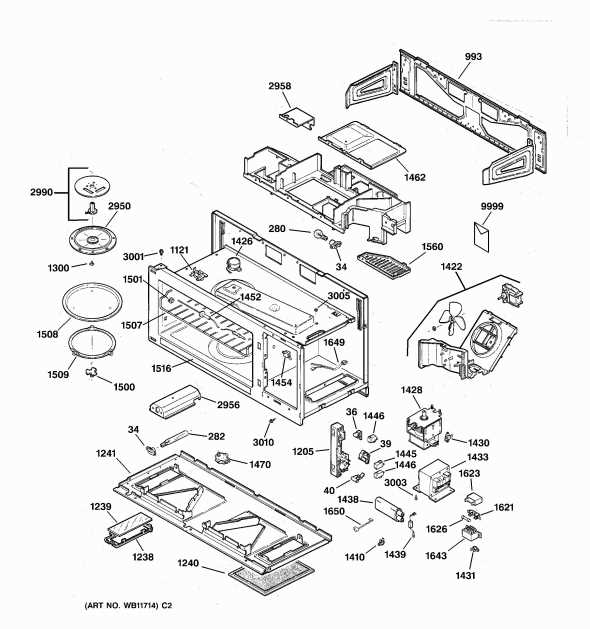

Microwave Components Breakdown and Identification
The magnetron is the core component that generates the heat inside your appliance. This component is responsible for converting electrical energy into microwave radiation, which heats food. If your unit isn’t heating food properly, the magnetron should be inspected for damage or wear.
The high-voltage transformer is critical for providing power to the magnetron and other electrical components. A malfunction in the transformer can prevent the system from powering up. It’s important to check the transformer for any signs of burn marks or electrical damage.
The capacitor stores electrical energy and ensures that the high-voltage system operates safely. If this part is defective, you may experience issues with heating cycles or the unit may not power on at all. Regular inspection of this component is recommended for safe operation.
The waveguide is another component to check. It directs microwave radiation from the magnetron to the cooking area. Any blockages or damage in this area can lead to uneven heating or sparks. Make sure the waveguide is clean and free from any obstruction.
The diode is responsible for directing the current in one direction, allowing the unit to produce the necessary heat. A faulty diode can result in insufficient heating. If your device is not generating enough heat, check the diode for signs of damage or failure.
How to Identify and Replace a Faulty Magnetron
Begin by disconnecting the appliance from the power supply to ensure safety. Remove the outer casing to access the internal components. The magnetron is typically located near the high-voltage transformer and is connected by wires that should be carefully detached.
Inspect the magnetron for any visible signs of damage, such as burn marks, cracks, or blackened areas. A faulty magnetron may also emit a burning smell. If the component appears damaged or if the appliance fails to heat food, it’s likely time for a replacement.
To test the magnetron, use a multimeter to check for continuity. Place the multimeter probes on the terminals of the magnetron. If no continuity is detected, the magnetron is likely faulty and needs replacement.
When replacing the faulty unit, ensure the replacement magnetron is of the correct model and specifications. Carefully install the new magnetron, connecting the wires exactly as they were on the old one. Ensure all connections are secure to prevent electrical hazards.
Once the new magnetron is in place, reassemble the casing and plug the appliance back in. Test the unit to confirm it’s functioning properly and heating food as expected. Regular maintenance and prompt replacement of damaged components will ensure the appliance operates efficiently and safely.
Common Components and Their Functions Explained
Here are the primary components found in many home cooking appliances and their specific functions:
- Magnetron: This is the component that generates high-frequency electromagnetic waves that heat food. It transforms electrical energy into microwave energy for cooking.
- High-voltage Transformer: Steps up the voltage from a standard power outlet to the high voltage needed for the magnetron to function properly.
- Diode: Converts alternating current (AC) into direct current (DC), which is necessary for the magnetron to operate smoothly.
- Turntable Motor: Powers the rotating turntable, ensuring that food is heated evenly by rotating it during the cooking process.
- Fan Motor: Circulates air within the appliance, distributing heat evenly throughout the cooking cavity and preventing overheating.
- Control Board: Manages the appliance’s functions by controlling the power levels, cooking time, and other settings, based on user input.
- Thermal Fuse: Protects against overheating by shutting off power to the heating element if the temperature gets too high.
- Door Switch: Ensures the appliance does not operate unless the door is securely closed, protecting users from microwave radiation exposure.
- Waveguide: Directs the microwave radiation from the magnetron to the cooking chamber for even energy distribution.
Each component serves a specific role in the functioning of the appliance. Understanding their functions helps in diagnosing issues and performing necessary repairs.
