If you’re dealing with performance issues or mechanical failures, a detailed breakdown of your equipment can make repairs quicker and more straightforward. Identifying specific components and their functions will allow you to focus on the exact area that needs attention. Start by examining common areas such as the drive system, blade assembly, and engine components, as they are frequent sources of problems.

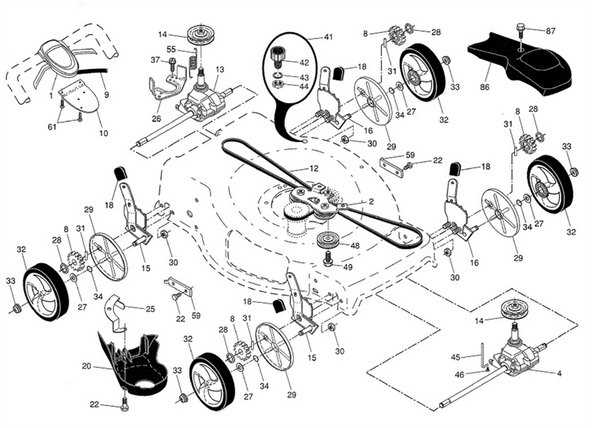

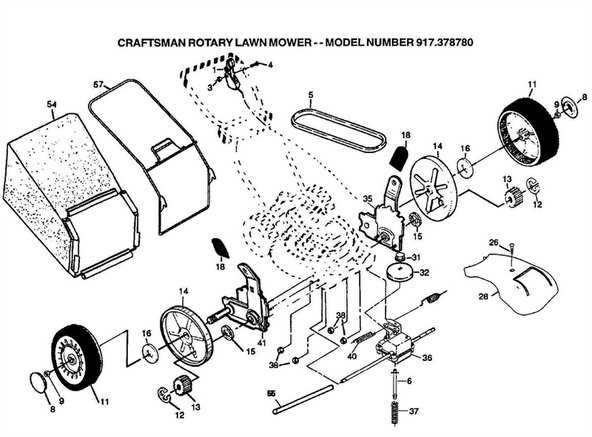

Check the user manual for a parts list or diagram, which will give you an exact reference of each element and help you locate the components causing issues. Knowing how to disassemble the equipment and understanding the role of each component will save you both time and frustration when diagnosing faults.
Always inspect moving parts like belts and pulleys first if you notice performance lags. These are commonly affected by wear and tear and may need either adjustment or replacement. Additionally, make sure to check the spark plug, air filter, and fuel system for any clogging or contamination that could hinder functionality.
Parts Breakdown and Repair Guide for Lawn Equipment
To begin repairing common issues, first identify the key components that could affect performance. Focus on the drive belt, blade assembly, and engine system as these are typically the main sources of malfunction. Regular inspection of the belts for wear or damage is critical, as a worn belt can lead to a loss of power and inefficient cutting.
Start by disconnecting the power source before performing any disassembly. Remove the deck to gain access to the blade and spindle assembly. Inspect the blade for damage, ensuring it is sharp and free from any dents or chips. If the blade is dull or damaged, replace it to ensure optimal performance.
Next, check the fuel system, including the fuel lines and filter. Ensure that the fuel lines are intact and that there are no cracks or leaks. Replace the fuel filter if it appears clogged or damaged. Clean the carburetor to prevent clogs and ensure the engine runs smoothly.
Finally, test the spark plug. A faulty spark plug can cause poor engine performance or failure to start. Replace the spark plug if it shows signs of wear, corrosion, or carbon buildup. If the equipment still does not start, further inspection of the ignition system may be needed to identify other potential issues.
How to Identify and Replace Common Components in Lawn Equipment
Start by checking the drive belt for any signs of wear, cracks, or fraying. If damaged, it can affect power transfer and the overall performance. To replace, loosen the tension on the belt, remove it, and install a new one of the correct size and type. Be sure to check the belt pulleys for any issues before reassembly.
The next common issue is the blade assembly. Over time, blades can become dull or even chipped, which affects cutting quality. Remove the blade by loosening the central bolt and check for any visible damage. If necessary, sharpen the blade or replace it with a new one. When reinstalling, make sure the blade is securely tightened.
The spark plug is another component that frequently needs replacement. A worn or dirty spark plug can prevent the engine from starting. Remove the spark plug and inspect it for wear, carbon buildup, or damage. Replace it with a new spark plug that fits the specifications of the engine for optimal performance.
Finally, inspect the air filter. A clogged or dirty filter can reduce engine efficiency and lead to overheating. Remove the filter, clean it, or replace it if it is too damaged. This is a simple yet important step to maintain proper airflow and prevent engine strain.
Step-by-Step Troubleshooting for Common Lawn Equipment Issues
If the machine doesn’t start, first check the fuel level and ensure it’s fresh. Old or contaminated fuel can prevent the engine from firing. If the fuel is old, drain the tank and refill with fresh gasoline. Next, inspect the spark plug for signs of wear or damage. Replace it if necessary.
If the engine starts but stalls, inspect the air filter for blockages. A clogged filter restricts airflow, which can lead to stalling. Clean or replace the filter if needed. Also, check the fuel line for any cracks or leaks, as these can disrupt fuel flow and cause the engine to cut out.
If the machine is making unusual noises, it’s important to check the blade. A bent or unbalanced blade can cause vibration and noise. Turn off the engine, remove the blade, and inspect it for any damage. Sharpen or replace the blade if needed. Additionally, ensure that the blade is securely fastened to avoid further issues.
If the machine fails to engage properly or lacks power, check the drive belt. A worn or loose belt can result in a loss of power or failure to engage. Inspect the belt for signs of wear and replace it if necessary. Make sure the tension on the belt is adjusted according to the manufacturer’s specifications.
