Connect the ignition system directly to the battery through a dedicated fuse block to prevent voltage drops and protect sensitive electronics. Ensure all terminals are clean and tightened to 20–25 in-lb torque to maintain consistent conductivity and avoid intermittent power failures.
Label each color-coded conductor clearly before routing them through the engine compartment. This minimizes cross-connection risks and simplifies future troubleshooting, especially in complex installations with multiple sensors and gauges.
Route signal lines away from high-current circuits to reduce interference with navigation instruments. Twisting paired wires and using split loom tubing can lower electromagnetic noise, enhancing gauge accuracy and preventing false readings during operation.
Secure every connector with proper locking mechanisms to prevent vibration-induced loosening. Using dielectric grease on exposed contacts further resists corrosion from saltwater exposure, extending the lifespan of the electrical network and ensuring reliable starts.
Verify continuity of all circuits with a multimeter before final assembly. Testing each path under load ensures that switches, relays, and indicator lights function correctly, reducing the likelihood of electrical faults on the water and improving operational safety.

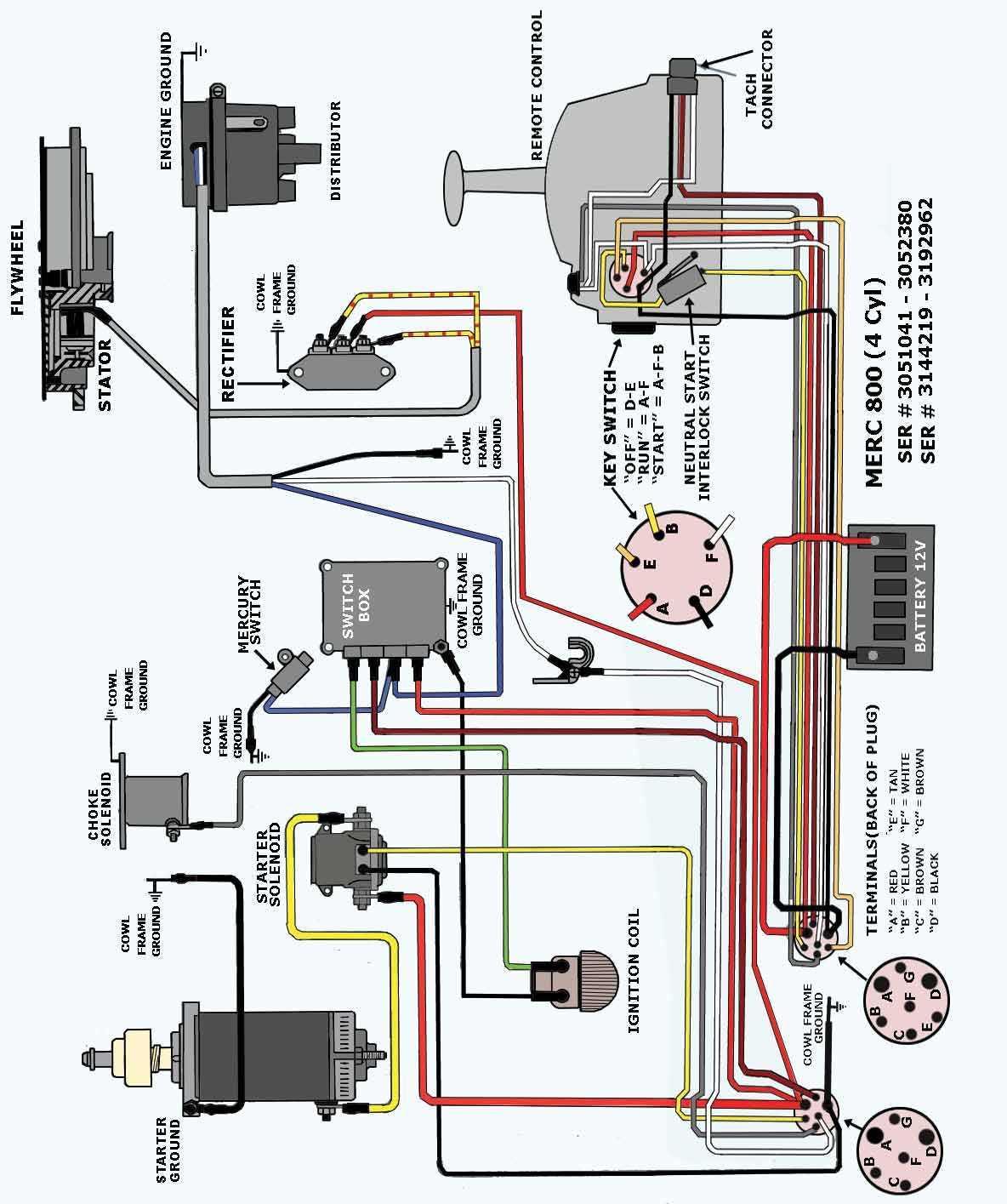

Mercury Engine Electrical Connection Layout
Locate the ignition wire colored red with a yellow tracer; it must connect directly to the starter solenoid for reliable cranking. Avoid routing it near high-heat areas to prevent insulation damage.
The tachometer signal wire, usually grey or purple, should run separately from the battery cable to reduce interference. Secure it with clips every 12 inches to maintain clean signal flow.
For charging circuits, the stator output line often marked with white or blue must be connected to the rectifier-regulator unit. Ensure all terminals are corrosion-free and torqued to 7–9 in-lb.
Neutral safety interlock wiring must be checked for continuity using a multimeter. A single loose terminal can prevent engine start or create intermittent safety faults.
Fuel pump relay connections are frequently green with a black stripe. Verify polarity before powering the pump, as reverse connection may cause permanent diode failure inside the module.
- Check all ground straps at the transom and block plate for oxidation.
- Replace any brittle wires immediately to prevent shorts.
- Use dielectric grease on all terminal connections exposed to saltwater.
Shift and throttle control lines often have integrated micro-switches. Confirm the connector colors against the service manual: mismatched lines can trigger engine alarms or erratic throttle behavior.
When adding auxiliary instruments like GPS or depth sounder, route their power leads through fused circuits separate from the ignition and alternator lines to avoid voltage drops or erratic readings.

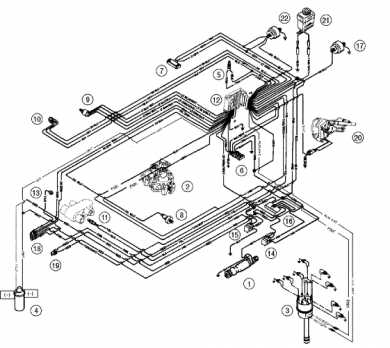

Identifying Each Wire in a Mercury Outboard Harness
Locate the main power lead first; it is usually the thickest red wire, connecting directly to the battery positive terminal. This line feeds voltage to the ignition system and primary circuits.
Ground connections are often black or brown and attach to the engine block or battery negative. Check for corrosion or loose clamps, as poor grounding causes intermittent faults and misfires.
Starter solenoid wires are typically smaller gauge than the main power feed, often yellow or green. Follow them from the ignition switch to the solenoid; continuity testing with a multimeter confirms proper routing.

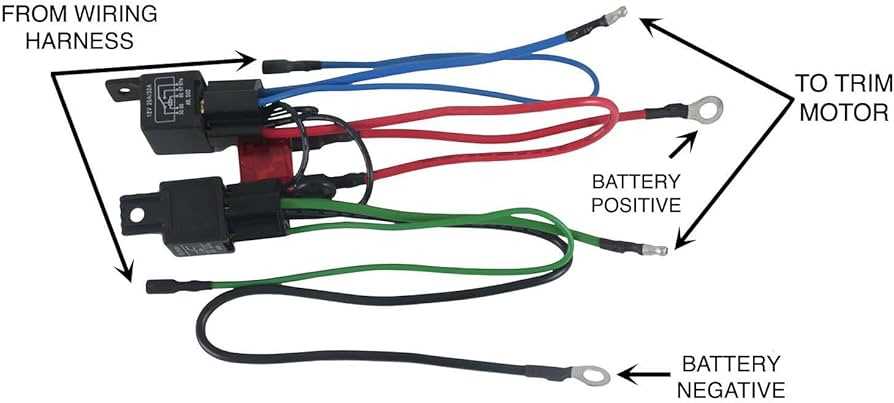

Trim and tilt functions have blue or violet wires running from the helm control to the motor actuators. Label each end before disconnecting to prevent misalignment during reassembly.
Signal wires for tachometer and engine sensors are thin, shielded, and often gray or white with a tracer stripe. Use the pinout chart stamped on the control module to identify sensor circuits without guesswork.
Auxiliary circuits
Accessory lines such as bilge pumps or navigation lights typically run in brown or orange cables. Verify each wire with a test light, marking them individually to match their respective connectors.
Connector inspection
Examine all multi-pin plugs for bent or corroded terminals. A loose wire in a connector may appear intact but cause voltage drops; gently tug each wire to ensure it is fully seated in its terminal.
