Turn off power at the breaker panel and confirm zero voltage in the wall box before connecting the occupancy control device. Use a voltage tester to check both the incoming hot conductor and the load line going to the ceiling fixture. Most installations operate on 120V AC, and contact with live conductors can damage electronics inside the wall control unit.
Identify the three primary conductors inside the box. The line conductor carries power from the breaker, the load conductor runs toward the ceiling lamp or fan, and the neutral bundle usually consists of several white wires tied together with a wire connector. The control unit uses these connections to detect presence and energize the lamp automatically.
Attach the incoming hot line to the black lead from the control device and connect the red lead to the load conductor that feeds the fixture. The white lead from the control unit connects to the neutral bundle. Many installations also include a green grounding conductor attached to the metal wall box or grounding wire in the cable.
Wire identification remains the most frequent installation issue. The line conductor often appears black or dark brown, while the load conductor may be red or another black lead leaving the box. Neutral conductors normally appear white. If multiple cables enter the wall box, trace each conductor using a tester before attaching the control device.
Mount the control unit at a height of about 1.1–1.2 meters above the floor. This position allows the infrared detection lens to monitor movement across the room entrance and walking path. Avoid pointing the lens toward heating vents, direct sunlight, or ceiling fans that produce shifting heat patterns.
Lutron Motion Sensor Switch Wiring Diagram with Line Load and Neutral Connections
Disconnect power at the breaker panel and confirm the wall box conductors carry 0 volts before attaching the occupancy control device. Use a non-contact tester or multimeter across the hot and neutral conductors. Residential installations usually operate on 120V AC, and connecting the device while energized can damage internal electronics.
Identify three primary conductors inside the wall box before making connections. The incoming hot line brings power from the breaker, the load conductor runs toward the ceiling fixture, and the neutral group usually appears as several white wires connected with a wire connector. The presence-activated wall control needs both line and neutral to power its detection electronics.
Line and load conductor connections
Attach the incoming hot conductor to the black lead from the control unit. Connect the red lead to the conductor going to the lamp or ceiling fixture. This red conductor carries power only after the device detects body heat movement within the monitoring area. The white lead from the control device connects to the neutral bundle inside the wall box.
Secure the green grounding conductor from the device to the grounding wire or the metal box. Grounding prevents internal electronics from floating above reference potential and reduces interference with the infrared detection module.
Wall box layout and mounting position
Position the device at a height close to 1.1–1.2 meters above floor level. The detection lens should face the path where people enter the room. Typical detection coverage reaches 7–9 meters with a horizontal field around 90–120 degrees depending on the model.
Avoid pointing the detection lens directly toward windows receiving strong sunlight or toward HVAC vents. Rapid temperature changes from airflow or sunlight can trigger repeated activation cycles. Keep conductor lengths short inside the wall box and secure connections with insulated wire connectors rated for the conductor gauge.

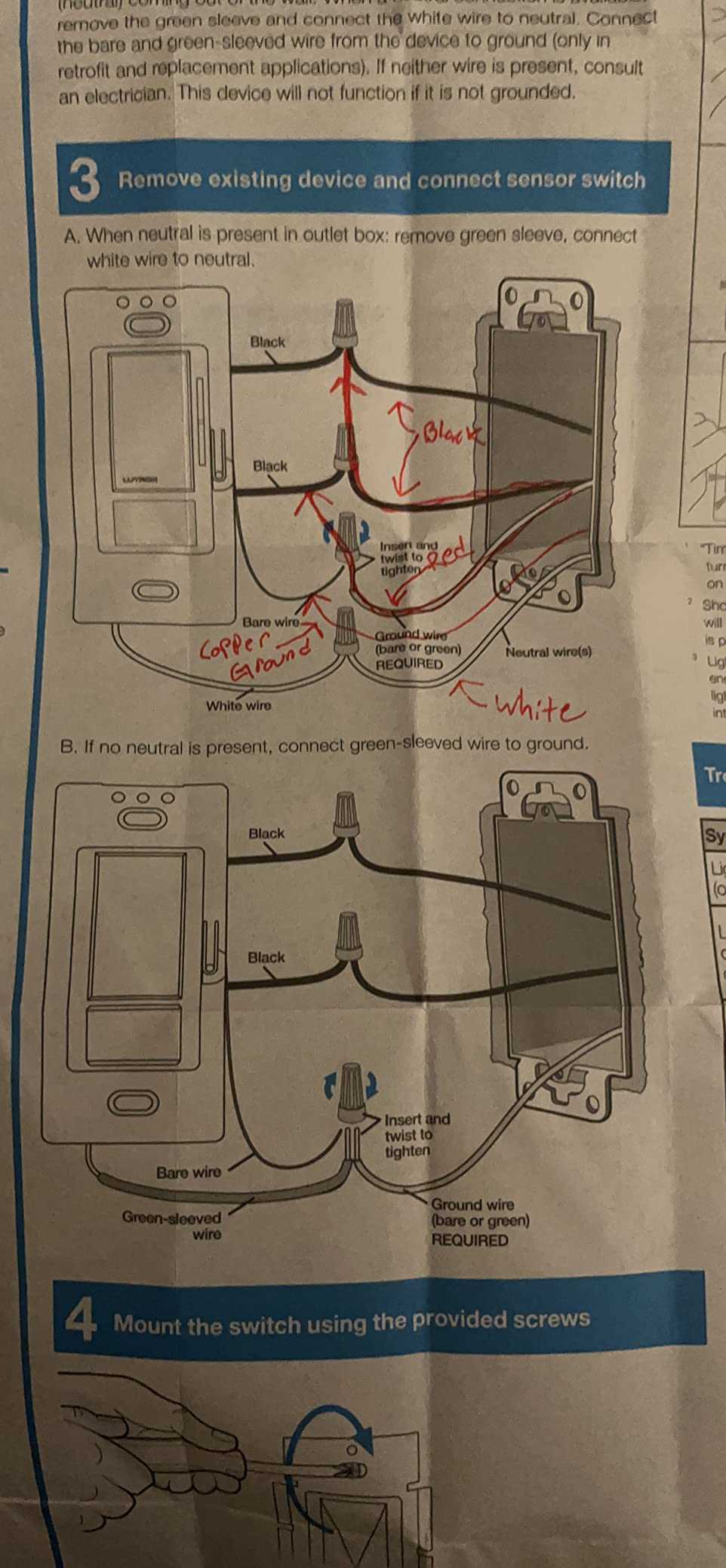

Line load and neutral wire connections for Lutron motion sensor wall switches
Turn off the circuit breaker and verify the wall box conductors show 0V between hot and neutral before attaching the occupancy detection control. Connect the incoming line conductor from the breaker to the black lead of the wall device, and attach the load conductor leading to the ceiling fixture to the red lead. The white lead from the unit must join the neutral bundle already present in the box. Without a neutral return path, the internal electronics that operate the infrared detection module cannot receive stable power.
Use a multimeter to confirm conductor roles before attaching connectors, because some boxes contain multiple cables feeding additional rooms. The hot feed typically measures about 120 volts relative to neutral, while the load conductor shows voltage only when connected through the control device. Keep wire insulation intact and secure all joints using UL-rated wire connectors sized for 14 AWG or 12 AWG copper conductors. Attach the green grounding lead from the device to the bare copper grounding conductor or metal box. Maintain short conductor loops inside the box so the unit sits flat against the wall plate and heat buildup around internal electronics stays low.
