Connect the main feed line from the circuit breaker directly to the terminal block using a 15-amp fuse. Verify that all connections are clean, tight, and free of corrosion to maintain stable current throughout the system.
Identify each lead by color code before attachment: black for hot, white for neutral, and green or bare for ground. Use a multimeter to confirm continuity and prevent misconnection that could cause shorts or equipment failure.
Use existing harnesses or conduit paths where possible to preserve safety circuits and simplify routing. Align each conductor with its corresponding screw terminal and tighten securely without over-torquing to avoid damage to insulation or connectors.
Secure all cables with clips or zip ties and route them away from heat sources or moving parts. This prevents wear on insulation, reduces electrical noise, and maintains long-term reliability of all circuits.

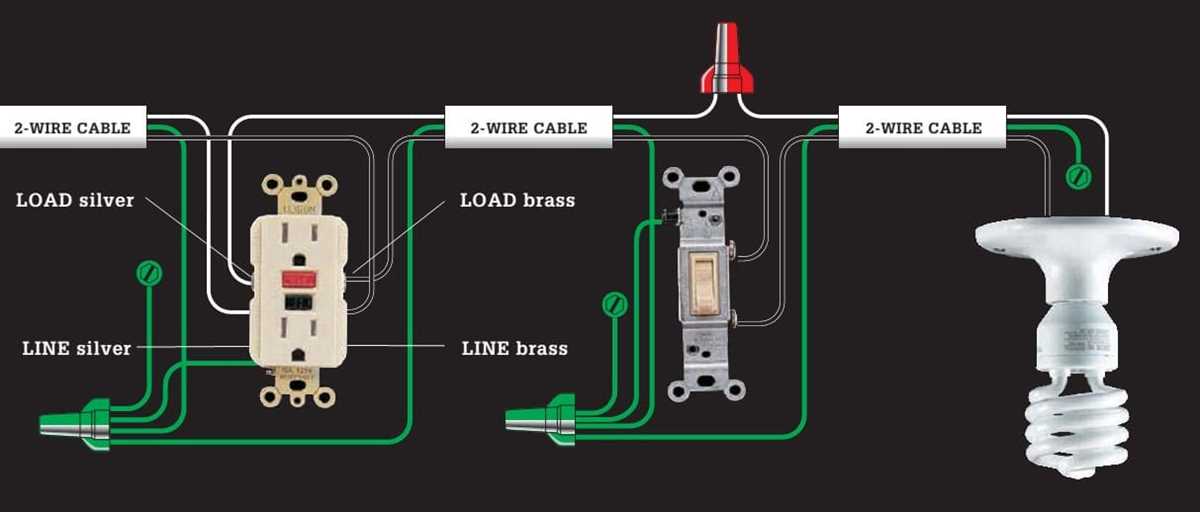

Light Switch and Outlet Connection Guide
Attach the primary hot conductor from the breaker panel to the terminal post using a properly rated screw or clamp. Confirm that the connection is secure and free from oxidation to maintain stable current flow.
Identify neutral and ground lines by color: white for neutral and green or bare for ground. Use a continuity tester to ensure correct placement before fastening to prevent reverse polarity or grounding faults.
Route control lines through existing conduit or protective channels. Keep power and signal conductors separated to minimize interference and avoid accidental shorts between circuits.
Secure all connections with terminal screws and check for tightness without over-torquing. Loose connections can cause intermittent power loss, flickering, or overheating at junction points.
Test each circuit individually after installation. Apply voltage, operate each device, and measure terminal voltage to verify that all receptacles and control points receive proper current and respond correctly.
Identifying Power and Ground Leads for Switches
Test the incoming conductor with a multimeter to confirm it carries the live current. Label the wire immediately to avoid confusion during attachment to the terminal posts.
Check the return path for continuity. The neutral lead should show minimal resistance when measured against the ground bus to verify proper connection.
Color coding is critical:
- Black or red indicates hot conductors.
- White indicates neutral.
- Green or bare copper represents grounding paths.
Separate all leads before insertion into terminals to avoid accidental shorts. Maintain at least half an inch clearance between live and ground conductors.
Secure ground connections first. Tighten screws to the manufacturer’s torque specification, ensuring a stable earth path that prevents stray currents.
Use continuity testing to confirm each hot line is correctly paired with its respective neutral. Document each connection to simplify troubleshooting later.
Inspect insulation for nicks or wear along the conductor. Damaged areas should be stripped and replaced with new sections to prevent arcing or accidental shock.
Finally, route all conductors neatly within the enclosure using cable clamps. Avoid crossing power and neutral lines unnecessarily to minimize electromagnetic interference and improve safety.
