To design a protection setup using infrared beams, start by understanding the basic flow of current and the components involved. A light source, such as a laser module, works in conjunction with a detector that triggers an alarm when the beam is interrupted. This is the core concept behind many modern alarm systems.
Choose the right components for building the network, such as photodiodes, resistors, and transistors. The photodiode detects interruptions in the beam, which changes the current flowing through the circuit. This change is then processed by a microcontroller or a simple relay to activate the response mechanism like an alarm or light.
Ensure precise alignment of the light emitter and the sensor. A misalignment could result in false triggers or missed activations. The stability of the components and the correct placement of the emitter and receiver are paramount for reliability. Start by testing the basic circuit in a controlled environment before installing it in a permanent setup.

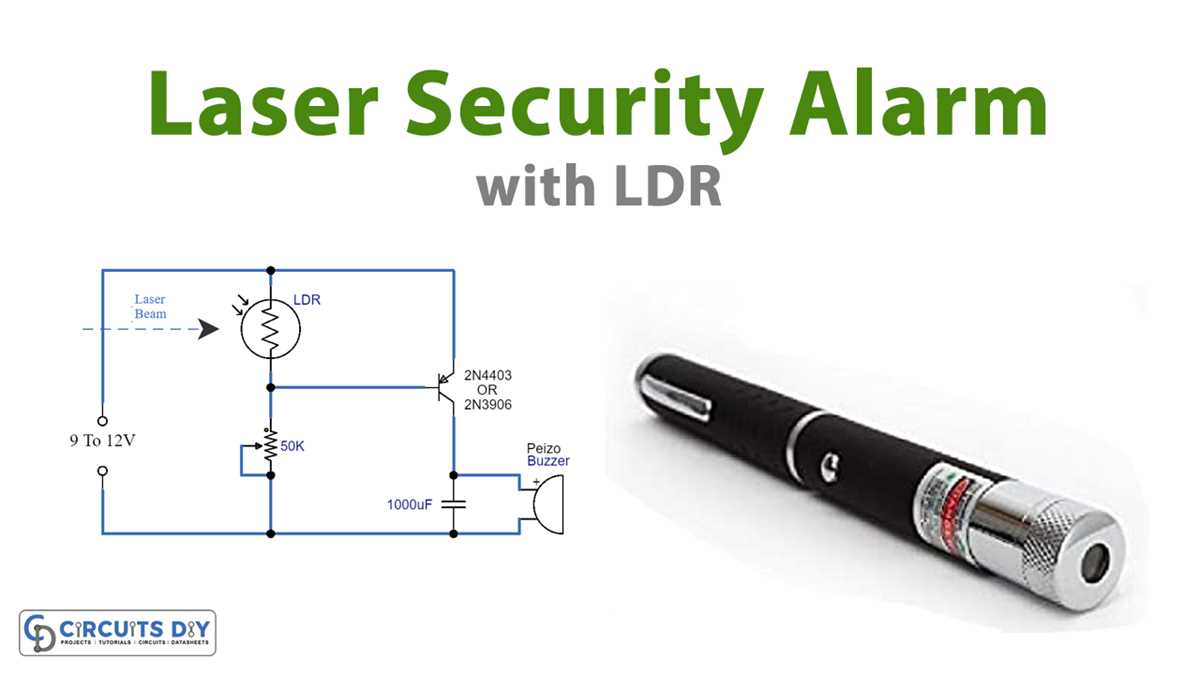

Laser Security System Circuit Diagram
For a simple protection setup, begin with selecting a reliable infrared emitter and receiver pair. These components are key for detecting intrusions. Ensure the beam from the emitter is aligned directly with the sensor to avoid errors. Any break in the beam triggers an alarm, which can be linked to other response mechanisms like lights or sirens.
Choose the right photodiode to accurately detect the interruption. Photodiodes are commonly used because they quickly respond to changes in light intensity. Match the photodiode’s sensitivity to the distance between the emitter and the receiver. This ensures the system works reliably even at longer ranges.
To handle the interruption signal, a transistor can be used as a switch. Once the light beam is interrupted, the change in the photodiode’s current flow can be used to activate the transistor. This setup is ideal for controlling higher-voltage devices, such as alarm systems or lights, which are commonly used in such configurations.
Test the alignment regularly of the emitter and receiver to avoid false alarms. Minor shifts in position can cause the beam to misalign, leading to failures in detection. A small bracket or mount can help stabilize the components and ensure they maintain their alignment over time.
Incorporate a microcontroller if you wish to add more functionality. A microcontroller can be programmed to track multiple light barriers, log data, or send notifications when an interruption occurs. This makes the setup more adaptable, allowing you to expand beyond basic detection to more advanced security measures.

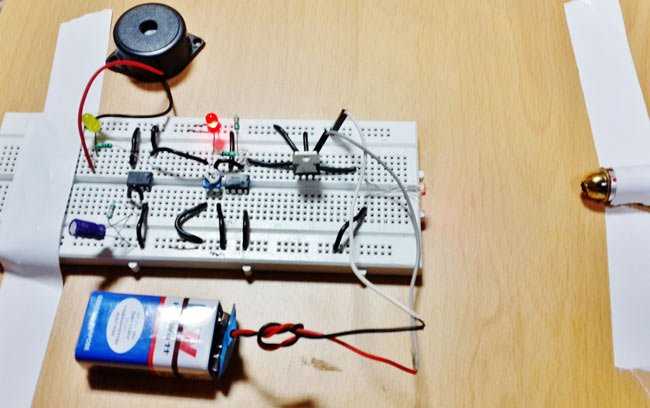

How to Build a Basic Laser Security System Circuit
To build a simple protection setup, begin by gathering the necessary components. You will need an infrared light emitter, a photodiode, a transistor, a power source, and a relay for activation. The emitter sends out a beam of light, and the photodiode detects any interruption to this beam.
Step 1: Set up the Light Source and Receiver
The first step is to position the infrared emitter and receiver. Mount the emitter at one end of the area you want to monitor, and place the receiver at the opposite end, ensuring the light beam is unobstructed. The receiver should be aligned perfectly with the emitter for accurate detection.
Step 2: Choose the Right Photodiode
The photodiode plays a critical role in detecting changes in light intensity. Select a photodiode that is sensitive to the specific wavelength emitted by the light source. The higher the sensitivity, the more reliable the detection will be.
Step 3: Integrating the Transistor
Next, connect the photodiode to a transistor. The photodiode will change the current passing through it when the light beam is interrupted. This change will be detected by the transistor, which will act as a switch to control other components, such as an alarm or light.
Step 4: Powering the Components
Ensure that the power supply is sufficient for all components. A 5V or 12V power supply is typically suitable for most low-power setups. Connect the emitter, photodiode, and transistor to the power source while ensuring proper voltage levels to avoid damage.
Step 5: Adding a Relay for Activation
To activate an external device, such as an alarm or light, use a relay. The transistor, when triggered, will activate the relay, allowing a higher current to flow to the alarm. The relay acts as a switch to control the flow of electricity to the external device.
Step 6: Test the Setup
Once everything is connected, it’s time to test the setup. Turn on the power and test the alignment of the emitter and receiver. Interrupt the beam to check if the relay activates the alarm. Fine-tune the alignment if necessary to ensure accurate detection.
Step 7: Mounting the Components
Once the system is tested and working as expected, mount the components in their final positions. Use brackets or supports to secure the emitter and receiver in place. Ensure that the wiring is tidy and that no loose connections could cause a malfunction.
Step 8: Troubleshooting
- If the system fails to detect interruptions, check the alignment of the emitter and receiver.
- If the relay doesn’t trigger the alarm, verify the power supply and connections to the relay.
- If the photodiode is not responding, try using one with higher sensitivity or adjust its position.
