Connect the positive terminal of the DC power source directly to the armature input of the rotary drive unit through a control switch or relay. Attach the negative terminal to the return lead of the device. This basic electrical path allows current to pass through the armature winding and produce rotational motion.
Most small rotary drive units operate from 6 V, 12 V, or 24 V sources. Select conductors sized for the expected current draw; compact units may require only 0.75–1.5 mm² copper leads, while larger drives may draw several amperes and require thicker conductors. Stable voltage at the armature terminals maintains consistent rotational speed.
Install a protective fuse between the power source and the control switch to guard against short circuits. A fuse rating slightly above the nominal current draw of the drive unit prevents overheating of the conductors during fault conditions. For example, a small 12 V drive unit drawing 3 A normally uses a fuse rated between 4 A and 5 A.
Reversing polarity across the armature terminals changes rotation direction. This feature allows simple directional control through a double-pole reversing control device. Verify polarity with a multimeter before applying voltage to avoid unintended rotation during installation.

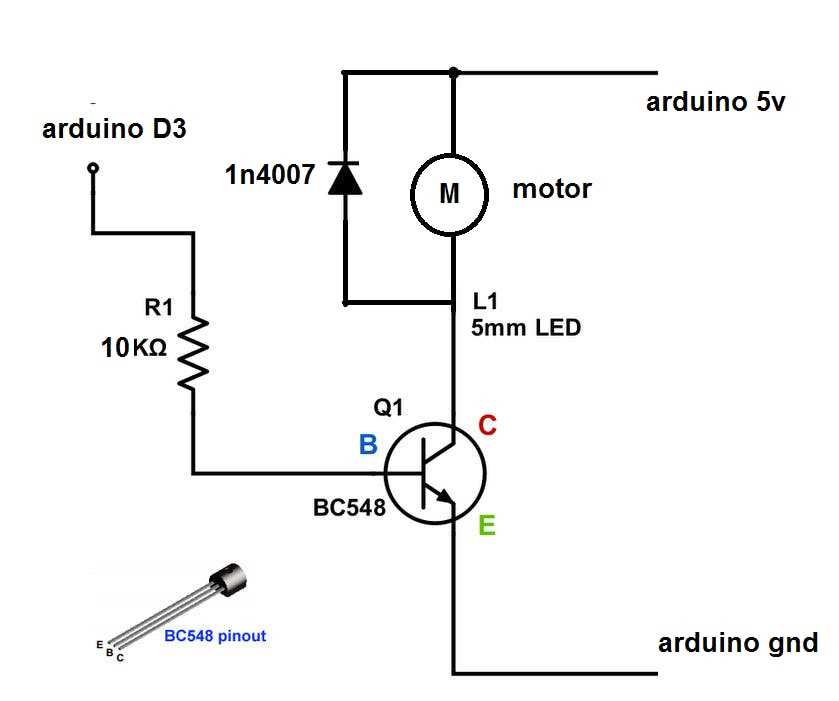

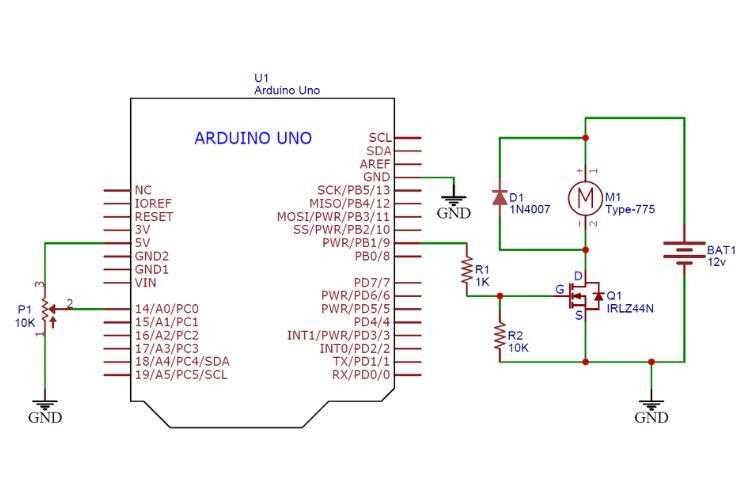

DC Motor Circuit Diagram with Power Supply Control and Connection Layout
Connect the positive terminal of the DC power source to the input of the rotary drive unit through a control device such as a relay or manual toggle. Attach the negative terminal directly to the return lead of the drive unit. This electrical path allows current to pass through the armature winding and generate rotational force.
Place a protective fuse between the power source and the control device. For small drives operating on 12 V with current consumption around 3–5 A, install a fuse rated between 5 A and 7.5 A. Larger drives used in robotics or automation may require protection above 15 A.
Keep the supply path short and use conductors with proper cross-section. Copper leads sized between 1.5 mm² and 2.5 mm² handle most small rotary drives without excessive voltage drop. Thinner conductors increase resistance and reduce shaft speed under load.
Install the control device on the positive supply line. When the control contact closes, voltage reaches the armature terminals and the shaft begins to rotate. Opening the contact interrupts current flow and stops rotation.
Direction of rotation depends on polarity across the armature terminals. Reversing the positive and negative connections changes the magnetic field interaction inside the drive unit and rotates the shaft in the opposite direction.
Directional control often uses a double-pole reversing device. This device swaps polarity applied to the armature leads without reconnecting the power source.
Measure voltage at the armature terminals while the drive operates. The measured value should remain close to the rated supply value, typically 6 V, 12 V, or 24 V depending on the unit.
Loose terminals, oxidized connectors, or undersized conductors reduce current flow and lower torque output. Tighten terminal screws and inspect connectors periodically to maintain stable rotation under mechanical load.
Power source and polarity connection in a DC motor circuit diagram
Connect the positive terminal of the DC supply directly to the armature input of the rotary drive unit through a control device or relay. Attach the negative terminal to the return lead connected to chassis ground or the power supply return. This polarity arrangement allows current to flow through the internal winding and create rotational force.
Typical power supply sources
Rotary drive units operate from several DC supply types depending on application.
- Rechargeable battery packs used in robotics and portable equipment
- Regulated DC power supplies in laboratory setups
- Automotive battery systems rated at 12 V
- Industrial supplies rated at 24 V
Match the voltage rating of the drive unit with the power source. Applying higher voltage increases current through the armature winding and may overheat internal insulation.
Polarity and rotation direction
Direction of shaft rotation depends on how the positive and negative leads attach to the armature terminals.
- Positive lead to terminal A and negative to terminal B rotates the shaft in one direction
- Reversing the leads swaps magnetic field orientation
- The shaft rotates in the opposite direction after polarity reversal
Confirm polarity using a multimeter before energizing the device to avoid unexpected motion during installation or testing.
