Start by ensuring the power supply is properly connected to the appliance. The main power line should be connected to the input terminal, which typically provides 120V or 220V, depending on your location. Confirm the voltage level before making any connections to avoid damaging the components.
Next, connect the heating element. This is the most crucial part of the installation, as it directly influences how the appliance generates heat. The element should be linked securely to the power source, and the terminals must be tightly fastened to prevent overheating or electrical issues.
Finally, ground the system to ensure safety. A dedicated ground connection helps prevent electrical faults and reduces the risk of shocks. Verify the ground wire is connected correctly to both the heating element and the power terminal to ensure proper function and safety during use.

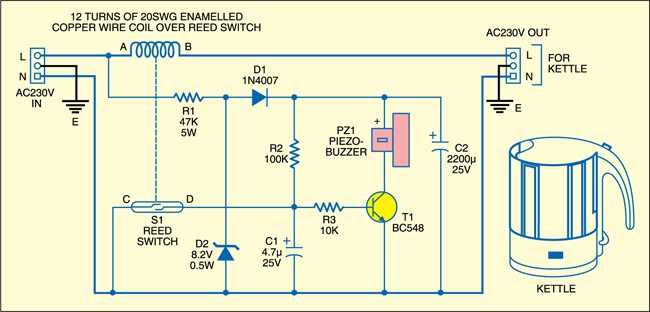

Kettle Circuit Diagram
When setting up the electrical connections, start by securely attaching the live wire to the appropriate terminal. This connection should be made with a strong grip to ensure it doesn’t loosen over time. The live wire typically carries the power to the appliance, so a stable connection is necessary for consistent operation. Verify the voltage and current rating to match your appliance specifications.
Grounding and Safety
Next, focus on grounding the unit correctly. This wire, often green or bare, prevents electrical faults from becoming a danger. Make sure it is firmly connected to the appliance’s metal body and the grounding terminal in the junction box. A well-grounded system ensures that any electrical surges or failures are safely redirected, protecting both the user and the appliance.
How to Connect the Power Supply to a Kettle Circuit
Start by turning off the main power supply at the breaker to ensure a safe installation process. Use a voltage tester to confirm that no power is flowing through the lines before making any connections.
Next, connect the live wire to the appliance’s input terminal. Typically, this wire is black or red and carries the current from the power source to the device. Ensure that the terminal is tightened securely around the exposed copper wire to prevent any loose connections that could lead to malfunction or fire hazards.
Neutral Wire Connection
After securing the live wire, proceed to connect the neutral wire. This is usually white and completes the electrical loop by carrying the current back to the power source. Strip a small section of insulation from the wire and connect it to the neutral terminal in the junction box or appliance. Be sure that the connection is firm and no strands are left exposed.
Double-check all wire connections to ensure they are correctly matched and tightly secured. A loose or incorrect connection could lead to faulty operation or even electrical hazards. Always refer to the manufacturer’s guidelines for specific wiring instructions related to your device.
Grounding the Appliance
Finally, connect the ground wire to ensure safety. This wire, often green or bare, directs any stray electricity safely to the ground in case of a fault. Attach the ground wire to the ground terminal in the appliance and the junction box. Make sure it is securely fastened to prevent any risk of electrical shock or damage.
