Locate the main distribution panel and identify each breaker clearly. Labeling each line according to the rooms or appliances it serves prevents confusion during repairs or upgrades and ensures safe operation.
Trace all outlets and lighting points with a continuity tester before making changes. This identifies hidden connections behind walls and avoids accidental overloads or short circuits when adding new devices.
Plan connections based on load requirements. High-demand appliances like ovens or water heaters need dedicated lines with appropriate amperage. Calculate total wattage per line to prevent frequent tripping and overheating.
Verify grounding and bonding for every branch. Improper grounding can cause voltage fluctuations and increase risk of shock. Use a tester to confirm that all metal boxes and conduit are properly bonded to the main panel.
Document each link and branch with notes or a sketch. Keeping an up-to-date record of all connections allows for faster troubleshooting, future expansions, and ensures compliance with safety standards.

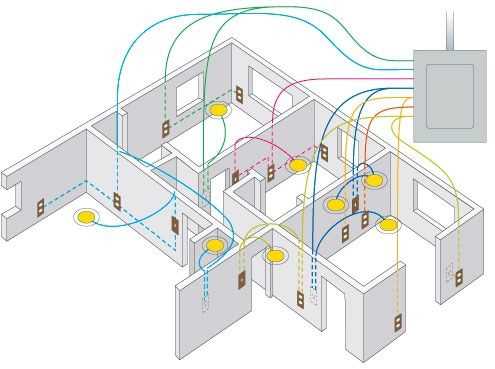

Residential Power Layout Guide
Identify the main panel and breakers and label each line with its load designation. Dedicated lines for high-demand appliances like ovens or heaters should be marked clearly and run with the correct gauge wire to handle the required amperage.
Mapping Out Outlet and Lighting Lines
Trace all outlets and lighting fixtures using a continuity tester before making modifications. Note the path of each line to prevent overloading any single branch and to ensure proper distribution across multiple rooms. Keep connections organized and labeled for easy maintenance.
Testing and Securing Connections
Check every connection for continuity and grounding using a reliable tester. Tighten all terminals and verify that metal boxes and conduit are properly bonded to the main panel. Document the configuration for future reference to simplify troubleshooting and expansions.
Identifying Main Panels and Circuit Breakers
Locate the primary distribution panel and inspect each breaker for labeling. Assign each switch to its corresponding line or room, ensuring that high-load appliances like water heaters or ovens have dedicated breakers with the correct amperage rating to prevent overheating or tripping.
Verifying Safety and Accessibility
Check that all breakers are accessible and free from obstructions. Confirm that the panel is grounded properly and that neutral and ground bars are secured. Use a voltage tester to verify power presence and ensure each breaker responds correctly when toggled.
