Ensure the live conductor is correctly identified before making any terminal connections. Connect the hot line to the input side of the control device and verify continuity with a voltage tester.
The neutral conductor should run directly to the load point without passing through the control mechanism. Maintaining separation between the input and return lines reduces risk of short circuits and ensures consistent operation.
Grounding must be secured to the metallic housing of the enclosure. Use a dedicated earth wire connected to the mounting bracket or grounding terminal to prevent electrical hazards and provide a reliable path for fault currents.
Label each conductor according to its function before final installation. Proper identification of terminals allows for safer modifications and simplifies future maintenance, especially in multi-point installations.

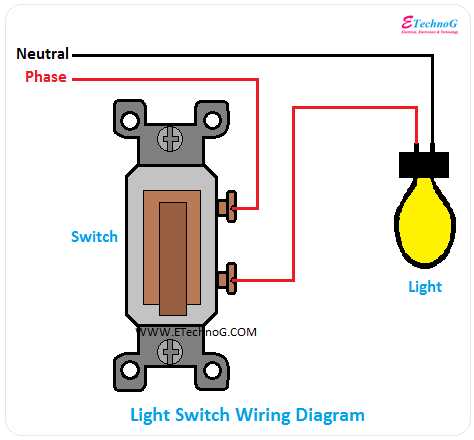

Basic Light Switch Connection Layout and Terminal Guide
Start by identifying the input and output terminals on the control device. Connect the incoming live conductor to the designated input terminal and secure it firmly to prevent loose contact, which can cause sparking or intermittent operation.
The return line must attach directly to the load point. Ensure the neutral path bypasses the control mechanism to maintain proper flow and avoid unnecessary resistance that could reduce performance.
Terminal Identification and Connection Tips
- Input terminal: receives the main supply line; verify with a voltage tester before connection.
- Output terminal: connects to the load conductor; tighten screws to manufacturer torque specification.
- Ground terminal: attach to metal enclosure or dedicated earth wire for safety.
When installing multiple units in series, mark each conductor clearly. Color coding or labeling terminals prevents mistakes during future maintenance and reduces risk of cross connections.
Identifying Live Neutral and Ground Wires for Single Pole Switch
Connect the live conductor to the terminal marked for incoming current. Use a non-contact voltage tester to confirm which wire carries active voltage before making any connections, ensuring safety and proper functionality.
The neutral wire should be routed directly to the load side without passing through the control point. Verify continuity with a multimeter to prevent unintended interruptions or circuit imbalance that can affect operation.
Ground Wire Identification
- Locate the bare or green-insulated conductor connected to the grounding terminal of the metal enclosure.
- Ensure the earth connection is secure and continuous to reduce risk of electric shock or equipment damage.
- Label each conductor clearly for maintenance to prevent accidental misconnection during future inspections.
