Hoover WindTunnel Parts Diagram Guide

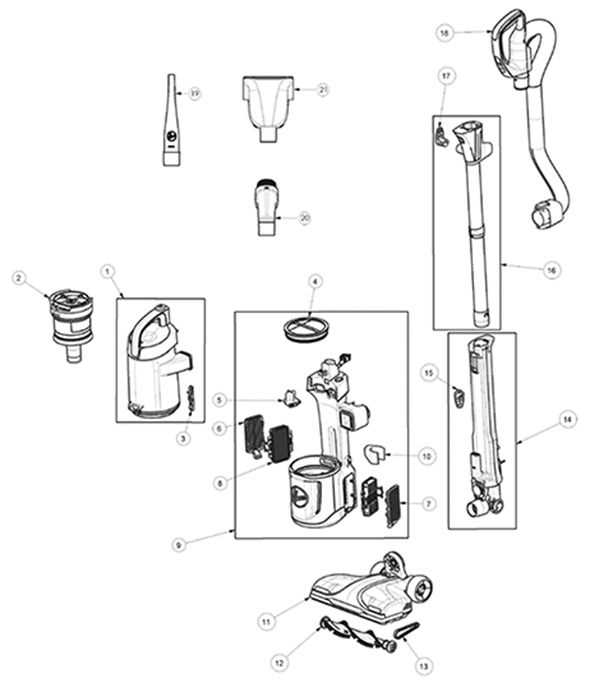

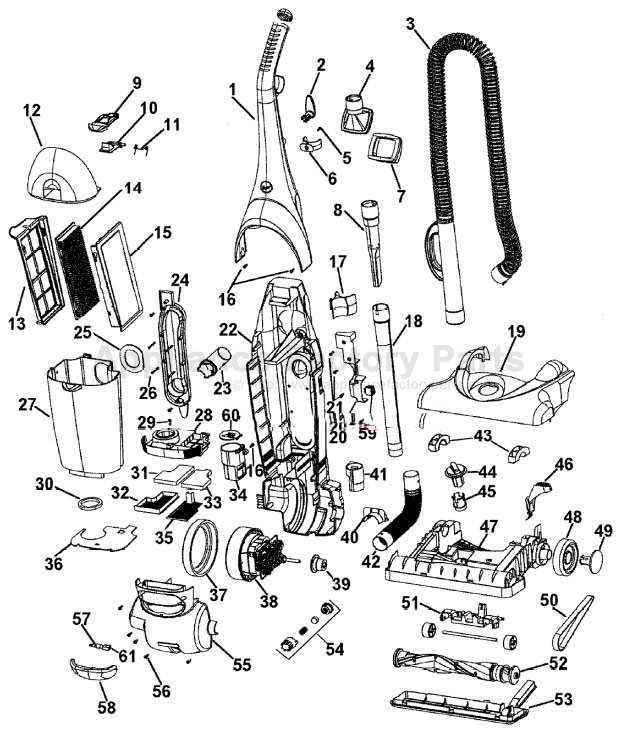

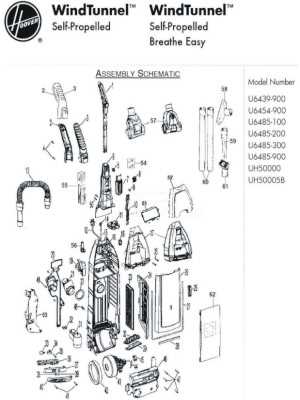

For precise identification and replacement of damaged or worn components, refer to a clear visual reference of all unit components. This will help you quickly pinpoint any broken part that needs attention. Common issues often arise with brushes, belts, filters, and motor housing, so a diagram that highlights each part’s position is key for fast troubleshooting.
Ensure you are aware of the model number of your vacuum cleaner before purchasing any replacements, as many models use slightly different components. This reference can guide you through disassembly and reassembly without confusion, making the process straightforward and saving you time on repairs.
Regular cleaning and maintenance are vital. Check if the vacuum brush, filters, or hose connections need cleaning or replacing to restore suction power. Keeping an eye on these areas ensures your appliance continues working at peak performance.
How to Identify and Replace Common Hoover WindTunnel Components
Begin by inspecting the brush roll, which often becomes clogged with hair or debris. To replace, detach the brush housing and carefully remove the old brush. Align the new brush with the housing and snap it into place. Ensure it rotates freely before reassembling the unit.
Check the filters for blockages or discoloration. A clogged filter reduces suction power and must be replaced regularly. Remove the filter cover and extract the old filter. Insert the new one, making sure it fits snugly within the compartment. Washable filters can be cleaned according to the manufacturer’s instructions.
If suction power is weak, inspect the hose for any obstructions or tears. Detach the hose from the main body, and clear any debris. For damaged hoses, simply replace them by disconnecting the old one and connecting the new one in the same manner.
The belt that drives the brush roll may wear out over time. To replace it, locate the belt compartment, remove the old belt, and install the new one by threading it around the motor pulley and brush roll. Make sure the belt is taut and operates smoothly when reassembled.
Step-by-Step Assembly Instructions for Hoover WindTunnel Vacuum
First, connect the handle to the main body by aligning the slots on both pieces. Gently slide the handle into place until you hear a click, ensuring it is securely locked in.
Next, install the lower hose by attaching it to the vacuum base. Insert the hose connector into the designated port and twist it to lock it in place.
Proceed by attaching the brush roll to the front of the vacuum. Place the brush roll into the slot, making sure the ends fit into the brush bearings. Secure it by inserting the retaining pins or clips as needed.
Install the dust bin or canister by aligning it with the main body and sliding it into the compartment. Ensure that it clicks into position, ensuring it is fully seated.
Next, attach the filter. Open the filter compartment and place the filter in the designated slot. Ensure that it fits tightly and securely within the housing.
Finally, check the power cord. Insert it into the designated slot for cord storage. Test the vacuum to ensure that all components are functioning properly and that there are no loose parts.
