Use a labeled exploded view before touching any fastener: it shows the pressure head assembly, crankcase block, valve plate, and hose junctions with exact placement, preventing reversed seals and stripped threads during service. For units from the B brand, the layout usually separates the drive section from the pressure chamber, making fault isolation faster.
Match component codes on the schematic to the data plate on the tank frame to avoid mismatched rings, gaskets, or relief hardware. Pay close attention to bore diameter, stroke length, and fastener pitch; a 1–2 mm mismatch can cause heat buildup or pressure loss. Exploded layouts often list torque ranges for head bolts and cover screws, which helps maintain sealing integrity.
Trace the flow path on the layout from intake filter through the valve stack to the storage vessel. This reveals common failure points such as reed fatigue, warped plates, or cracked outlet couplers. Replacing wear items in sets–seals, reeds, and spacers–reduces repeat teardown and stabilizes output pressure.
Keep a printed schematic at the bench and mark completed steps with a pen. This simple practice prevents skipped washers and misaligned bearings during reassembly. For long-term upkeep, note revision numbers on the layout; manufacturers update internal geometry across production runs, and using the correct revision avoids fitment surprises.
Component Layout for a Popular Red Pneumatic Unit
Use the exploded layout to trace the pressure path before ordering replacements; this prevents mismatched fittings and wasted downtime.
The visual layout map shows how each module connects inside the pump assembly, allowing fast fault isolation during service. Reading it from the drive side toward the outlet reveals the flow sequence and load points.
- Drive module: motor, crank, and rod placement clarifies vibration sources.
- Compression chamber: cylinder, piston ring, and valve plate orientation shows sealing order.
- Pressure control set: regulator, relief valve, and gauge routing indicates safety limits.
- Lubrication path: oil splash zones and breather location reduce overheating risks.
- Storage vessel links: check valve position prevents backflow during shutdown.
When selecting replacements, match reference numbers from the layout map with production codes stamped on each component. This avoids tolerance conflicts between early and later revisions.
- Identify the symptom and mark the related zone on the exploded view.
- Confirm fastener lengths and thread pitch shown near each callout.
- Check gasket profiles and torque notes adjacent to mating surfaces.
- Verify hose routing arrows to keep pressure loss low.
Keep a printed copy near the unit and annotate service dates next to swapped modules. This builds a clear maintenance record and speeds future repairs.

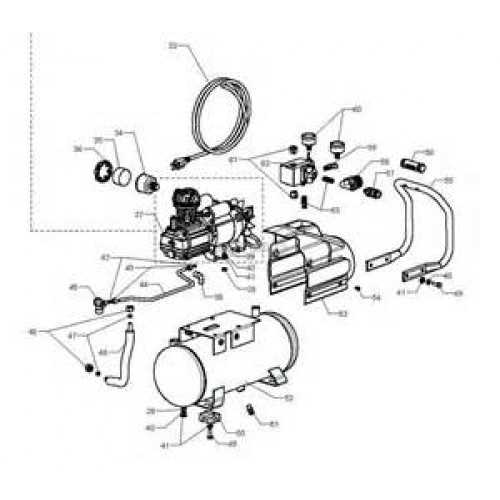

Identifying Major Components on a Bostitch Air Compressor Parts Diagram
Use the exploded schematic to trace each assembly from the drive source to the storage vessel and verify labels against physical placement before any service task.
Drive motor appears as the primary power source, typically shown with mounting bolts, wiring terminals, and a cooling shroud. Confirm voltage markings and shaft orientation to avoid mismatched replacements.
Pump head is illustrated with cylinders, pistons, and reed plates grouped together. Check bore count and gasket outlines; mismatches here cause pressure loss and overheating.
Pressure tank is depicted as the largest vessel beneath the frame. Identify weld seams, mounting feet, and threaded ports to ensure compatibility with drain fittings and sensors.
Intake filter connects directly to the pump inlet and is drawn with a housing and replaceable element. Verify thread size and direction to prevent unfiltered intake.
Check valve sits between the pump outlet and the tank port. The schematic shows flow direction arrows; install orientation must match to stop backflow during shutdown.
Regulating valve is placed downstream of the tank outlet. Note spring length and adjustment knob profile to maintain stable outlet pressure.
Pressure gauges are represented with dial faces and stems. Match range ratings shown on the layout to avoid needle pegging under load.
Safety relief valve is marked near the tank crown with a set-point value. Replace only with a unit rated to the same release threshold.
Drain cock appears at the tank’s lowest point. Confirm thread pitch and handle style for quick moisture purging.
Belt drive and guard assemblies, when present, are drawn as paired pulleys with a cover outline. Measure pulley diameters shown to keep rotational speed within limits.

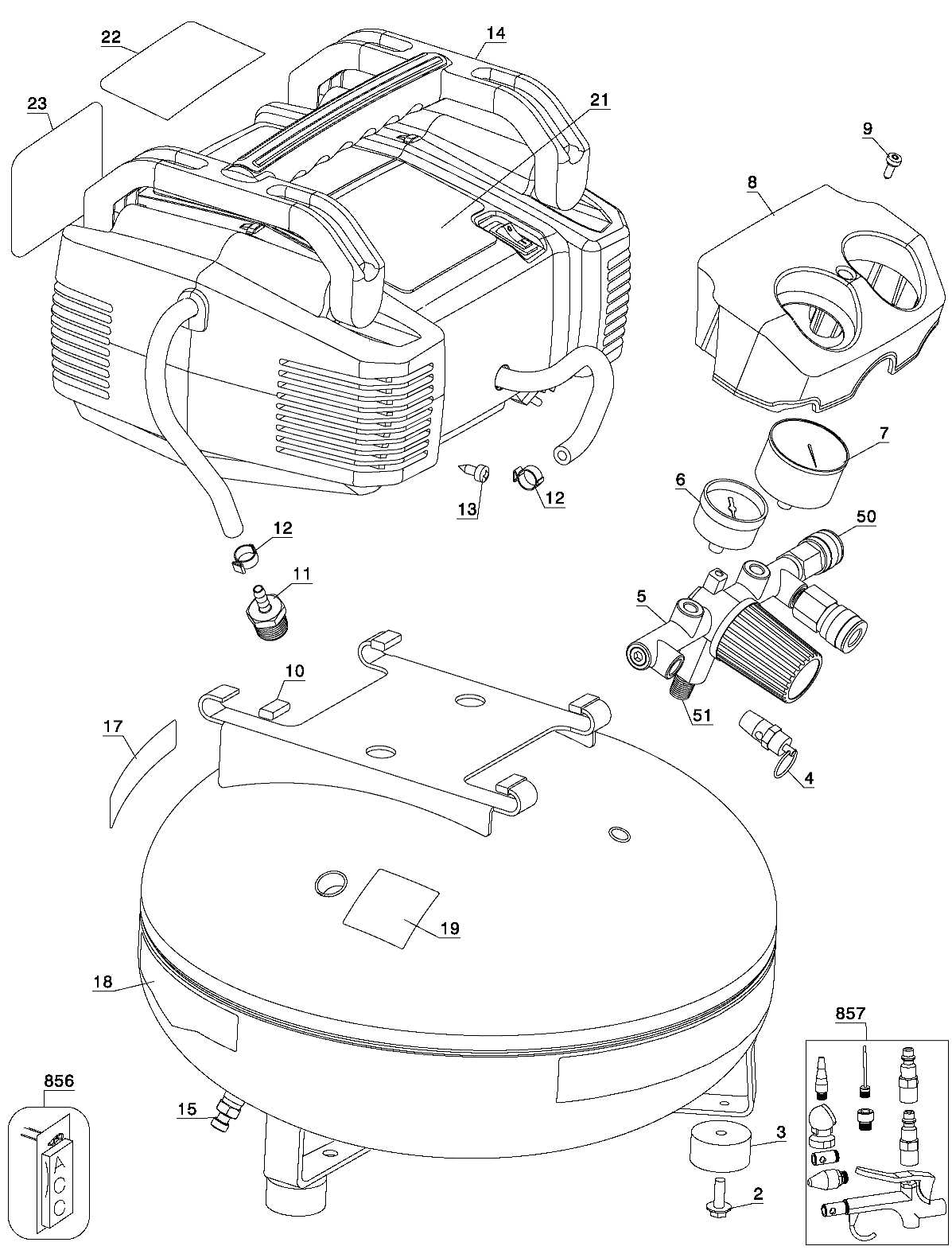

Matching Diagram Labels to Bostitch Replacement Part Numbers
Match each callout letter or number on the exploded view directly to the manufacturer’s service list, then verify the SKU against the tool’s exact model code stamped on the tank or frame.
Begin by locating the legend beside the illustration and record every reference marker tied to wear items such as seals, valves, switches, and drive elements. Cross-check each marker with the service table to obtain the precise replacement identifier; mismatches often occur when similar assemblies share visuals but differ by revision.
Confirm compatibility by comparing dimensions, thread pitch, voltage ratings, and material notes listed next to the identifier. For pressure controls, ensure the cut-in and cut-out ranges match the original settings; for lubrication elements, match micron rating and housing size.
Watch for sub-assemblies: a single marker may represent a kit that includes multiple items. If only one element has failed, select the individual identifier listed beneath the kit entry to avoid unnecessary extras.
Use revision notes to resolve conflicts. Service sheets often mark superseded identifiers with arrows or footnotes; choose the newest identifier unless the note restricts usage to specific serial ranges.
Before ordering, validate the identifier with two sources: the official service list and a distributor catalog. Confirming both reduces returns caused by visually similar but incompatible replacements.
Using the Schematic to Locate Failure Points and Disassembly Order
Follow the exploded schematic to trace load paths first, then isolate wear zones before removing any fasteners.
Identify the drive train path from motor shaft to pump head and mark interfaces with bearings, seals, and couplers; these junctions show heat polish, scoring, or oil mist when failure develops.
Cross-check fastener sizes and thread directions shown in the drawing against the housing faces; reverse-threaded nuts on flywheel hubs and left-hand bolts on guards prevent accidental loosening during operation.
Map gasket boundaries and O-ring grooves on the layout and inspect mating planes for imprint depth; crushed elastomer beyond 30% thickness points to leakage and blow-by.
Use the reference numbers to stage removal: external shrouds, intake assembly, head cover, valve plate, then piston assembly; this sequence avoids bending reed valves and cracking cast ribs.
Note torque callouts adjacent to bolt icons; uneven preload on head fasteners leads to warped plates, so record breakaway torque during removal to flag over-tightened locations.
Locate pressure relief and check assemblies on the chart and test them off-unit; spring length below spec or pitted seats correlate with rapid cycling and stall events.
Follow lubrication routes drawn between sump and crank journals; blocked passages leave blue discoloration on journals and flaked bearing shells.
Tag shims and spacers by their positions shown in the illustration; incorrect stack height alters piston-to-head clearance and causes contact marks.
Reassemble by reversing the illustrated order, matching alignment pins and witness marks; verify smooth rotation by hand after each stage to catch binding early.
