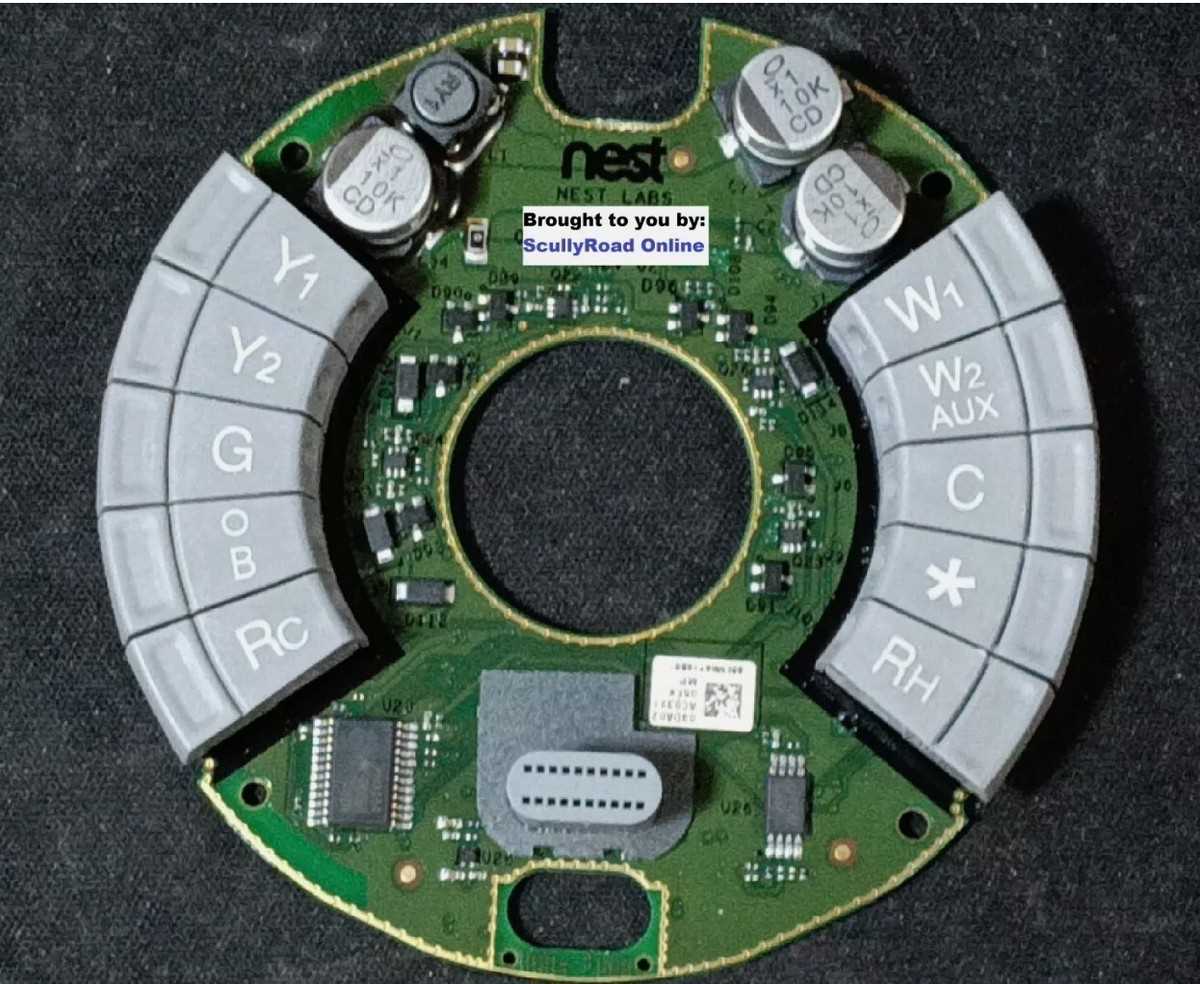

Start by identifying the terminals on your smart thermostat. You’ll typically find connections for the heating, cooling, and power systems, with dedicated ports for each. The most common terminals include “C” for the common wire, “Y” for cooling, “W” for heating, and “R” for the power source. Make sure your wiring matches the design of your HVAC system to ensure proper function.
Before beginning, turn off the power to your HVAC unit to avoid electrical shocks or damage. Carefully remove the existing control panel and check the current wiring setup. Each wire should be clearly marked according to its function. If any wires are unlabeled, take note of their color or use a wire identifier to label them accordingly. This will make the installation process easier and ensure that everything connects correctly.
Once the wires are labeled and the power is turned off, begin connecting them to the new unit’s corresponding terminals. Secure each wire firmly in place to prevent any loose connections that could cause issues later. Once you’ve completed the wiring, check everything twice for accuracy before turning the power back on. Finally, use the thermostat’s setup guide to configure the settings and ensure the system operates as expected.
Wiring Setup Guide for Smart Thermostat Installation
Start by identifying the terminals on your smart thermostat. Typically, you’ll find terminals for heating, cooling, and power connections. The most common labels include “C” for the common wire, “Y” for cooling, “W” for heating, and “R” for power. It’s critical to match these terminals with the corresponding connections in your HVAC system for proper functionality.
Before beginning, switch off the power at the circuit breaker to ensure safety. Next, remove the existing thermostat from the wall, and carefully examine the wiring setup. Take note of the wire colors and labeling to ensure you reconnect them correctly. If any wires are unlabeled, it is helpful to use a multimeter to identify their function.
Step 1: Connecting Power and Control Wires
Start by connecting the power wire (typically labeled as “R”) to the “R” terminal on the thermostat. This provides power to the system. Afterward, connect the heating and cooling wires. The heating wire typically connects to the “W” terminal, while the cooling wire connects to the “Y” terminal. Ensure each wire is securely attached and that there are no exposed wire ends that could cause short circuits.
Step 2: Connecting the Common Wire
The common wire, often labeled as “C,” plays a key role in completing the circuit. This wire provides a return path for power and is necessary for proper operation of modern smart thermostats. Connect the common wire to the “C” terminal. If your existing system doesn’t have a common wire, you may need to install one or purchase an adapter to create a common wire connection.
Once the power and control wires are connected, double-check that all wires are inserted properly and tightly in their respective terminals. Loose or incorrect connections can lead to system malfunctions or failure to operate altogether. Secure the thermostat onto its mounting plate, ensuring all wires are neatly tucked behind the device to avoid interference with the wall cover.
After the physical connections are made, restore power to the system and configure the thermostat settings. Follow the setup wizard on the thermostat’s screen to link the device to your Wi-Fi network and finalize the settings for your home’s heating and cooling system. Testing the system is crucial–verify that the temperature control works as expected from the device, and ensure both heating and cooling cycles are activated correctly.
How to Connect Your Smart Thermostat to Your Heating and Cooling System
To begin, power off the HVAC system by turning off the circuit breaker. Remove the old thermostat carefully, taking note of where each wire connects. It’s important to identify which wire is used for heating, cooling, common, and power. If the wires are not labeled, mark them using tape or a pen for easier identification. Take a photo for reference if necessary. Make sure you understand which wire is which before proceeding to install the new device.
Once the wires are identified, connect them to the corresponding terminals on the new unit. Typically, the red wire connects to the “R” terminal for power, the green wire to the “G” terminal for the fan, the yellow wire to the “Y” terminal for cooling, and the white wire to the “W” terminal for heating. If your system uses a common wire (often blue or black), connect it to the “C” terminal. After securely attaching the wires, mount the thermostat on the wall, turn the power back on, and follow the setup instructions on the display to configure your new system.
