Attach the 24V power lead directly to the main terminal to provide stable voltage for the thermostat and relay circuits. Avoid using adapters or extension cords that can create resistance and voltage drop.
Label each terminal according to its function. R terminals supply 24V AC, W terminals activate heating, Y terminals control cooling, and G terminals manage fan operation.
Use short insulated jumpers when linking auxiliary sensors or additional zones. This prevents signal interference and maintains consistent response across all connected units.
Secure all connectors with screws or properly crimped terminals. Apply a thin layer of dielectric grease to prevent corrosion and ensure long-term conductivity.
After completing all connections, test each circuit individually. Verify that heating, cooling, and fan outputs respond correctly and that no terminal shows unexpected voltage drop or erratic behavior.

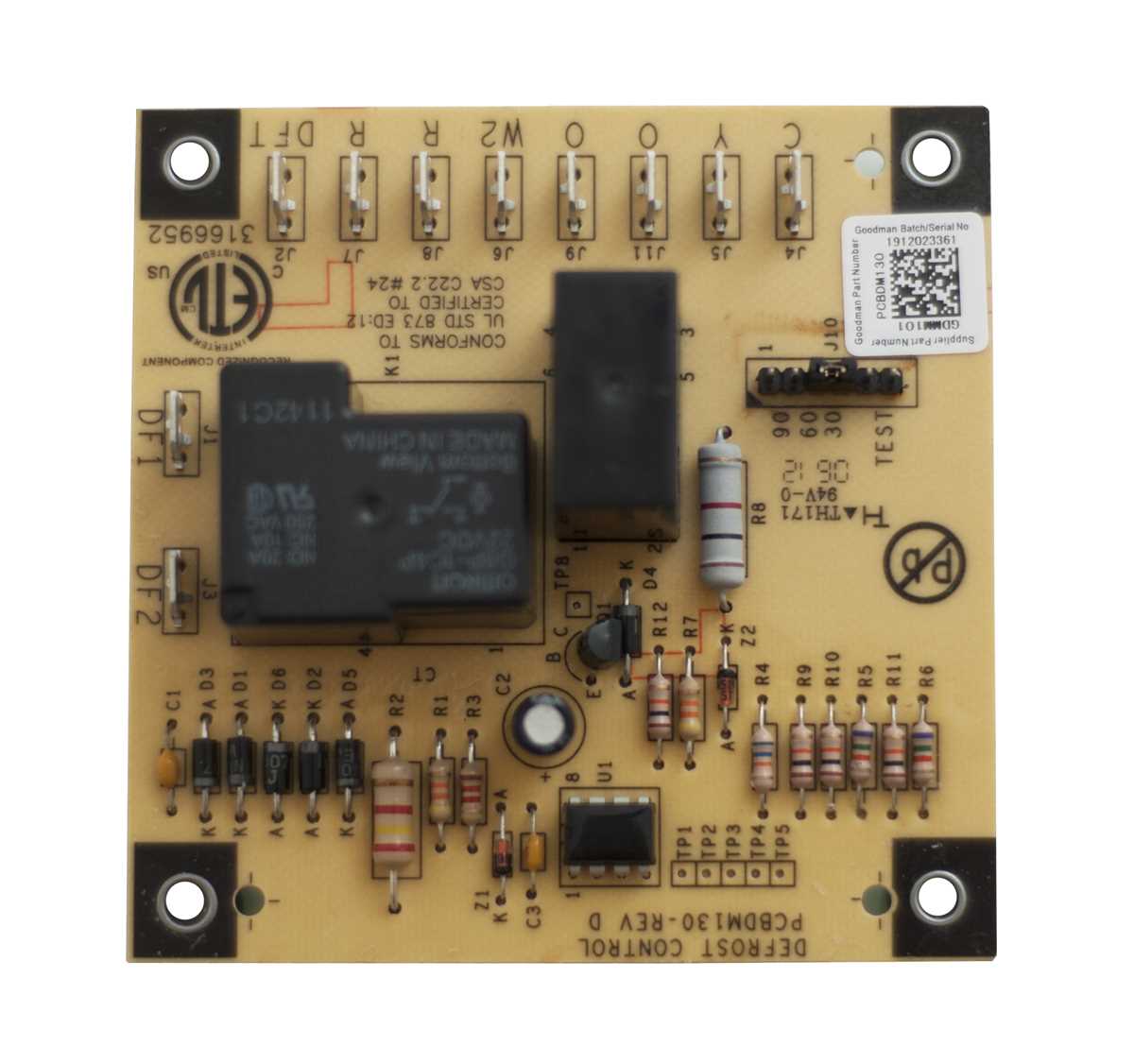

Goodman Control Board Wiring Diagram
Connect the main transformer leads directly to the high-voltage terminals, ensuring that the 24V secondary feeds the relay properly. Red wire should link to R terminal, while C terminal receives the common black wire. Double-check polarity before energizing the unit to prevent short circuits.
Thermostat connections require precise placement: W initiates heating, Y activates cooling, and G engages the blower fan. Avoid reversing any wire, as this can trigger fault codes on the status LED panel. Use wire nuts rated for 300V for secure splices.
When integrating the flame sensor, insert the signal lead into the dedicated slot adjacent to the ignition module. Maintain at least a quarter-inch clearance from metal surfaces to reduce false readings. Clean the sensor tip with fine steel wool if intermittent flame detection occurs.
Auxiliary safety components such as limit switches and pressure sensors must be routed through the safety terminals. Each switch should show continuity only when conditions are normal; any open circuit indicates a potential malfunction. Label all wires with heat-resistant tags for easier troubleshooting.
Before applying power, verify all jumpers match the unit’s model-specific requirements. A misplaced jumper can lock out the compressor or prevent proper fan operation. Inspect screw terminals for corrosion and tighten to 12–15 in-lbs torque to ensure reliable electrical contact.
Identifying Terminals and Signal Functions
Connect the incoming power lines to the designated high-voltage posts marked L1 and L2. Each low-voltage connection carries a distinct function:
- R supplies 24V from the transformer
- C serves as the common return path
- W triggers the heating sequence
- Y controls the compressor operation
- G activates the blower motor
Verify each terminal label against the printed circuit overlay before inserting any conductor to avoid misfiring components.
Signal feedback points include safety and status inputs:
- Flame detection signals must enter the sensor slot without touching adjacent metal
- Pressure switch leads complete the circuit only under normal airflow conditions
- Limit switch wires break the connection when temperature thresholds are exceeded
Use a multimeter to confirm continuity at each signal point before energizing. Clearly tag every conductor for rapid identification during maintenance or troubleshooting operations.
