To properly connect the electrical components of your vehicle, it is important to ensure that you identify the correct terminals on the ignition unit. Each terminal should be connected to a specific wire, and understanding this helps you avoid damage to the system and ensures the vehicle functions properly. Start by locating the power input and output wires, which are usually clearly marked or color-coded.
Ensure that you are using the appropriate gauge wire for each connection. For most systems, a 10 to 12 gauge wire will be sufficient for the primary power line, but you must check the manufacturer’s recommendations. Pay close attention to ground connections, as improper grounding can lead to malfunctioning electrical systems.
When connecting the terminals to the appropriate wires, confirm that each one is tightly secured to prevent any loose connections that could cause the system to short out. If the system has a relay, make sure it is wired according to the correct polarity. Additionally, always use the correct fuse rating to protect the circuit from overcurrent situations.

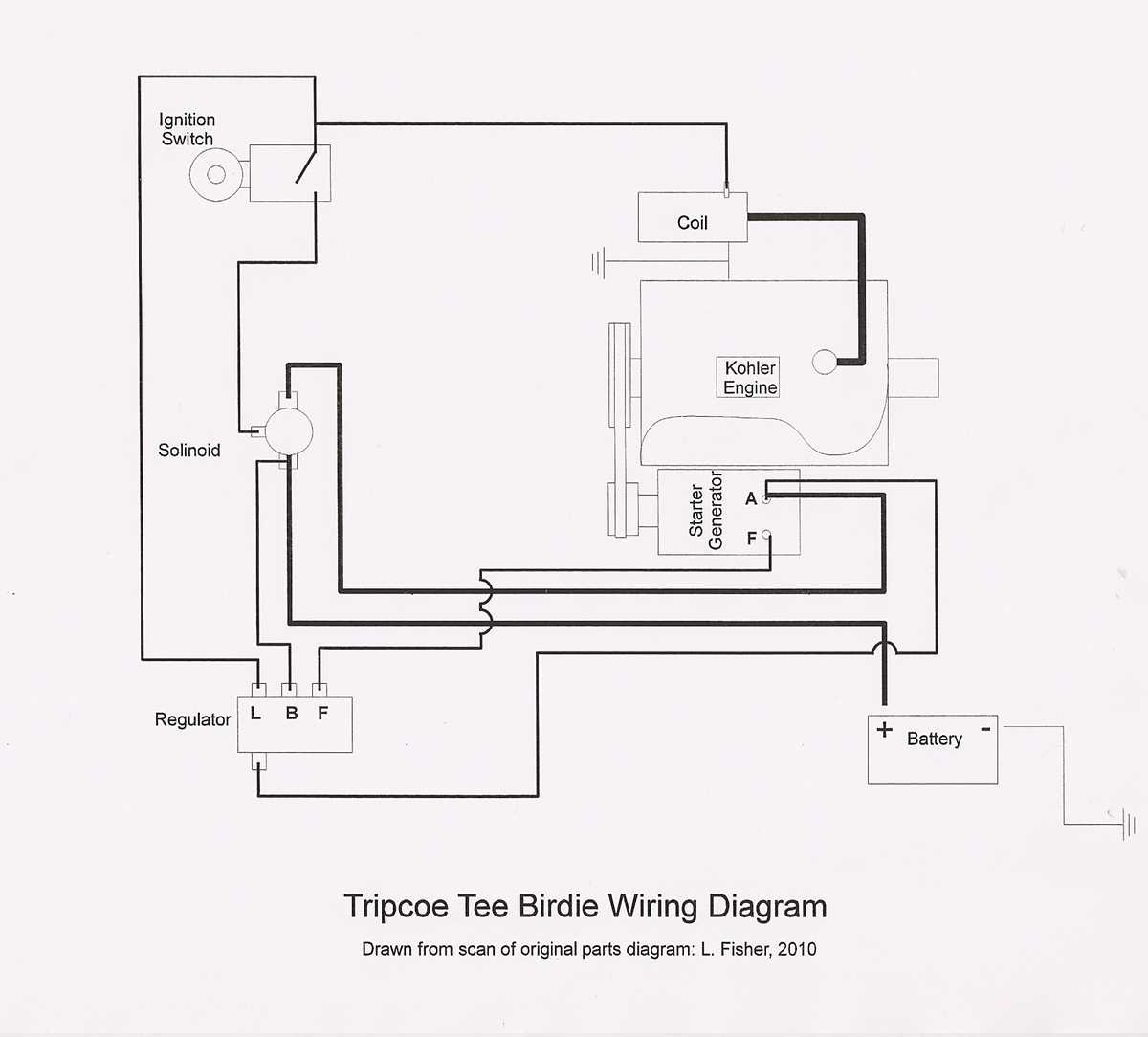

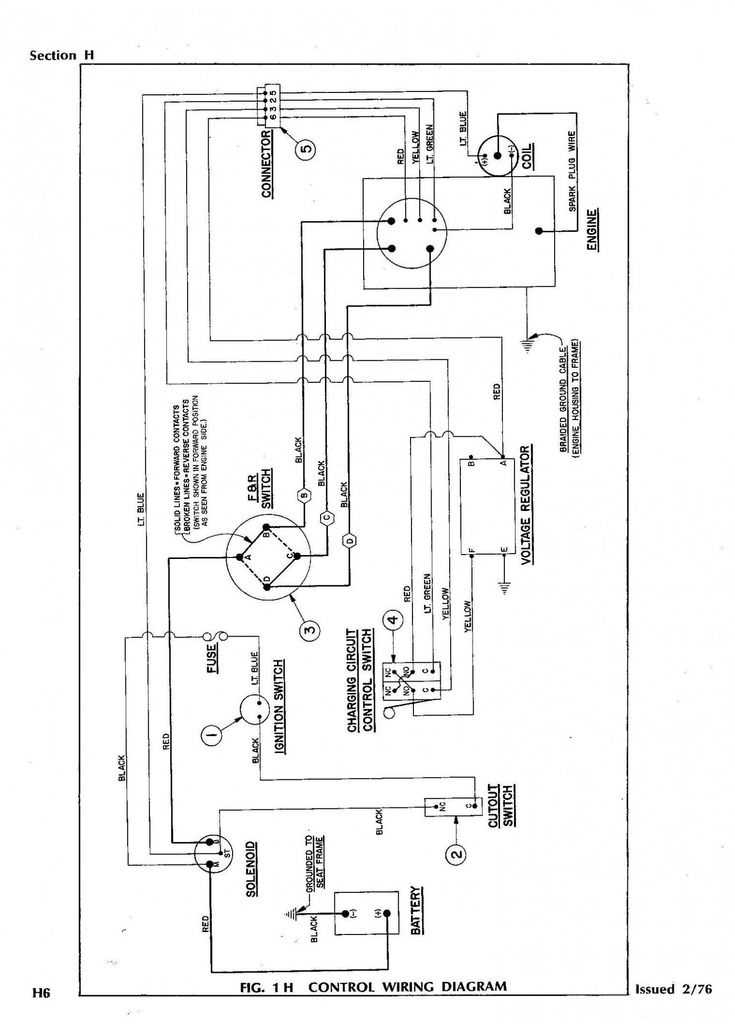

Golf Cart Ignition System Wiring Guide
To properly connect the ignition system, begin by identifying the main power input. This is typically connected to the battery or the vehicle’s primary power source. Ensure the wire is securely attached to the correct terminal, as this is essential for power distribution. Double-check that the power lead is of adequate gauge to avoid any overheating or loss of power during operation.
Next, you must connect the ground wire. This is often overlooked but plays a critical role in the operation of the entire electrical system. Connect the ground wire to a clean, rust-free metal part of the frame. This will ensure that the circuit is completed properly, preventing electrical faults or system failure.
For vehicles equipped with additional features such as lights or accessories, these should be connected to the auxiliary terminal. Ensure that each accessory has its own dedicated line for power and is fused separately to protect the system. This helps prevent overloading the main circuit and guarantees the longevity of your vehicle’s components.
Finally, verify all connections using a multimeter to ensure proper voltage is being delivered across each terminal. Make sure that all wires are insulated and securely fastened to prevent any accidental shorts or disconnections during operation. Always refer to the vehicle’s manual for specific color-coding or terminal assignments to avoid mistakes.

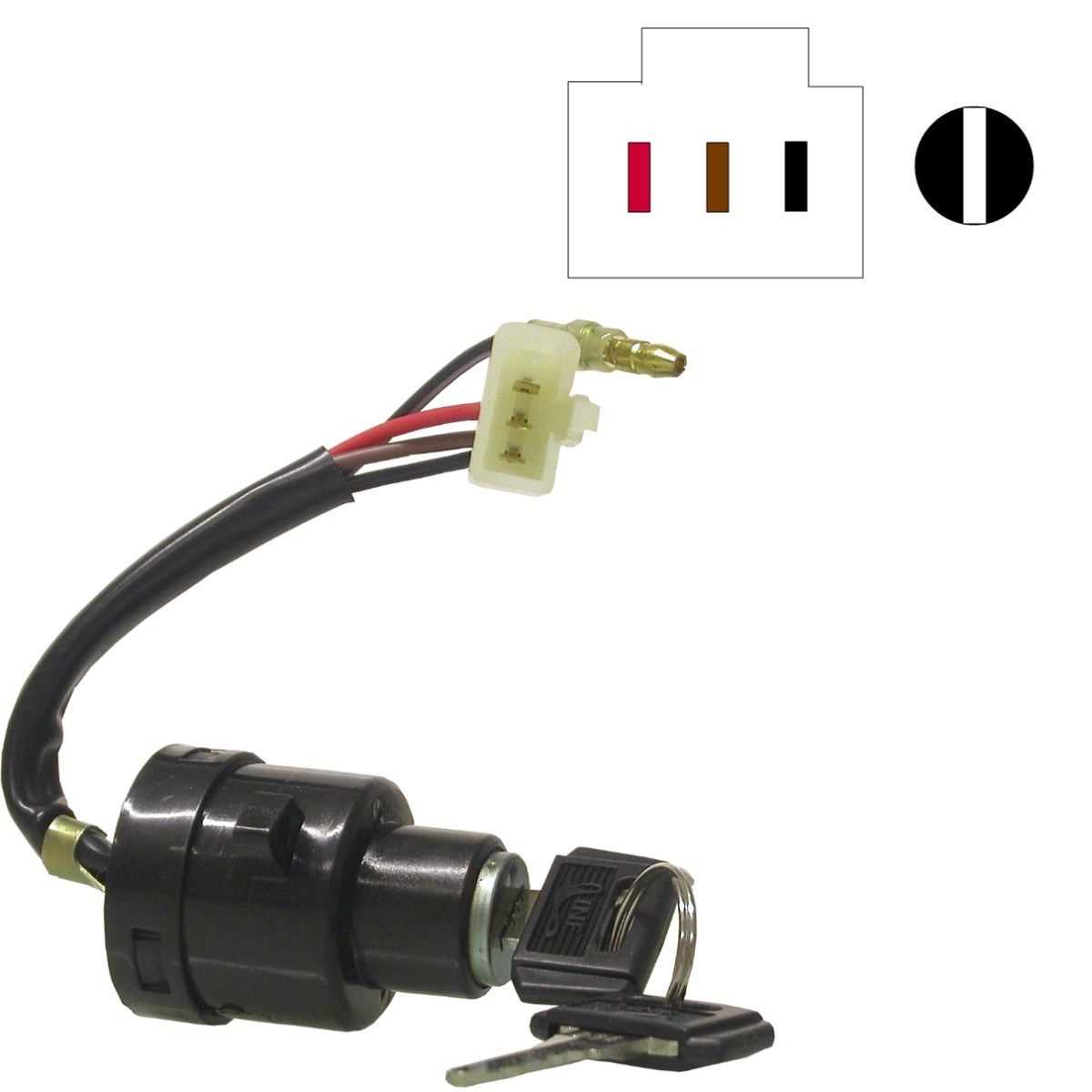

How to Identify the Correct Wires for Your Vehicle’s Ignition
Start by locating the power supply wire. This is typically the thickest wire, which carries the main voltage from the battery to the system. It is crucial to connect this wire to the appropriate terminal in the ignition assembly. Verify its connection to ensure a secure link with the power source.
The ground wire is the next most important connection. It often features a black or bare copper color and should be connected to a metal part of the vehicle’s frame. This ensures that the electrical circuit is complete and prevents short circuits from causing issues within the system.
Finally, identify the accessory wire, usually thinner and often colored differently. This wire is responsible for powering the vehicle’s accessories like lights or fans. Make sure this wire is connected to its respective terminal and properly fused to prevent overloading the system.
