To create a functional subtraction system in digital electronics, it’s crucial to understand the role of logic gates in performing subtraction. The key to achieving this is by implementing a design that correctly handles borrowing and provides both difference and borrow outputs. The configuration typically includes XOR gates for difference calculation, AND gates for partial products, and OR gates for the borrow bit. Properly connecting these gates ensures accurate subtraction of binary numbers, even when borrowing occurs.
The layout for this operation usually includes two binary inputs, one for each digit of the numbers being subtracted, and a borrow input to handle any previous borrow. The output includes a difference bit, which represents the result of the subtraction, and a borrow bit, indicating if a borrow is needed for the next bit. Carefully considering each gate’s placement and connection will help build a reliable system.
For optimal results, use a truth table to map out all possible input combinations and verify that the gates are logically functioning as expected. This step will allow for troubleshooting during the design phase, ensuring the system works as intended under all conditions. Understanding these components and their interaction will provide a solid foundation for any digital subtraction system design.

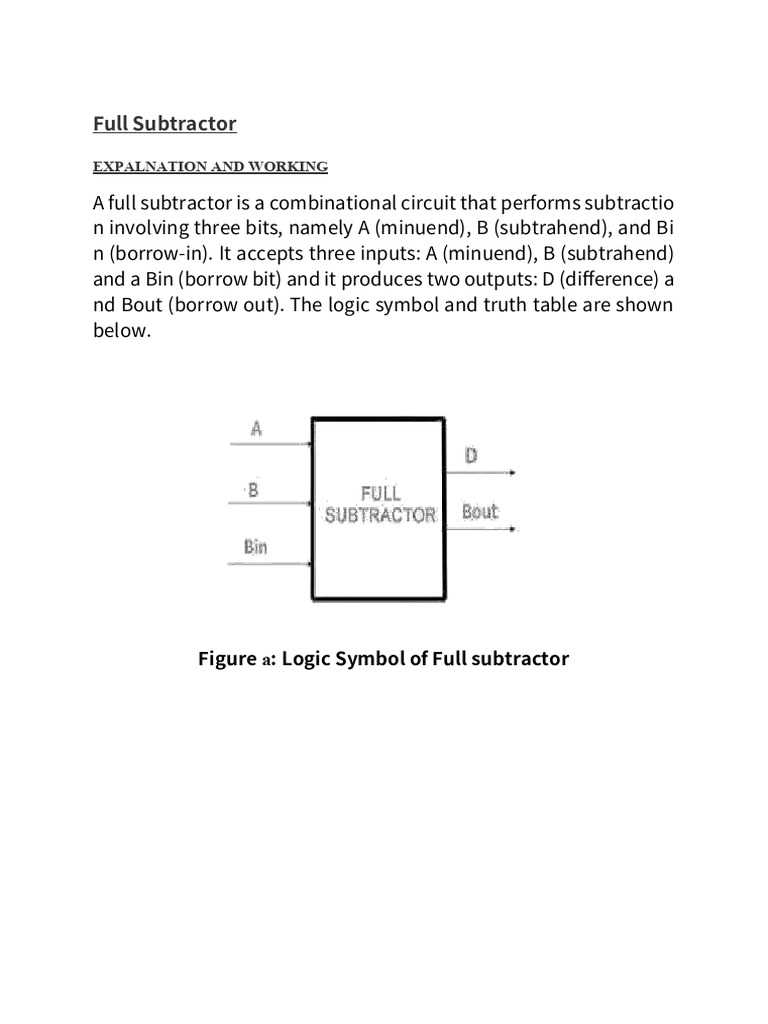

Full Subtractor Circuit Diagram
To construct a reliable binary subtraction system, you need to correctly combine XOR, AND, and OR gates. The XOR gate calculates the difference between the two bits, while the AND and OR gates are used to manage the borrow operation. A borrow bit is crucial when subtracting a higher bit from a lower one, and it must be handled by the appropriate logic gate configuration to ensure the system functions as expected. Typically, this involves wiring inputs for two binary numbers and an additional borrow input from the previous stage, all connected to the respective gates.
It is advisable to use a truth table for verification, ensuring that each combination of inputs results in the expected output for both the difference and the borrow bit. This approach helps in troubleshooting potential issues in the design, such as incorrect borrow generation or faulty difference calculation. Once the logic gates are connected as per the truth table, testing the design will ensure it handles various input conditions and performs subtraction correctly across all input values.
Components and Logic Gates Used in a Full Subtractor
The primary components required for constructing a binary subtraction unit are XOR gates, AND gates, and OR gates. Each of these gates plays a distinct role in handling the subtraction operation. The XOR gate is responsible for calculating the difference between two binary inputs, ensuring the result reflects the subtraction of corresponding bits. On the other hand, the AND gate processes the borrow condition by checking if a borrow is needed, and the OR gate ensures that the final borrow output is correct by combining the individual borrow signals from each stage.
The XOR gate forms the core of the difference operation. When the two inputs are compared, the XOR gate outputs a 1 if one of the bits is 1 and the other is 0, representing the difference between those bits. If both bits are the same, the output is 0, which is expected when there’s no subtraction happening at that position. This logic is essential for performing subtraction on a bit-by-bit basis.
AND gates are critical for managing the borrow logic. When subtracting a higher bit from a lower one (e.g., 0 minus 1), a borrow bit is generated. The AND gate checks whether this borrow condition exists and passes it to the next higher bit. Without this gate, the system wouldn’t be able to handle situations where borrowing occurs in the subtraction process.
To ensure proper propagation of the borrow bit, OR gates are used to combine the results from different borrow outputs. This gate checks whether any of the AND gates have generated a borrow signal and ensures that it propagates correctly through the calculation stages. Without the OR gate, the borrow signal would not be transmitted effectively between stages.
Additionally, input lines for both binary digits and the borrow bit must be carefully designed to connect these gates. The borrow input is especially important as it informs the system whether borrowing has occurred in a previous stage. The accurate management of the borrow bit ensures the integrity of the subtraction process across multiple bits, which is why connecting the inputs and gates correctly is critical for successful operation.
Finally, to ensure the system operates as expected, testing each component individually with a truth table can help confirm that the logic gates are functioning properly. This step allows for verification of the outputs, making sure that the system provides the correct difference and borrow bits for every possible combination of inputs.
