To correctly wire your network connections, begin by ensuring the correct arrangement of individual wires within the cable. For high-speed, reliable connections, follow the standard order for pin placement. The two main wiring schemes, T568A and T568B, are commonly used. Both methods offer solid performance, but the key difference lies in the color sequence of the pairs.
For most home and office setups, the T568B wiring scheme is often preferred, as it matches the configuration of many pre-made cables. The first step is to strip the outer insulation from the cable, exposing the four twisted pairs. Then, arrange them in the correct order, ensuring they’re fully untwisted and aligned to maintain the integrity of the signal.
Once you have arranged the wires according to the chosen wiring standard, proceed by inserting them into the connectors. Be sure each wire is pushed all the way to the end, ensuring a solid connection. Incorrectly seated wires can cause poor or intermittent network performance. After insertion, use a crimping tool to secure the connector firmly to the cable.
Test your connection before finalizing the setup. Use a cable tester to verify that all pins are correctly wired and functioning. Even a minor mistake in the order can result in a connection failure, so thorough testing is important. This simple yet effective approach will ensure your network runs smoothly and without interruptions.

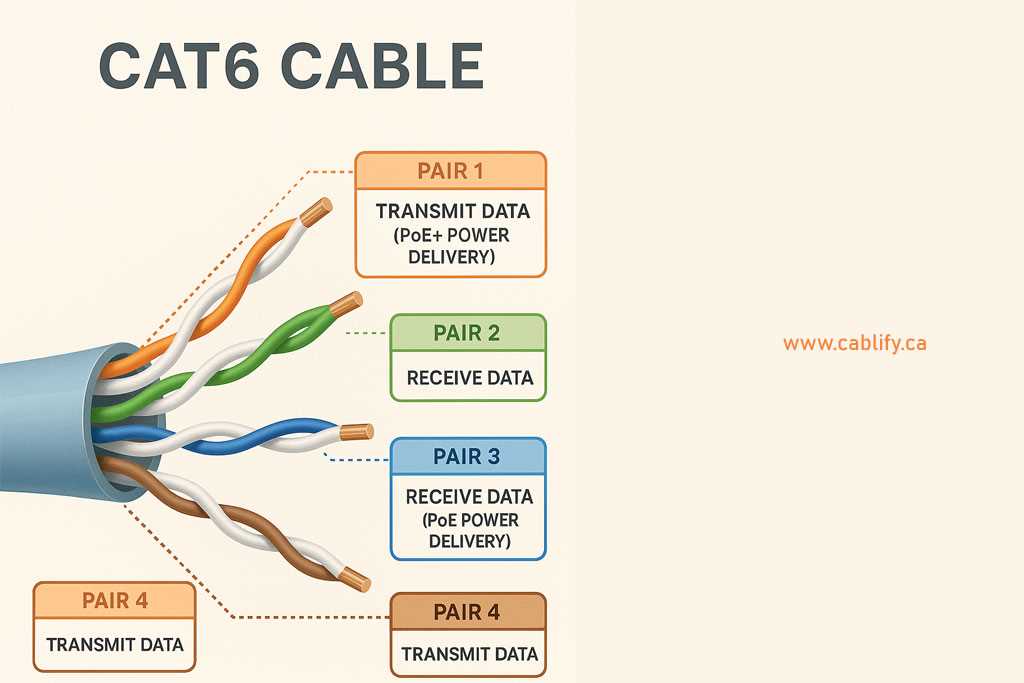

Ethernet Cable Wiring for Cat6 Connections
For reliable high-speed data transmission, use the T568B wiring standard. Begin by stripping back the insulation and untwisting the pairs inside the outer sheath. Make sure the wires are organized and aligned according to the color code: white-orange, orange, white-green, green, white-blue, blue, white-brown, and brown.
Once the wires are arranged, insert them into the RJ45 connector. Each wire should be pushed into its corresponding slot until it reaches the end. This ensures a solid connection and prevents poor signal transfer. Pay attention to the positioning of the white-orange wire, as it should be placed in the farthest left position in the connector.
Understanding the Pinouts

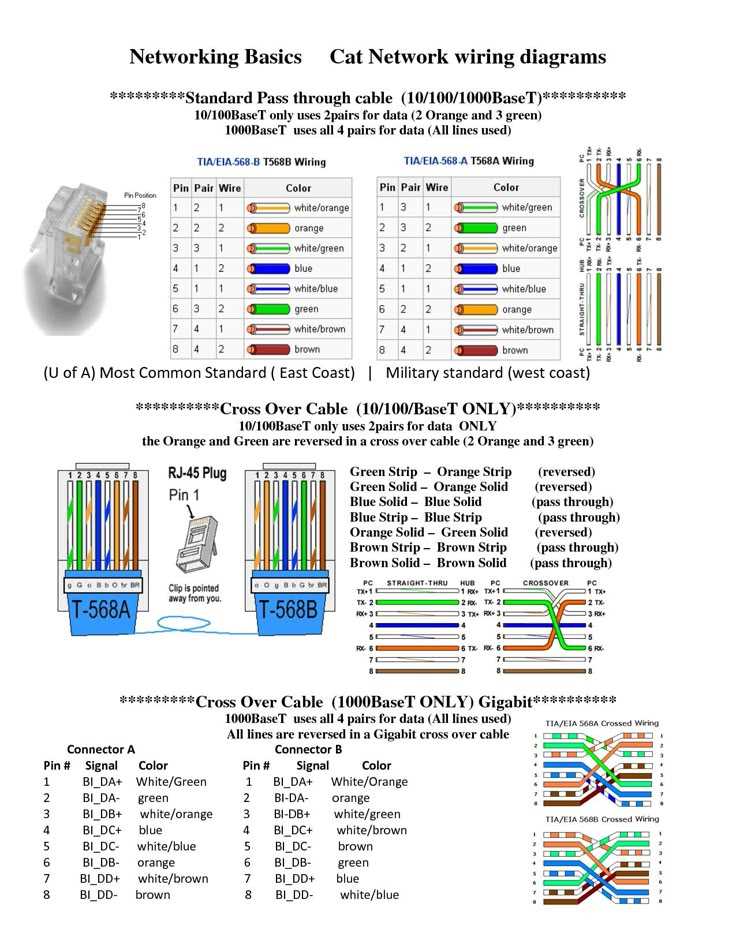

When looking at the connector with the clip facing down, the wiring order for T568B is as follows: Pin 1 is white-orange, Pin 2 is orange, Pin 3 is white-green, Pin 4 is blue, Pin 5 is white-blue, Pin 6 is green, Pin 7 is white-brown, and Pin 8 is brown. This sequence ensures that the signal flows correctly through the network and maintains optimal performance.
Next, use a crimping tool to secure the RJ45 connector to the wires. Ensure that the crimp is tight and that the connector is fully seated on the wires. A poorly crimped connector will result in an unstable connection and may cause intermittent signal issues. Always check the crimp before testing the connection.
Testing and Troubleshooting
Once the connector is crimped, use a cable tester to verify the wiring. The tester will show whether each pin is connected properly and if the connection is correct. If there is a fault, inspect the crimp and wiring sequence. Often, simply re-crimping the connector or re-aligning the wires will resolve any issues.
After ensuring the cable is wired correctly, you can proceed with using it in your network. Properly wired cables provide stable performance, ensuring fast and reliable connections across devices. If you follow these steps, your setup will be efficient and ready for use in both home and office environments.
Step-by-Step Guide to Wiring Cat6 Ethernet Cables
Begin by preparing the necessary tools: a crimping tool, RJ45 connectors, and a cable stripper. Start by stripping about 2 inches of the outer sheath of the wire, exposing the four twisted pairs inside. Make sure not to cut into the individual wires as you strip the outer insulation.
Next, untwist the wire pairs and arrange them according to the chosen wiring standard. For this guide, we will use the T568B standard, which requires the following order for the wires (from left to right): white-orange, orange, white-green, blue, white-blue, green, white-brown, and brown. Ensure each wire is fully untwisted and straightened to avoid interference in signal transmission.

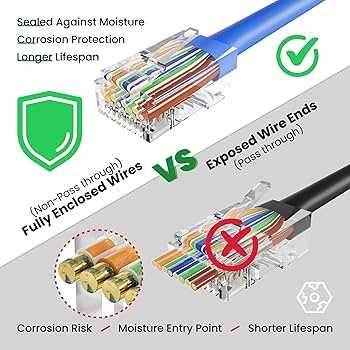

Insert Wires into RJ45 Connector
Insert the wires into the RJ45 connector, making sure they reach the end of the connector. The plastic part of the connector should hold the wires in place, and the wire tips should touch the metal contacts inside the connector. Double-check the order of the wires to confirm they are correctly aligned.
Crimp the Connector
Once the wires are securely inserted, use the crimping tool to press down the metal pins inside the RJ45 connector. This action pushes the pins through the wires, making the electrical contact. Ensure a strong crimp to prevent any loose connections, as this can cause signal degradation or intermittent network issues.
Finally, test the completed connection using a cable tester to ensure all wires are correctly wired and the connection is stable. If the tester signals a fault, inspect the crimped connector and wiring order to make necessary adjustments. Once confirmed, your connection is ready for use.
