Connect both units directly to a dedicated relay and fuse block to prevent voltage drops and ensure simultaneous operation. Use high-amperage terminals rated at 30 amps or higher to handle peak current without overheating.
Match positive and negative leads precisely to their respective bus bars. Reversing polarity can damage motor windings or trigger the thermal cutoff. Label each conductor with heat-resistant tags to avoid confusion during maintenance.
Route the harness away from sharp edges and heat sources inside the engine bay. Utilize split loom tubing or corrugated sleeves to reduce abrasion and vibration damage, maintaining consistent conductivity over time.
Test the assembly under load before securing the entire setup. Apply 12 volts gradually and monitor current draw; values exceeding 20 amps per unit indicate a need for larger gauge connectors or additional fusing to prevent overheating.

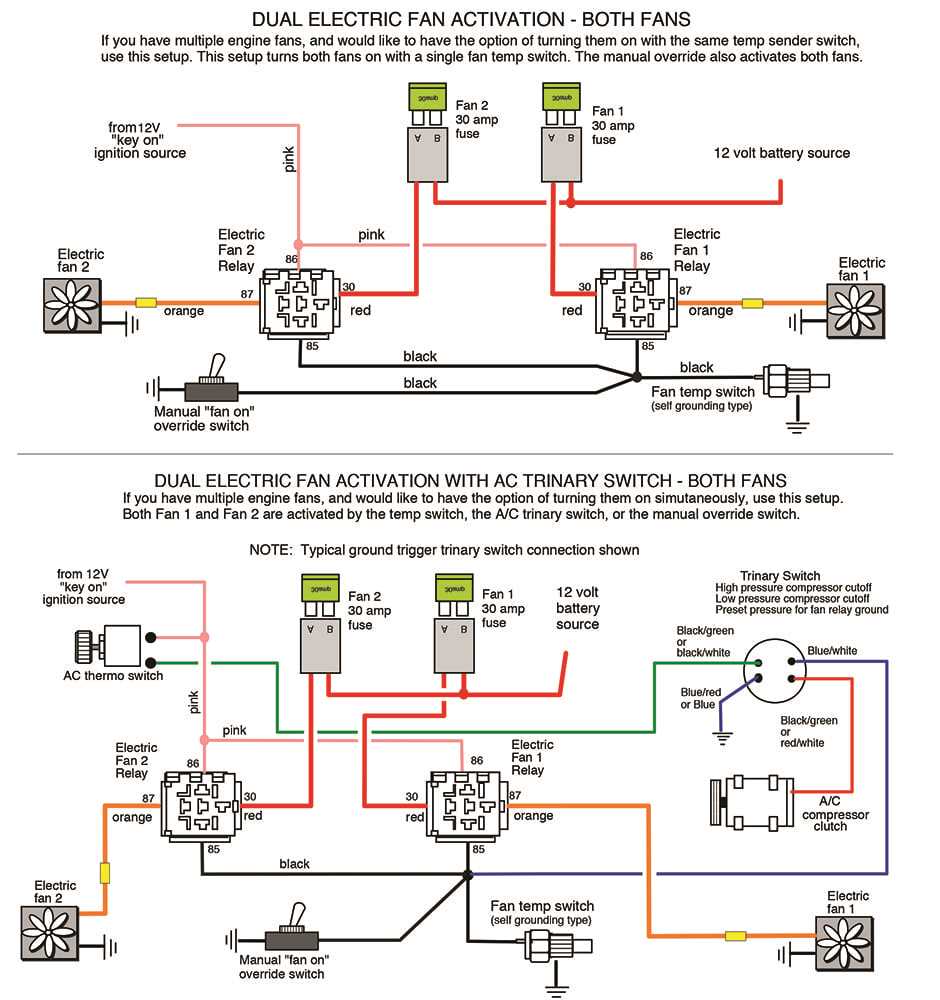

Dual electric fan connection setup guide
Use a dedicated relay and fuse for each unit to prevent overloading the main circuit. Connect the positive lead from each motor to its relay output, and ensure the negative lead is secured to a solid chassis ground point with corrosion-resistant terminals.
Route the harness carefully along the engine bay frame avoiding moving parts and high-temperature areas. Employ protective sleeves or split loom tubing to reduce abrasion and vibration that can compromise conductivity over time.
Test the assembly under load before final mounting. Apply battery voltage gradually and observe current draw; readings above 20 amps per unit indicate a need for thicker gauge connectors or additional fusing to maintain stable operation and prevent overheating.
Identifying fan terminals and relay connections
Start by labeling each terminal using colored tape or numbered tags. Positive leads typically connect to the relay output while negative leads should attach directly to the chassis ground or a dedicated grounding point to prevent voltage drops.
Check the relay pinout carefully. Most standard units have four pins: 85 and 86 for coil activation, 30 for battery feed, and 87 for output to the motor. Confirm the specifications printed on the relay body before connecting any leads.
Use a multimeter to verify polarity. Set it to DC voltage and measure across the terminals; the positive side should match the battery’s positive post, and the negative should show continuity to the chassis ground.
Sequence connections in stages to avoid misfires. Connect the ground first, followed by the coil activation wires, then the output to the motor. This prevents accidental short circuits when energizing the relay.
Secure all connectors with locking clips and apply dielectric grease to prevent corrosion and reduce resistance. Loose or oxidized terminals can cause intermittent operation and overheating under load.
Test the assembly before final installation. Apply voltage through the relay coil and observe the response of each motor. If one does not activate, recheck terminal identification, relay pin configuration, and continuity of the leads.
