Dual Battery Setup and Connection Guide for Camper Electrical Systems

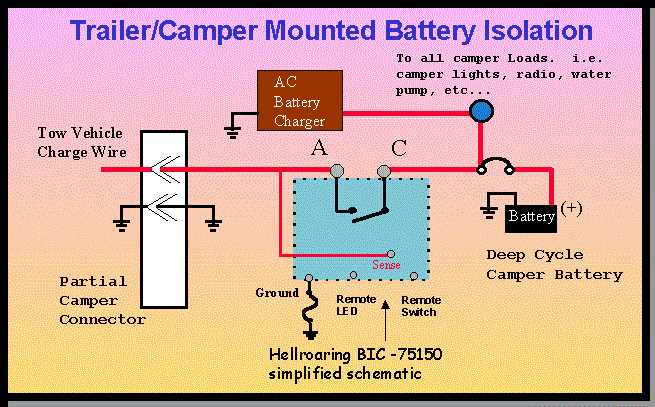

dual battery wiring diagram camper

Link the main engine power source to the auxiliary unit through an isolator to prevent the starter from discharging when running electronics. Use marine-grade cables rated for at least 50 amps to handle peak loads safely.

Install inline fuses near each terminal to protect against short circuits. Fuses should match the maximum expected current plus 10 percent to prevent blown protection during startup surges. Placing them close to the source reduces the risk of fire and component damage.

Ensure proper grounding by connecting each negative terminal directly to the chassis. Use thick copper straps or cables to minimize voltage drops. Poor grounding can cause flickering electronics and erratic system behavior.

Route cables away from heat sources and moving parts. Secure all runs with insulated clamps to prevent abrasion or contact with metal edges. Exposed or damaged insulation can lead to shorts and unsafe conditions.

Auxiliary Power Setup and Connection Guide for Camper Electrical Systems

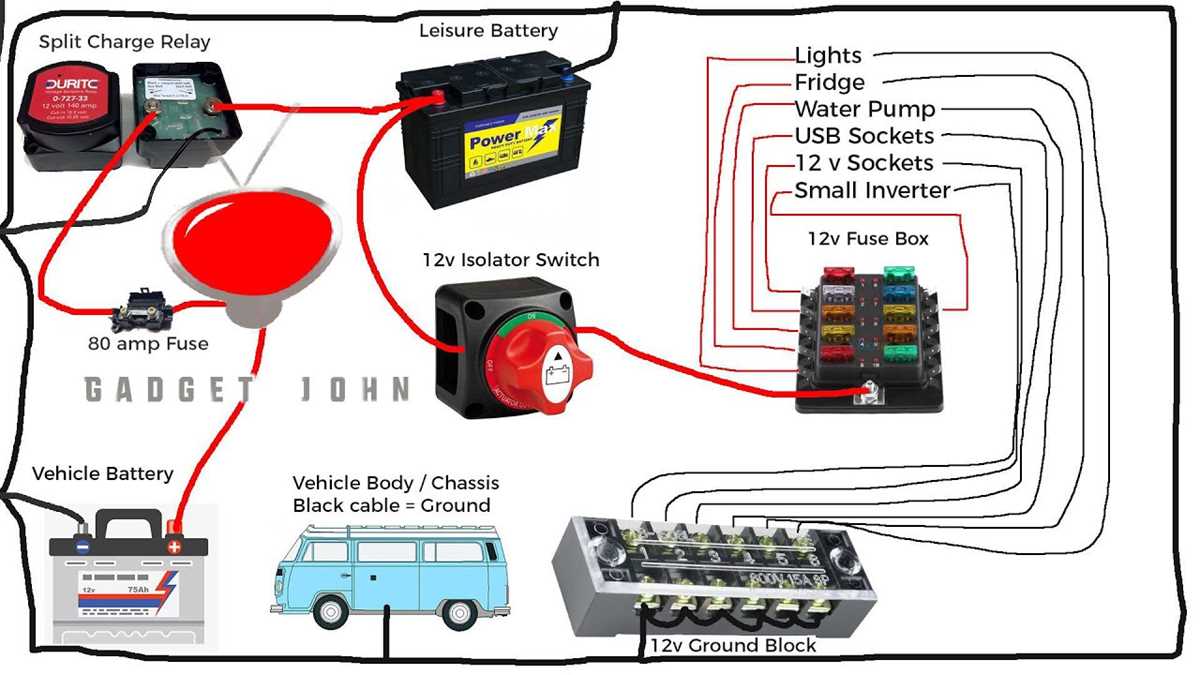

dual battery wiring diagram camper

Connect the starter and auxiliary power units through an isolator to prevent the engine supply from draining when running onboard electronics. Use cables rated for at least 50 amps and marine-grade insulation for safe operation.

Install fuses or circuit breakers on each positive terminal near the power sources:

  • Main supply fuse: Matches the maximum expected startup current plus 10 percent
  • Auxiliary line fuse: Protects the secondary system from shorts and overloads
  • Inline breakers: Optional for sensitive electronics such as inverters and chargers

Ground all units directly to the chassis using thick copper straps or cables. Keep negative connections short and secure to reduce voltage drops and prevent flickering lights or erratic behavior. Check for corrosion and tighten terminals periodically.

Route all connections away from heat sources, moving parts, and sharp edges. Secure cables with insulated clamps to avoid abrasion and contact with metal surfaces. Proper routing and strain relief increase longevity and prevent short circuits during travel.

Connecting Starter and House Power Units with Isolators

dual battery wiring diagram camper

Install an automatic isolator between the main engine source and the auxiliary unit to prevent the starter supply from discharging when operating onboard devices. Choose an isolator rated for at least 100 amps to handle peak alternator output.

Use thick, marine-grade cables with proper insulation for both positive and negative connections. Keep cable lengths as short as possible to minimize voltage drop and maintain efficient charge transfer. Long or undersized cables can lead to slow charging and reduced power availability.

Secure each connection with high-quality terminals and torque to manufacturer specifications. Loose connections can cause arcing and heat buildup. Periodic inspection and tightening of terminals prevent unexpected power loss.

Include inline fuses or breakers near each terminal. Fuse ratings should match the maximum expected load plus 10 percent to protect against short circuits and overloads. Placing them close to the source ensures rapid disconnection in case of faults.

Route all cables away from moving parts, exhaust components, and sharp edges. Use insulated clamps and grommets to prevent abrasion. Proper cable management reduces the risk of insulation damage and electrical shorts.

Test the system after installation by measuring voltage at both units with the engine running. Confirm the isolator allows charging of the auxiliary unit without draining the starter supply. Regular voltage checks ensure the system operates reliably during extended trips.
