Step by Step Smoke Detection Setup with Wiring and Component Guide

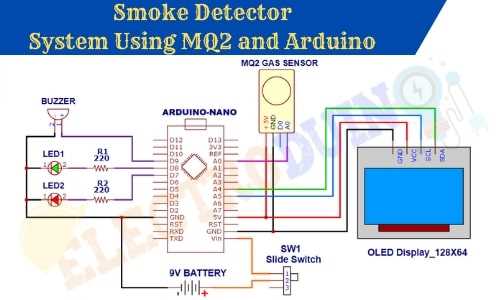

circuit diagram for smoke detector

Use an ionization or photoelectric sensing module with a regulated 5 to 12 volt supply to detect airborne particles reliably. Ensure stable voltage with minimal ripple to prevent false triggers and maintain consistent operation of the alert unit.

Integrate a buzzer or LED indicator through a transistor switch to handle higher current devices. This prevents overloading the detection board while providing audible or visual alerts when smoke levels rise.

Include a reset button wired to the module’s reset pin to clear the alert state quickly. This allows the system to return to monitoring mode without disconnecting power or affecting sensor sensitivity.

Position the module strategically near ceilings or high points where smoke accumulates first. Avoid placing it near fans, heaters, or open windows that could disperse particles and delay detection.

Test the assembly by generating a small, controlled smoke source and observing the response. Adjust potentiometers or thresholds as needed to ensure reliable activation without false alarms from harmless aerosols or steam.

Smoke Detector Electronic Setup Guide

Connect an ionization or photoelectric sensing module to a regulated 5 to 12 volt power supply to ensure consistent particle detection. Use short, solid-core wires to reduce voltage drops and prevent false triggers caused by interference.

Integrate an audible buzzer or visual LED indicator using a transistor switch to manage higher current loads. This protects the sensing module while providing immediate alerts when hazardous particles are present.

Input Stabilization

Add resistors and capacitors to each input line to stabilize signals and prevent spurious activation. Typical values are 10kΩ resistors paired with 100µF capacitors for standard small-room installations.

Include a reset button wired to the module’s reset pin to clear alerts quickly. This allows the system to resume monitoring without disconnecting power or affecting sensitivity.

Optimal Placement

circuit diagram for smoke detector

Mount the module near ceiling corners or high points where particle concentration rises first. Avoid positioning near fans, vents, or windows that may disperse particles and delay activation.

Test the assembly with a controlled particle source and monitor indicator response. Adjust threshold settings or potentiometers to prevent false alerts while ensuring rapid detection of hazardous conditions.

Secure components on a non-conductive base and use insulated connectors. Proper mounting reduces mechanical stress and minimizes the risk of accidental short circuits, ensuring reliable long-term operation.

Selecting Components for Reliable Smoke Detection

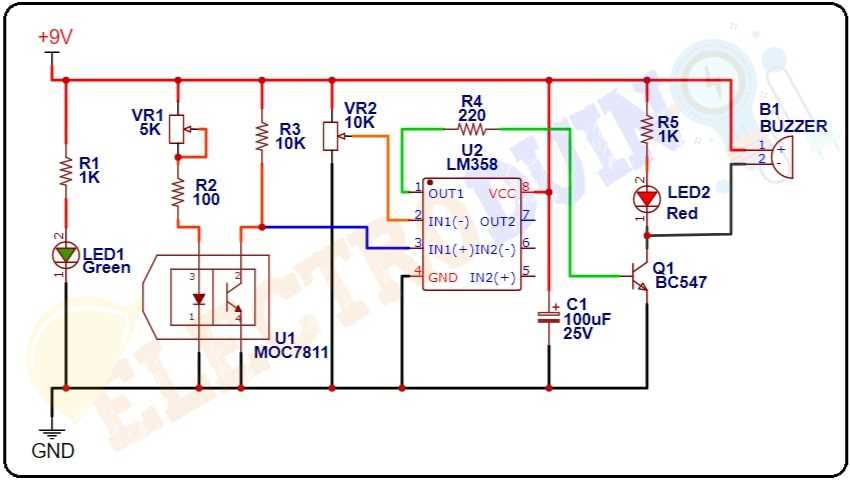

circuit diagram for smoke detector

Choose a stable power supply that delivers 5 to 12 volts DC with minimal ripple. Fluctuating voltage can cause false activations or failure of the sensing module.

Select an appropriate sensing module such as an ionization or photoelectric type depending on the environment. Ionization units respond faster to flaming sources, while photoelectric modules detect smoldering particles more reliably.

Include output indicators to signal detection events:

  • LEDs with current-limiting resistors for visual alerts
  • Piezo buzzers through a transistor switch for audible warnings
  • Relays to control external devices without overloading the sensing module

Integrate input stabilization with resistors and capacitors to prevent false signals. Common configurations include 10kΩ resistors with 100µF capacitors for small-scale setups.

Add a reset mechanism using a normally open push button wired to the module’s reset pin. This allows clearing alerts quickly and resuming monitoring without power interruption.

Choose wiring and connectors that maintain solid electrical connections. Short, solid-core wires reduce voltage drop on signal paths, while insulated connectors prevent accidental shorts.

Include protective components such as diodes across relay coils and inline fuses for the power supply. Diodes prevent back EMF damage, and fuses safeguard against overcurrent conditions, improving long-term reliability.
