Connect the rotor output directly to the voltage regulator terminal to maintain steady energy flow to the storage unit. Ensure all grounding points are secured with corrosion-free connectors, as weak grounds often cause flickering dashboard lights or intermittent charging.
Use a fused link rated slightly above the maximum output current to prevent overloads. Position it as close to the battery positive post as possible to minimize voltage drops and protect wiring from thermal stress. Oversizing wires by one gauge can reduce heat buildup and extend the lifespan of connectors.
Incorporate a diode assembly correctly oriented to allow current to pass toward the storage system while blocking reverse flow. Incorrect placement leads to parasitic drain and can deplete the battery overnight. Verify polarity with a multimeter before permanent connections.
Regularly inspect slip ring brushes and bearings for wear, as friction increases resistance and reduces efficiency. Replacing worn components before they fail prevents voltage fluctuations and preserves the integrity of the energy distribution network.
Ensure the field coil receives a controlled excitation voltage from the regulator to maintain output consistency. Sudden spikes can stress the battery and connected electronics. Using a small capacitor across terminals can smooth transient voltages and reduce noise in sensitive circuits.

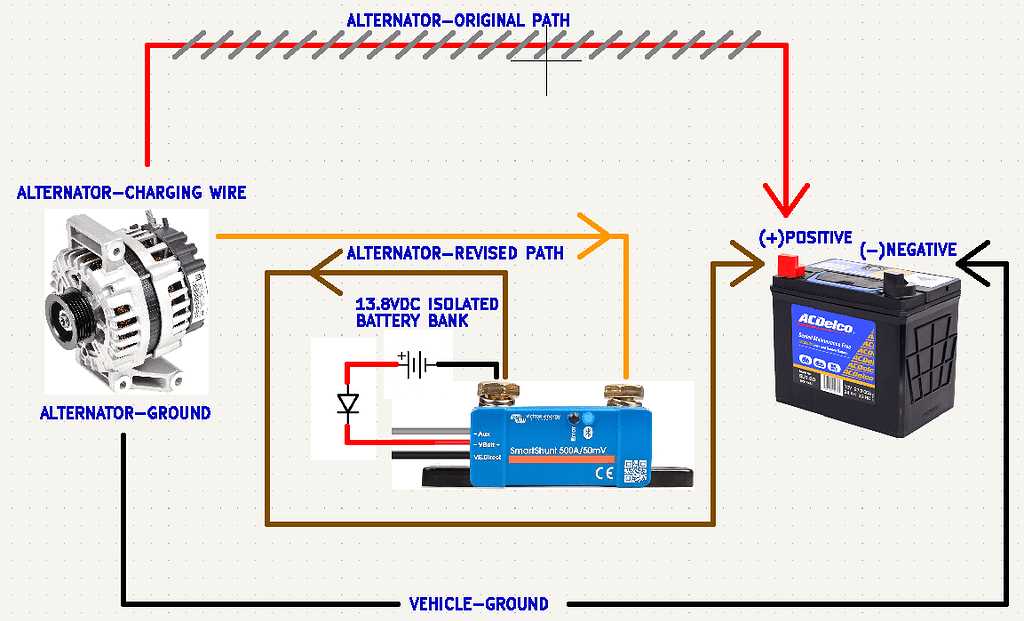

Vehicle Generator Power Flow Overview
Connect the rotor coil terminals directly to the voltage regulator terminals labeled B+ and D+. Ensure the field winding receives stable excitation of 12–14 V for a nominal 60 A output. Integrate a heavy-gauge wire (≥8 AWG) from the main output stud to the battery positive terminal, including a 60 A inline fuse to prevent overcurrent damage. Ground the stator frame firmly to the chassis to avoid voltage drops exceeding 0.2 V under full load.
Route the control lead from the dashboard indicator lamp through a 1 A fuse to the exciter input; this allows the internal rectifiers to sense load conditions and adjust the magnetic field automatically. Use heat-shrink terminals for all high-current connections to prevent corrosion. Confirm proper phase connection of the three-phase winding before final assembly to maintain a smooth DC output and avoid ripple above 0.5 V at 2,000 RPM idle speed.

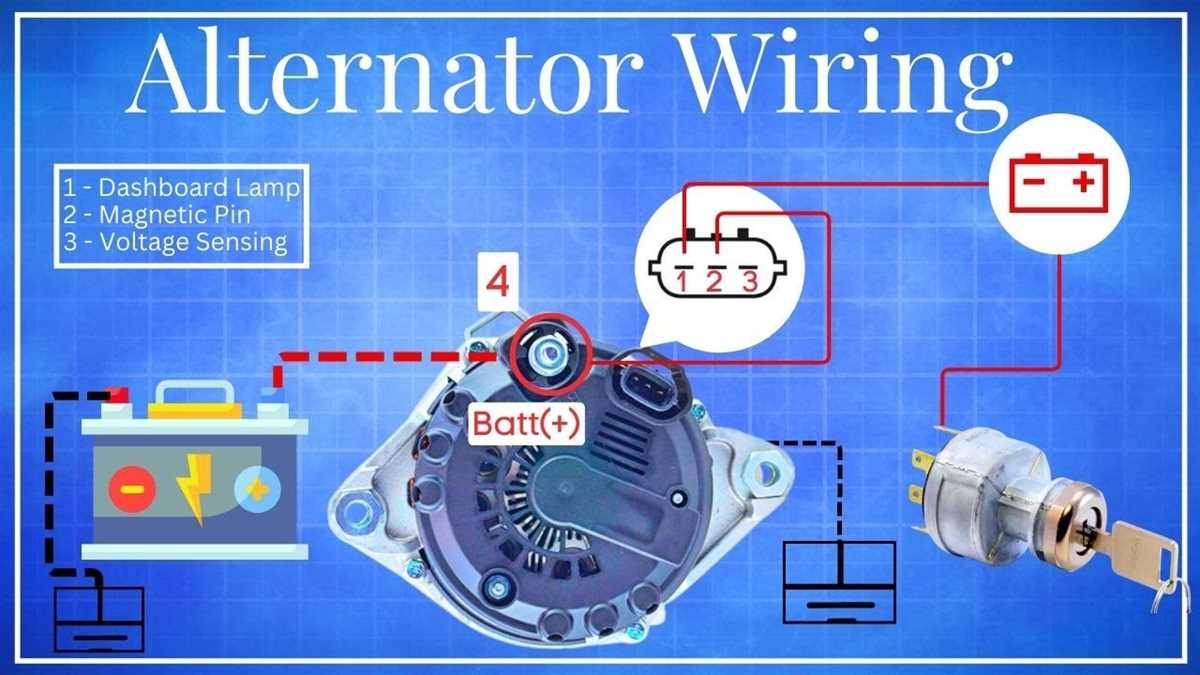

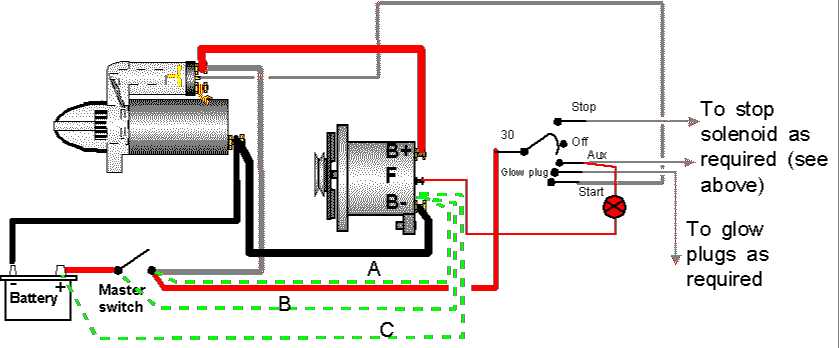

Identifying Key Alternator Terminals for Proper Wiring
Connect the main output stud directly to the battery positive terminal using a cable rated for at least 80 A; this point is often marked “B+” or “BAT” and must have a clean, corrosion-free surface to avoid voltage drops.
The voltage sensing lead, usually labeled “S” or “Sense,” should attach to the battery side of the fuse block or main distribution point. This ensures precise regulation by monitoring actual system voltage rather than the generator’s casing.
Field excitation terminals, marked “F” or “IGN,” control the rotor coil’s magnetism. A 10 A fuse inline with the ignition switch protects the wire; never connect directly to ground or high-current feeds, as it can burn the regulator.
Some models include a warning lamp connection, labeled “L” or “WARN.” It requires a low-current path to the dashboard indicator; leaving it disconnected can prevent initial rotor excitation in older units with lamp-based startup circuits.
Grounding points must be tight, unpainted, and free of oxidation. Chassis or dedicated mounting studs provide the return path; any resistance here can cause under-voltage conditions and premature wear of brushes or regulators.
