To ensure safe and proper connections, it’s crucial to understand how to correctly connect terminals and wires in an electrical setup. When handling power sources, identify which terminal corresponds to the live or ground connections. Each component in your setup needs to be properly aligned to avoid short circuits and ensure the system operates smoothly.
The first step is to correctly label the terminals. The live terminal should always be connected to the power input, while the ground or return path should be connected to the opposite side. Failure to follow this pattern may lead to malfunctioning of the entire system, or worse, damaging your devices and components.
Next, ensure the wires are correctly sized to handle the current flow. Using improperly sized wiring can cause overheating and potentially result in fire hazards. Double-check the amperage rating of the wires, and ensure the insulation is intact to prevent accidental short circuits or electrical failures.
Make sure to follow the recommended procedures for grounding. A solid ground connection helps to dissipate excess energy safely, preventing potential damage to your system and other connected equipment. Test your connections before powering up your device to ensure everything is set up correctly.
Finally, be mindful of any manufacturer-specific guidelines for wiring and setup. Always refer to the product manual to avoid issues and to maintain warranty validity. With these simple steps, your system should be set up safely and function optimally.

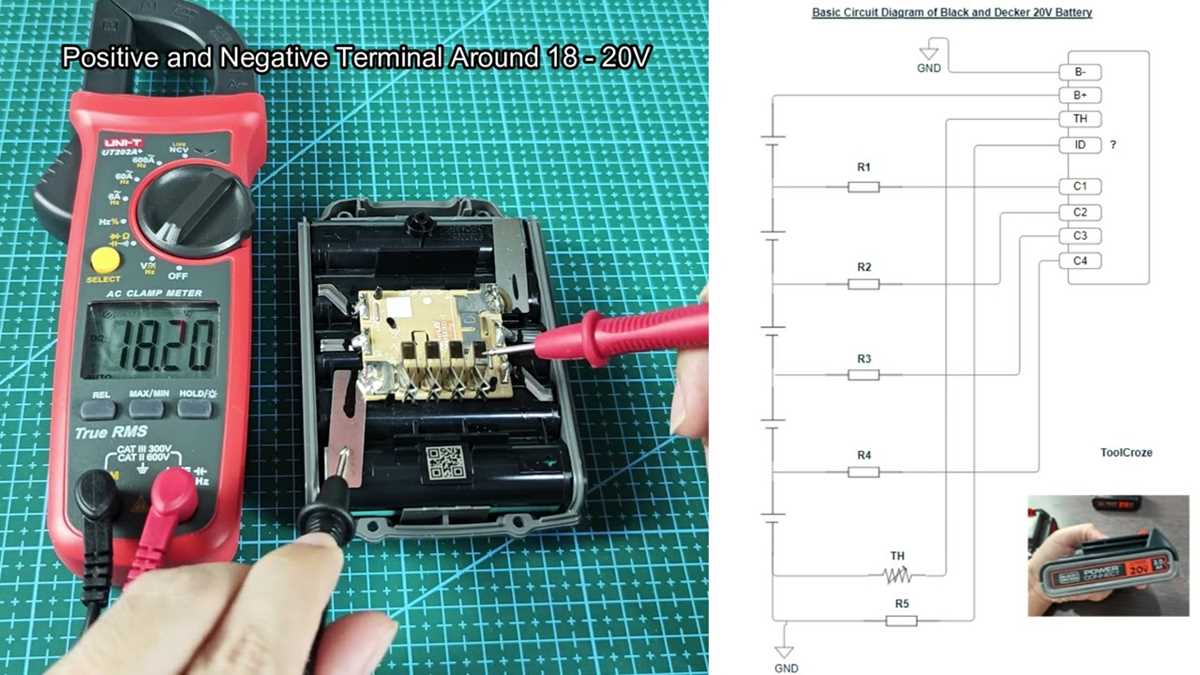

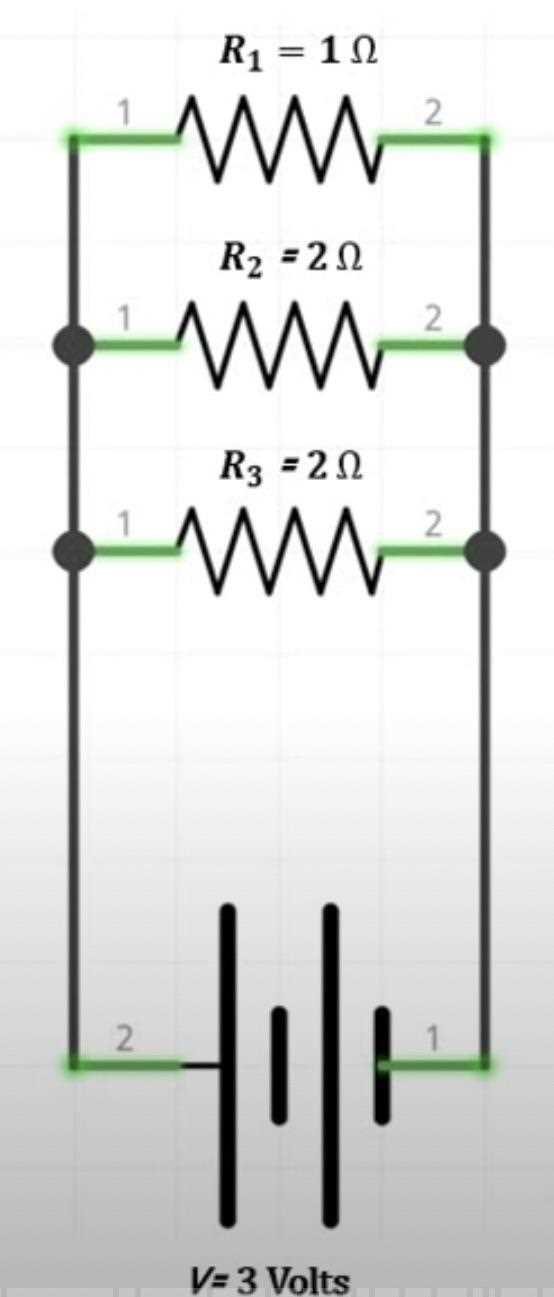

Circuit Diagram Battery Positive Negative

Begin by identifying the two terminals of the power source: one serves as the live connection, while the other acts as the return path. The live terminal should always be connected to the input voltage source. Ensure that you maintain proper polarity during the connection process to avoid equipment failure.
To guarantee a secure setup, use appropriately rated wires that can handle the expected current flow. If the wiring is too thin, it may overheat, causing damage to the components. It is crucial to match the wire gauge with the power requirements of the system to ensure safety and longevity.
Next, ensure that all connections are tight and insulated properly. Exposed wires or loose connections can lead to short circuits, posing a risk of damage or even fire. Use electrical tape or heat shrink tubing to insulate the wires and prevent contact with other conductive surfaces.
Finally, once all connections are complete, perform a test. Using a multimeter, check for continuity and confirm that the voltage levels are within the expected range. This step is important to verify that the system is set up correctly and is safe to operate.
How to Identify Positive and Negative Terminals on a Battery

To identify the correct terminals, look for the markings on the ends of the energy source. Typically, the positive side will have a “+” symbol, and the negative side will be marked with a “-“. This simple visual check is the first step in determining the correct polarity.
Another method is to examine the physical design of the terminals. The positive terminal is often larger in size compared to the negative one. This is especially common in cylindrical or rectangular types of sources, where the positive terminal might also feature a raised lip or protrusion.
If the markings are unclear, check the voltage ratings and manufacturers’ specifications. Most devices will have the polarity explicitly stated in their technical documentation. If you don’t have access to this information, you can measure the voltage across the terminals using a multimeter.
When using a multimeter, set the device to measure DC voltage. Connect the black probe to one terminal and the red probe to the other. The multimeter will show a positive reading when the red probe is on the positive terminal and the black probe is on the negative terminal.
For more complex power sources, like sealed types, you may also notice the negative terminal often has a slightly different texture or finish, such as a smooth or slightly duller appearance compared to the positive terminal, which might appear shinier or have a rougher texture.
In some cases, a specific color is used to distinguish between the terminals. For example, some power sources use red for the positive terminal and black for the negative. This color-coding system is widely adopted in various industries for simplicity and quick identification.
Lastly, always verify the polarity before connecting your load or circuit to prevent any short-circuits or equipment damage. Even if the markings seem clear, double-check using the methods outlined above to ensure safe operation.
