For anyone installing a combination unit with both an air circulator and a light source, precise connections are critical for safety and functionality. The key to a successful setup lies in understanding the right approach to connecting the power supply, control switches, and the respective fixtures. Always ensure the circuit breaker is turned off before handling any connections.
Step 1: Begin by identifying the two key power cables that supply energy to the fixture. Typically, you will find a live wire (usually black or red) and a neutral wire (white) from the electrical panel. These need to be securely connected to their corresponding terminals in the junction box of the fixture. A ground wire (green or copper) should also be connected to ensure proper grounding of the entire unit.
Step 2: For a two-way control setup, the most common method is using a switch that allows independent control of both components. One switch controls the illumination, and the other regulates the circulation speed. The switches should be wired in accordance with their designated terminals, with proper insulation to prevent short circuits.
Step 3: After completing the connections, securely mount the fixture to the ceiling, ensuring that all connections are properly covered and insulated. Test the unit to ensure it functions as expected, confirming both parts are operational and no wiring issues are present.
Always double-check the connections and consider consulting a certified electrician if you’re uncertain about any steps. Safety should always be the primary concern during installation.
HTML
Proper Connection of Electrical Components for Multi-Unit Fixtures
To correctly wire a combination unit with illumination and air circulation, first ensure the power is disconnected from the main breaker. Identify the wiring requirements for each individual component, such as the bulbs and motor assembly, to prevent misconnections. Make sure the circuit can handle the total wattage and amperage, factoring in both parts of the installation.
Correct Placement of Junctions and Switches
The next step is to place the necessary junction boxes. Separate the control of each feature by using different switches or a specialized multi-switch setup. Ensure the motor’s power leads are correctly connected to the designated line while the bulb assembly has its own dedicated line, usually marked as a switched live wire. You can group the wires inside a single junction box if space allows, but keep the pathways distinct to prevent short circuits.
If your installation uses a wall-mounted control, the switch box should include both a power lead for the fan assembly and the light source. In such a case, you may need a two-way switch with separate terminals for each. Ensure you’re following the manufacturer’s instructions carefully regarding wire color coding, typically red for live and black for neutral.
Securing Proper Grounding and Final Checks
Ground all parts of the fixture securely to prevent any electrical hazard. Both the motor unit and the bulb holder should be grounded through separate leads. After connecting, tighten all terminal screws and check continuity with a multimeter. Once everything is secure, power up the circuit and test each component independently before completing the installation.
How to Wire a Ceiling Fan and Light with Separate Switches
For a setup where both components are controlled independently, ensure that the power supply to the unit is turned off at the breaker. Begin by confirming the type of switch you will be using, ensuring each switch is rated to handle the load of either the motor or the illumination device.

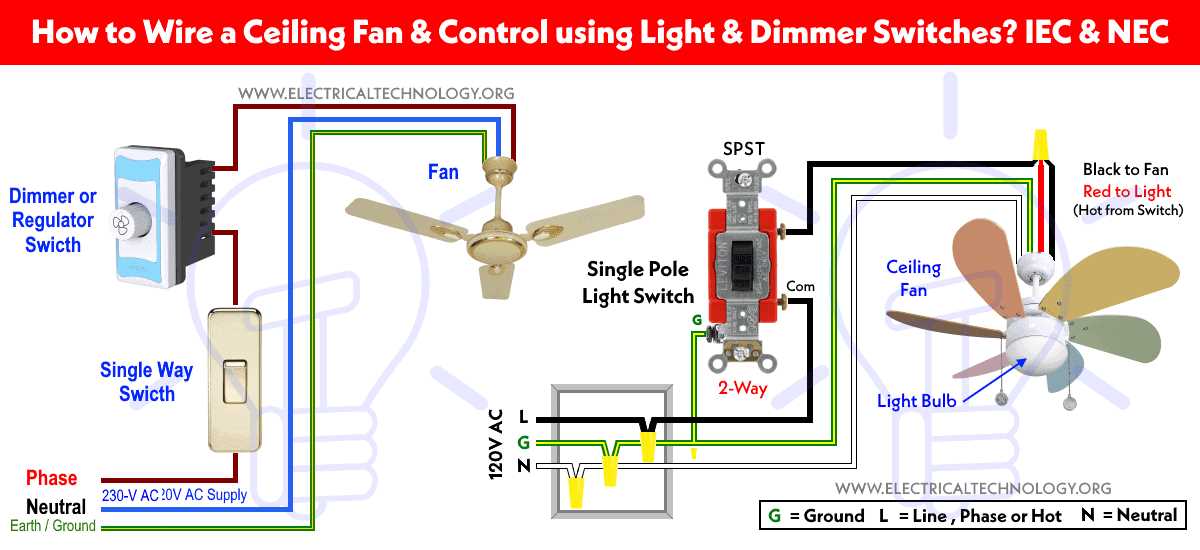

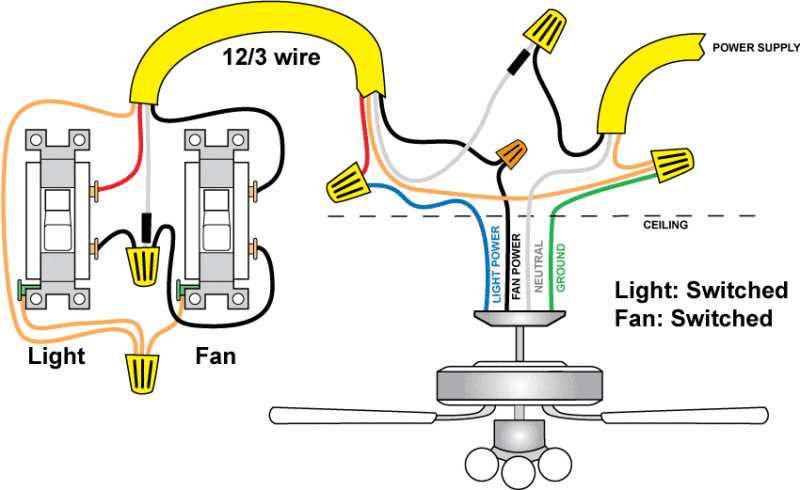

The primary goal is to provide separate connections for the two parts of the assembly. For this, you’ll need a 12-3 cable, which includes a black, red, and white wire, along with a ground wire. The black wire will control the motor, the red wire will control the lights, and the white wire is your neutral connection.
Connecting the Power Source
At the junction box, connect the white wire from the power supply to the neutral terminal of the fan and the light fixture. The black wire from the power line will connect to the black wire on the fan unit, which is the motor control. The red wire will link to the corresponding terminal for the illumination system, which you plan to control with the separate switch.

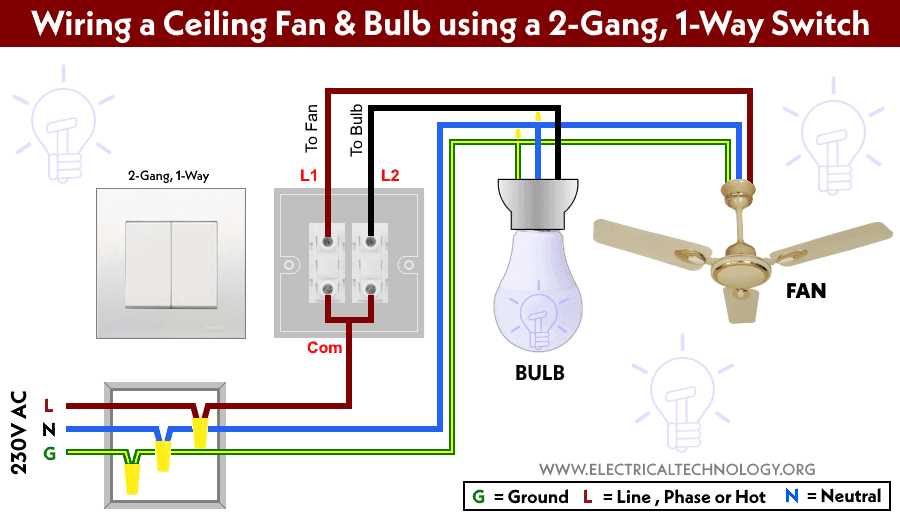

Installing the Switches
Mount two single-pole switches in your electrical box. The black wire from the supply should be connected to the first switch, which will control the fan motor. The red wire will connect to the second switch, controlling the lighting system. Ensure that the ground wire is connected to the grounding terminal of both switches and the fan unit.
After both switches are securely mounted, connect the neutral wire to the fixture’s neutral terminal. This ensures that both the fan and light share the same neutral, eliminating any interference in their operations. Check that all connections are tightly secured to avoid potential issues.
Once the switches and fixture are wired properly, restore power from the breaker panel. Test the system by flipping both switches. Each should control the designated component without affecting the other. The fan motor should operate independently from the light, confirming the correct installation of separate control lines.
Lastly, if the fan features additional functions like speed control, ensure that the wiring allows for such options. You may need a special switch or module to support speed adjustments without interfering with the lighting operation.
