For optimal performance in network setups, understanding the layout and proper arrangement of connections is key. When setting up cables for high-speed data transfer, you need to ensure correct pin configurations and avoid common errors that can impact signal quality. Begin by identifying the correct order for each wire in the connector and follow a systematic approach for termination.
One of the most important aspects of the setup is ensuring that the pairs are correctly twisted and that each connection maintains its intended purpose. Following a specific color-coding standard, such as T568A or T568B, helps avoid confusion and ensures compatibility between different devices and networks. Make sure to double-check the connections, as mistakes in the wiring can result in poor performance or complete signal failure.
Once the wires are terminated, testing the cable with a network tester is a crucial step to verify the quality of the connection. This test ensures that the cable supports the desired speeds and is free of shorts or wiring mistakes. Always make sure the terminations are secure and the connectors are properly seated to avoid any loose connections or weak signal paths.
Understanding the Layout for High-Speed Data Connections
To achieve maximum performance with high-speed networks, ensure that the cables are arranged with the correct pin configuration. The key step is selecting the right color-code standard, either T568A or T568B, and ensuring that each wire is placed according to the appropriate pairing. This ensures that signals pass through correctly without interference, making data transfer efficient and stable.
After securing the connections, it’s important to verify the integrity of the installation. Each end of the cable should match the expected wiring pattern, with the right order of twisted pairs inside the connector. Any deviation from the standard can cause issues like signal loss or slower speeds. Always check the terminations carefully to prevent connectivity issues.
Once the connections are made, testing the cable with a network tester is a must. This helps confirm that the setup supports desired speeds and there are no faults like cross-talk or miswiring. Testing should be done before finalizing the setup to ensure optimal performance in a live environment.
Understanding the Pinout Configuration for Cat 6 Cables

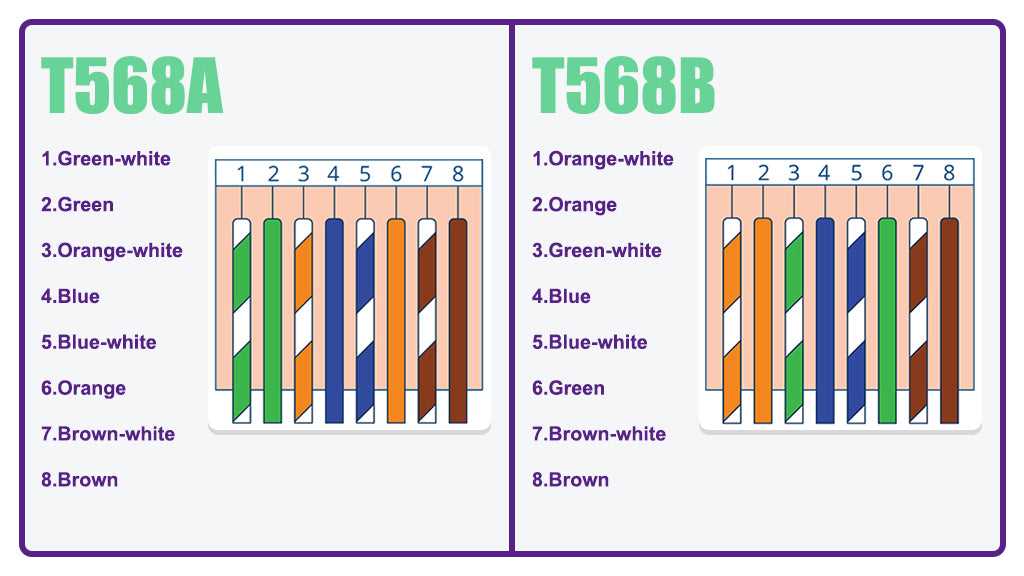

The pinout configuration of a network cable determines the arrangement of wires inside the cable. For optimal performance, it’s critical to follow a standardized color-coding scheme, such as T568A or T568B, to ensure the proper connection of each wire within the RJ45 connector. Both wiring schemes serve the same purpose but differ in the order of wire placement, so consistency is key during installation.
In the T568A configuration, the pins are arranged with the green pair in the first two positions, followed by the orange, blue, and brown pairs. This setup is commonly used for new installations and is recommended for applications requiring minimal crosstalk and interference. Ensure that each pair is twisted correctly to maintain signal integrity.
For the T568B configuration, the primary difference is that the orange pair occupies the first two positions, followed by the green, blue, and brown pairs. This setup is often used in existing installations and may be compatible with older infrastructure. Like T568A, the order must be strictly followed to avoid connectivity problems.
When assembling the cables, pay close attention to the placement of the wires in the connector. Improper pinout can lead to issues such as no connectivity, intermittent signal drops, or reduced network speed. Double-check that the wire colors match the correct positions for the intended configuration.
Testing the finished cables is crucial for confirming proper pinout arrangement. Use a network cable tester to ensure that each wire in the connector is correctly connected to its corresponding pin. If any errors are found, rewire the connector and retest to guarantee a solid and reliable connection.
