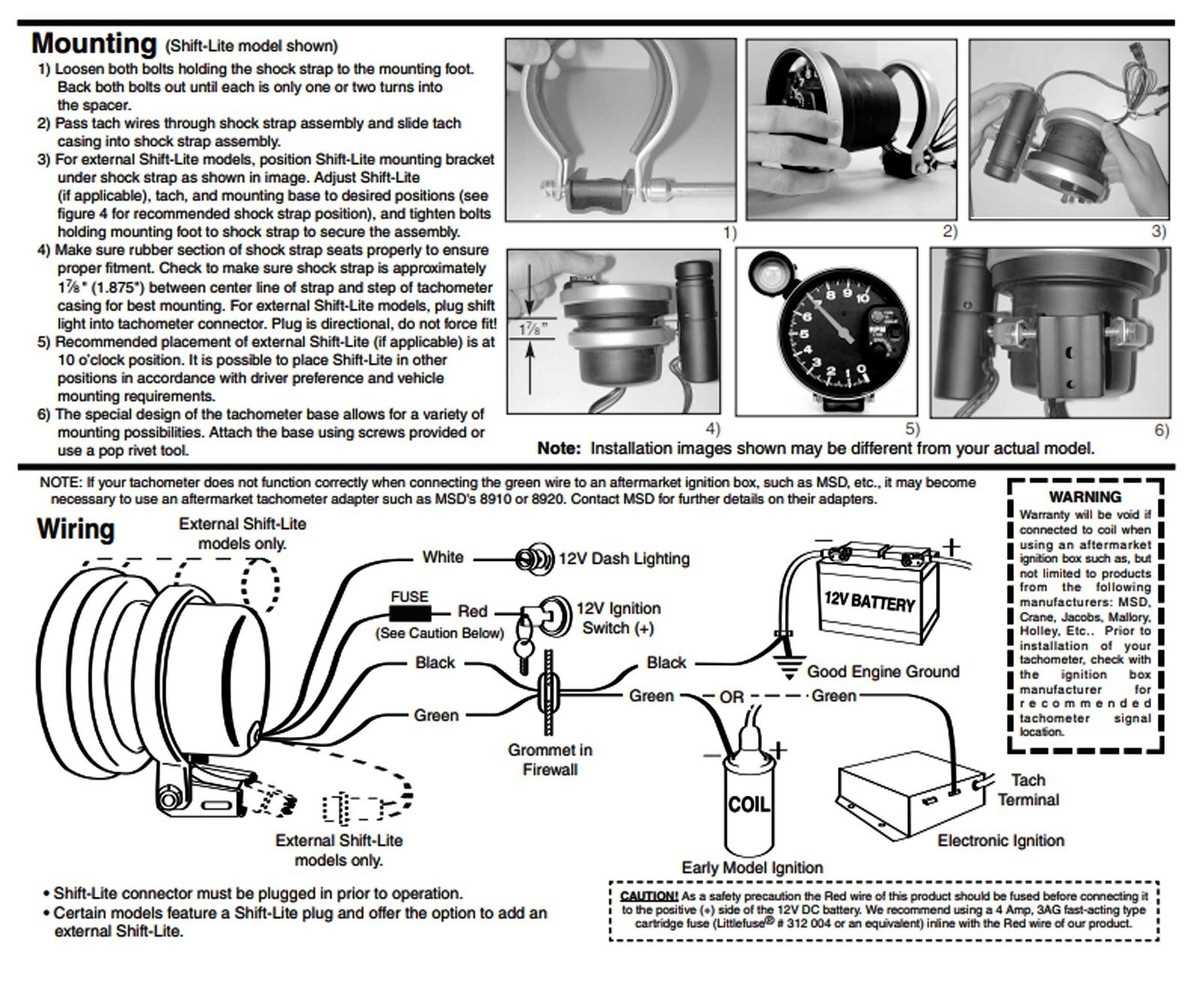

Connect the sensor lead directly to the negative terminal of the ignition coil to capture pulse signals without interference. Ensure the connection is firm and insulated to prevent voltage drops.
Attach the power feed to a switched 12-volt source that is capable of handling at least 2 amps. Avoid tapping into circuits with fluctuating loads to maintain stable readings.
Ground the unit on a clean metal surface close to the sensor location. A poor ground can cause erratic needle movement and false RPM spikes.
Verify signal polarity before securing terminals to prevent reversed readings. Some meters require negative triggering, while others respond to positive pulses.
Route all leads away from high-voltage sources such as ignition coils or alternator output to reduce electrical noise. Use twisted pair leads if possible to maintain signal integrity.
Perform a bench calibration after all connections to ensure the pointer aligns with known RPM values. Adjust the scaling screw or software offset to match the engine’s firing characteristics.
Terminal Connections and Signal Routing for Accurate RPM Readings

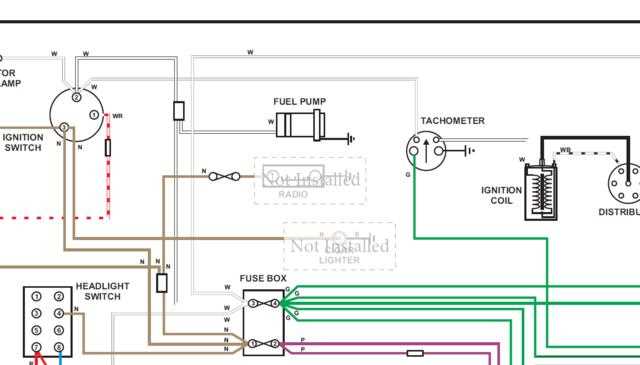

Connect the signal input directly to the negative side of the ignition coil or the dedicated pulse output from the engine control module. Ensure the lead is shielded and kept separate from high-current lines to avoid false spikes. Attach the power terminal to a switched 12-volt source capable of sustaining at least 2 amps and secure a reliable ground close to the sensor for consistent operation.
Route all leads away from alternator and starter cables to minimize electromagnetic interference. Use a twisted pair for the signal and ground leads when possible. After connections, perform a calibration check using a hand-held RPM tester or engine speed simulator to confirm accurate needle response and adjust the scaling as required for the specific ignition type.
Identifying Terminals and Signal Inputs for Correct Installation
Locate the positive and negative terminals on the gauge before making any connections. The positive lead should connect to a switched 12-volt source capable of sustaining at least 2 amps, while the negative lead must be grounded to the chassis or engine block to maintain signal stability and prevent erratic readings.
Recognizing Signal Input Points
Identify the dedicated pulse input on the back of the gauge for the engine’s ignition signal. Use a shielded lead to connect directly to the coil negative or ECU pulse output, keeping it separate from high-current wires to reduce interference. Confirm the connection type matches the ignition system, whether it is single-coil, multi-coil, or distributorless.
Verifying Proper Terminal Connections
After attaching leads, perform a quick continuity and voltage check to ensure proper installation. Observe the needle response at idle and during a controlled rev test to verify the gauge accurately reflects engine speed. Adjust scaling settings if necessary for accurate RPM tracking across the full range of operation.
