Connect the ground conductor first and attach it to the large terminal inside the 7-pin vehicle connector. This conductor usually uses white insulation and links the tow vehicle frame with the lighting and braking system on the towed unit. A secure ground path prevents dim lamps, unstable brake controller signals, and voltage drops across long cable runs.
Each contact inside the seven-pin socket carries a dedicated electrical function. Typical assignments include tail lamps, left turn signal, right turn signal, electric brake control, reverse lamps, battery charge line, and ground. Standard RV-style connectors operate on 12-volt DC supplied by the tow vehicle charging system. Identify each terminal by its clock-position layout inside the connector housing before attaching conductors.
Use color-coded conductors to prevent incorrect connections. White commonly represents ground, brown feeds tail lamps, yellow carries the left indicator signal, and green carries the right indicator signal. Blue often routes the brake controller output, black delivers auxiliary battery power, and purple connects to reverse lamps. Mark every conductor before installation and tighten terminal screws firmly so vibration during towing does not loosen electrical contacts.

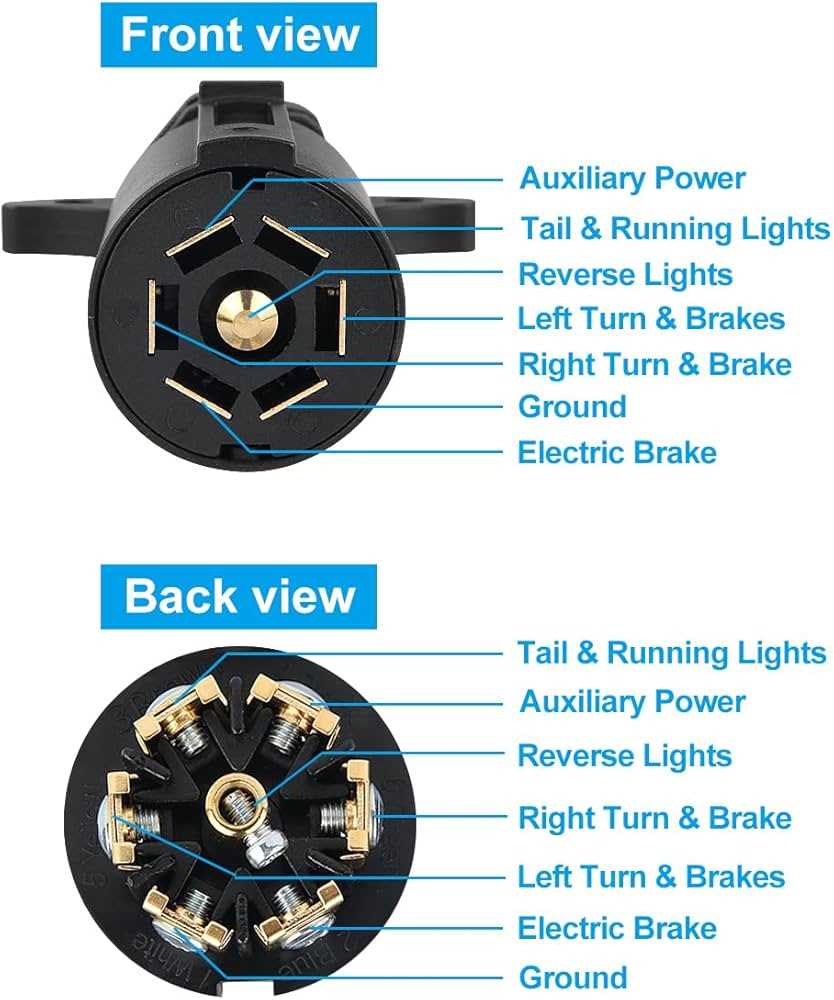

7 Round Trailer Plug Wiring Diagram with Pin Layout and Color Code Guide
Connect the ground conductor to the large terminal at the center of the seven-pin vehicle connector before attaching any other line. This white insulated conductor links the vehicle frame with the lighting and brake systems of the towed unit. A solid ground path keeps voltage stable and prevents dim lamps or erratic brake controller signals.
Identify each terminal by its clock position inside the seven-pin vehicle socket. The center contact usually carries reverse lamp power, while the surrounding terminals handle signal lamps, brake controller output, running lamps, auxiliary power, and ground. Most systems operate on 12-volt DC supplied by the vehicle charging system.
Follow standard color assignments used in many RV style connectors. Brown insulation typically feeds tail lamps, yellow supplies the left indicator circuit, and green supplies the right indicator circuit. Blue commonly routes the brake controller output to the electric brake magnets.
Attach the auxiliary power line using a black conductor connected to the vehicle battery through a 30-amp fuse. This line maintains charge in the towed unit battery and powers interior equipment during travel.
Use copper conductors rated at least 12 AWG for brake control and auxiliary power lines because these circuits carry higher current. Lighting circuits may use 14 AWG conductors in many installations.
Secure each conductor inside the connector housing using compression screws or crimped terminals. Loose terminals create resistance that causes heating and intermittent signal operation during road vibration.
After installation, test every function using a multimeter or test lamp. Activate left indicator, right indicator, tail lamps, brake pedal, and reverse gear on the tow vehicle. Correct voltage at each terminal confirms proper electrical connections between vehicle and towed unit.
7 Round Trailer Plug Pin Functions for Brake Controller Lights and Ground
Attach the ground conductor first to the large terminal connected to the vehicle frame. This white insulated line stabilizes voltage across all lighting and braking circuits and prevents erratic signals while towing.
Each contact inside the seven-pin vehicle connector serves a specific electrical task that links the tow vehicle systems with the towed unit lighting and brake equipment.
- White conductor → ground connection to vehicle chassis
- Brown conductor → tail and marker lamps
- Yellow conductor → left turn signal and left brake lamp
- Green conductor → right turn signal and right brake lamp
- Blue conductor → electric brake controller output
- Black conductor → auxiliary 12-volt battery charge line
- Purple conductor → reverse lamps or backup signal
Brake controller output travels through the blue conductor and activates electromagnets inside the braking assemblies of the towed unit. Current from this line typically ranges between 3 and 20 amps depending on brake count and controller settings.
Test every terminal after installation using a multimeter or test lamp while activating signals on the tow vehicle. Confirm tail lamps illuminate with the headlamp switch, indicators flash independently, reverse gear energizes the backup line, and the brake pedal sends voltage through the blue conductor.
