For proper connection between your vehicle and a hauling unit, follow this simple guide to connect the seven pins. Each pin serves a distinct function, and understanding them will ensure your system operates as expected. Pin 1 connects to the ground, while Pin 2 powers your tail lights. Pin 3 controls the brake lights, with Pin 4 serving the left turn signal. Pin 5 works for the right turn signal, Pin 6 carries the reverse light signal, and Pin 7 is typically used for the auxiliary power, like a battery charger or running lights.
Once you’ve identified the role of each pin, start by choosing the right connector that matches your vehicle’s setup. Ensure all connections are securely attached, using the proper gauge of wire for each circuit. Avoid using wire that’s too thin for high-power components, like the brake or reverse light systems, to prevent overheating or malfunction.
Lastly, check your connections for any frays or damage after installation. Over time, connections can loosen, and insulation can wear away, leading to poor performance or complete failure. If the electrical system fails to operate as intended, start troubleshooting by checking each connection and using a multimeter to test for power at each pin. This way, you can ensure a safe and reliable link between your vehicle and the unit you’re towing.
7 Pin Connector Setup and Functions
For a reliable connection between your vehicle and a towing unit, use a seven-pin setup. Each pin serves a unique function to ensure proper operation of lights and signals. The first pin is typically used for ground, ensuring a stable electrical return. The second pin powers the tail lights, while the third controls the brake lights. Pins four and five are designated for the left and right turn signals, respectively, while pin six powers the reverse lights. Pin seven is used for auxiliary power, which can support features like charging the towing unit’s battery or powering additional lights.
When connecting the wires, it’s important to match each function to the corresponding pin on the connector. Double-check that the wiring is done securely and that all connections are insulated properly to prevent shorts. If you’re unsure of the connections, use a multimeter to test each function before use. This ensures that each signal, from braking to reverse, works correctly and safely. Regular inspection of the connector and wiring for wear or damage will keep the electrical system functioning properly over time.

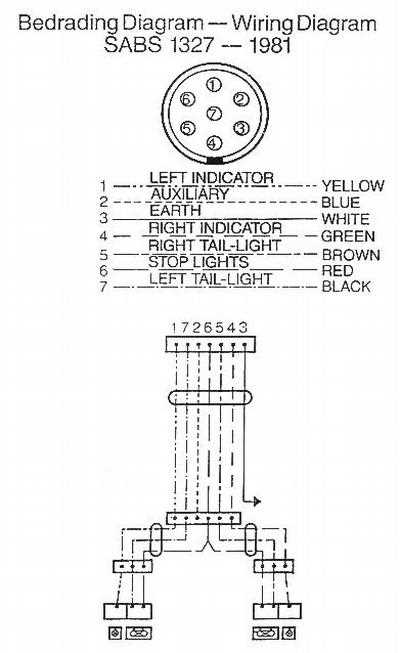

Understanding the Wiring Colors and Functions of a 7 Pin Connector
Each of the seven connections on the plug serves a specific function to ensure that all electrical systems work seamlessly. The first pin is commonly used for the ground connection, which should be a white wire. This wire provides a path back to the vehicle’s battery, completing the circuit and preventing electrical issues like short circuits.
Function of Tail and Brake Lights
The second pin is typically associated with the tail lights and is usually wired with a brown wire. It ensures that the rear lights are powered when the vehicle’s lights are on. Pin three controls the brake lights and is often linked to a red wire. This wire signals when the brakes are applied, activating the brake lights on both the towing vehicle and the unit being pulled.
Turn Signals and Reverse Lights
Pins four and five handle the turn signals: left and right. The left turn signal is usually connected with a yellow wire, while the right turn signal is connected with a green wire. These are crucial for indicating turns and ensuring safety on the road. Pin six is used for the reverse lights, typically linked to a purple wire, which activates when the vehicle is in reverse and illuminates the reverse lights on the unit.
Finally, pin seven is commonly used for auxiliary power. This connection is often wired with a black or blue wire and can be used for various purposes, such as powering additional lights or charging a battery in the hauling unit. It is important to ensure this wire is connected securely and is capable of handling the required load.
By correctly understanding and matching the colors and functions of each wire, you can avoid installation errors and ensure a safe and fully functional connection. Always double-check each wire’s position and function using a multimeter before finalizing the setup to avoid faults during operation.
