If you need to connect a 7-wire vehicle setup to a 4-wire connector, follow this specific procedure for reliable results. A common conversion occurs when towing, as older models or different systems use fewer connections, and compatibility is essential for safe operation. This guide provides practical steps to adapt the system correctly, ensuring smooth functionality.
The most significant change occurs with the number of circuits and their distribution. The 7-wire model includes functions for electric brakes, reverse lights, and additional lights, while the 4-wire version typically supports basic lighting–tail lights, brake lights, and turn signals. Understanding which connections are removed or combined during the adaptation process is key to maintaining proper lighting and control over the towed equipment.
Be sure to check the color-coding of each wire in both setups before making any adjustments. In many cases, adapters are available, but for a more permanent solution, you can rewire the system to match the fewer connections needed, saving space and complexity. Always verify the connections once completed to avoid malfunctioning signals or potential safety hazards.

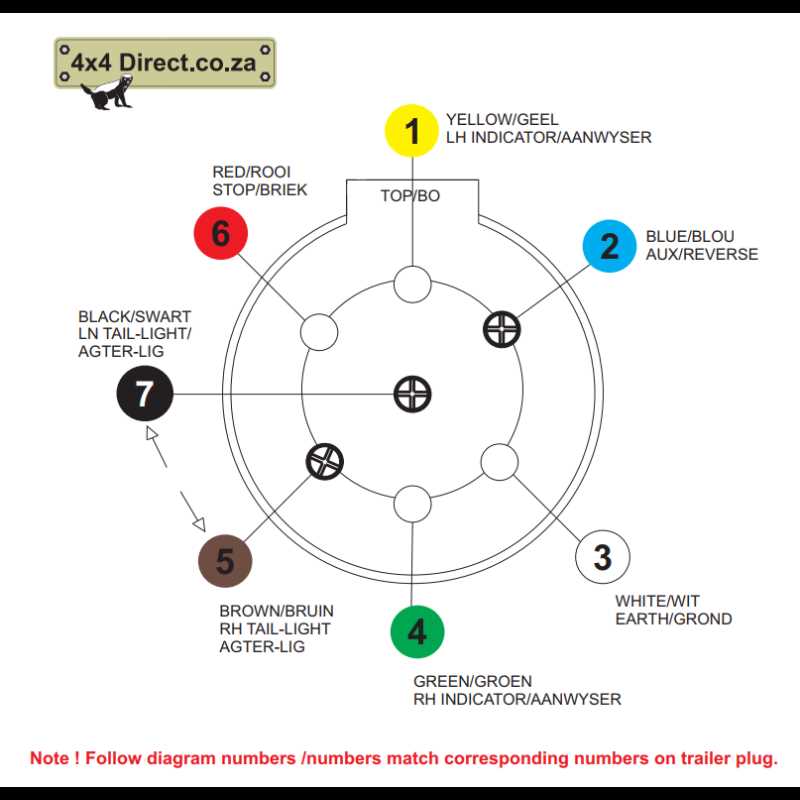

7 Pin to 4 Pin Vehicle Connector Conversion
To convert a 7-wire connection to a 4-wire setup, first identify the functions that you will need to keep. For a basic connection, the common circuits include the tail lights, brake lights, and turn signals. The additional connections found in the 7-wire model, such as electric brakes and reverse lights, will be discarded or combined depending on the new requirements. To ensure a clean and safe adaptation, strip each wire carefully and match it to the corresponding function of the 4-wire system.
If you’re making the conversion yourself, use high-quality connectors and securely fasten each wire to avoid loose connections that may cause malfunctions. After completing the connection, check for proper functionality by testing all lights and signals. If you find any issues, double-check the wire order and make sure the connections are intact. Additionally, consider using a 7-to-4 adapter if you’re looking for a simpler solution, though a hard-wired conversion is often more durable for long-term use.
How to Convert a 7 Pin Trailer Plug to 4 Pin Wiring
Begin by disconnecting the power to your vehicle and the other unit. Once the power is off, remove the existing 7-wire connector. You’ll need to examine the color code for each wire. The 7-wire system typically includes connections for tail lights, brake lights, left and right turn signals, reverse lights, electric brakes, and auxiliary power. The 4-wire connection will only require the basic circuits: the tail lights, brake lights, and turn signals.
Carefully strip the insulation from each wire in the 7-wire system. Identify the essential wires that correspond to the basic functions you need for the 4-wire setup. For instance, the ground, left turn, right turn, brake, and tail lights should be matched to their appropriate positions in the 4-wire connector. If your existing setup has additional wires for functions like reverse lights or electric brakes, you can either leave them disconnected or use an adapter if needed.
Once the wires are properly identified, cut the 7-wire connector off and attach the 4-wire setup by following the color coding for the basic connections. Use a wire stripper and crimping tool to ensure each connection is secure. Make sure to use high-quality, insulated connectors to prevent corrosion over time. If you’re unsure about wire colors, refer to a manual or look up standard color codes for trailer connections to ensure accuracy.
After the connection is complete, check the functionality of each circuit before finalizing the installation. Test the brake lights, turn signals, and tail lights on both the vehicle and the towed unit to ensure everything works as expected. If any issues arise, inspect the wire connections and make sure they are correctly matched and securely fastened. Regularly inspect the setup for wear and tear to ensure reliable performance on the road.
