Connect the main power lines first by matching the positive and negative terminals according to the manufacturer’s markings. Incorrect alignment can cause short circuits or damage to the speed regulation module.
Verify signal and throttle leads before attaching the drive system. Use a multimeter to confirm voltage levels between the input pins and ensure the brake cutoff line is properly linked to avoid accidental acceleration.
Organize the phase and sensor cables to prevent tangling or interference with moving parts. Keep hall sensor wires separate from high-current lines to maintain accurate rotation feedback and smooth operation of the drive unit.
Double-check all connectors and fuses for corrosion or loose contact. Tighten screws to recommended torque values and insulate exposed ends with heat-shrink tubing to prevent sparks or electrical faults during operation.
Test the system incrementally by powering the battery pack in low-amp mode first. Confirm that each component responds correctly before engaging full power to avoid component burnout or control malfunctions.

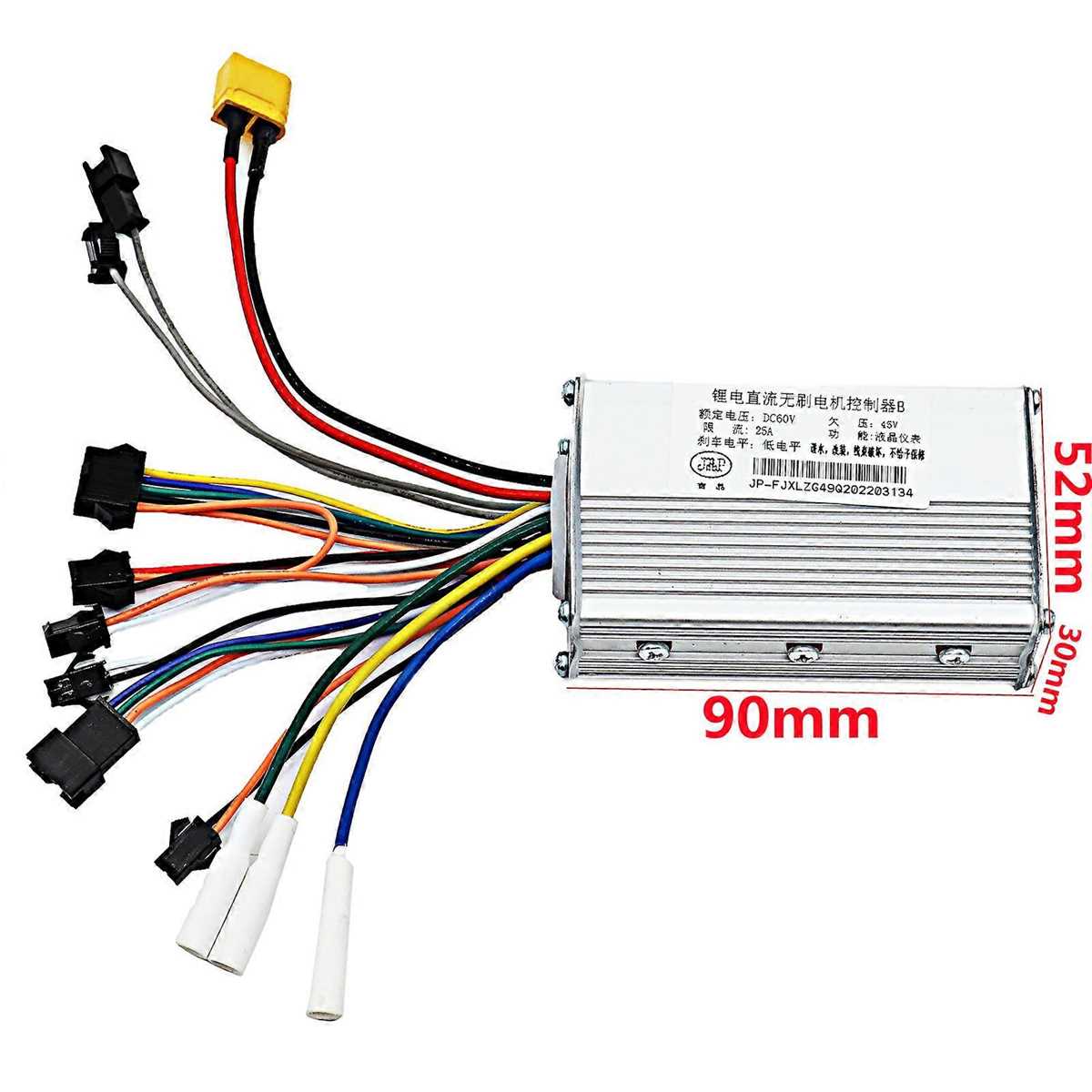

60v Electric Scooter Controller Wiring Diagram
Connect the main battery leads first following the polarity labels on the power module. Reversing the positive and negative connections can permanently damage the speed regulator and the drive circuitry.
Check sensor connections carefully before attaching the drive unit. Hall sensors usually have three or five wires, and each must match the corresponding phase pin to maintain correct rotation feedback and prevent stalling.
Group the phase cables and route them away from signal lines to reduce interference. Use protective sleeves or clips to prevent contact with moving parts and to avoid insulation wear over time.
Inspect the throttle and brake inputs. Measure the throttle output voltage to ensure it falls within 0–5 volts and verify the brake switch cuts power properly. Faulty connections here can cause sudden acceleration or failure to stop.
Examine all connectors and fuses for looseness, corrosion, or damaged pins. Replace worn terminals and apply heat-shrink tubing to exposed ends to prevent short circuits and ensure stable current flow.
- Test the system in low-current mode initially
- Monitor the temperature of the speed regulation board during startup
- Confirm each signal wire triggers the correct display or indicator
- Secure cable bundles to prevent movement under vibration
- Label final connections for future maintenance

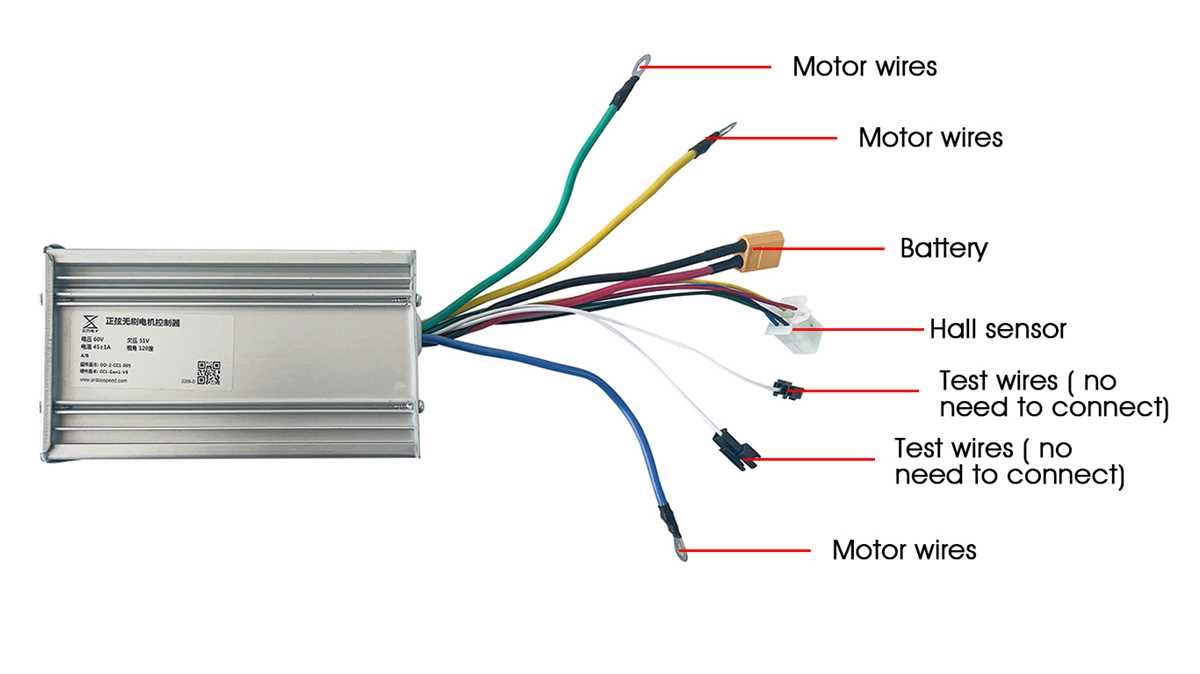

Identifying Controller Wires and Color Codes
Locate the main power leads and identify red for positive and black for negative. Confirm the gauge matches the recommended amperage to prevent overheating.
Check the phase lines from the drive motor, typically colored yellow, green, and blue. Each wire must align with the correct input pin to maintain smooth rotation and prevent cogging.
Identify sensor cables which usually come in red, black, and three thinner colors for hall effect signals. Confirm the order of these signals using a multimeter or reference chart to avoid misreading motor position.
Locate the brake cutoff line, often a single white or blue wire. Verify continuity when the brake lever is engaged to ensure the drive shuts off immediately under braking conditions.
Check throttle connections with red, black, and green wires. Measure the voltage output while moving the throttle lever to confirm a consistent range between 0 and 5 volts for accurate speed control.
Identify auxiliary outputs such as lights or display connections. Trace the small gauge wires and match them to terminals labeled on the speed module to prevent accidental short circuits.
Label all connections after identification. Use colored heat-shrink tubing or printed tags to mark each line for future maintenance or troubleshooting.
Verify all connections before applying full power. Double-check each color and signal to prevent reversed phases, faulty sensor readings, or damage to the drive unit during startup.
