Connect the IC with a 12V DC supply and precise resistor-capacitor values to generate stable square wave output suitable for powering small loads. Using a 1kΩ resistor with a 0.1µF capacitor produces a frequency close to 50Hz, ideal for general purpose oscillation tasks.
Ensure all pin connections match the monostable or astable mode configuration depending on whether you need a single pulse or continuous oscillation. Incorrect pin assignments can cause erratic switching or prevent the IC from toggling properly.
Use heat sinks on power transistors and check load ratings to prevent thermal stress during prolonged operation. Connecting directly to high-current devices without proper buffering can damage both the IC and the output stage.
Verify timing intervals with an oscilloscope or frequency counter to confirm accurate waveform generation. Adjust the resistor and capacitor combination gradually to fine-tune pulse width and frequency for your specific application.
Maintain clean wiring and short leads for sensitive connections to reduce interference and voltage drops. Long or tangled connections can introduce noise and cause irregular switching behavior in the signal generator setup.

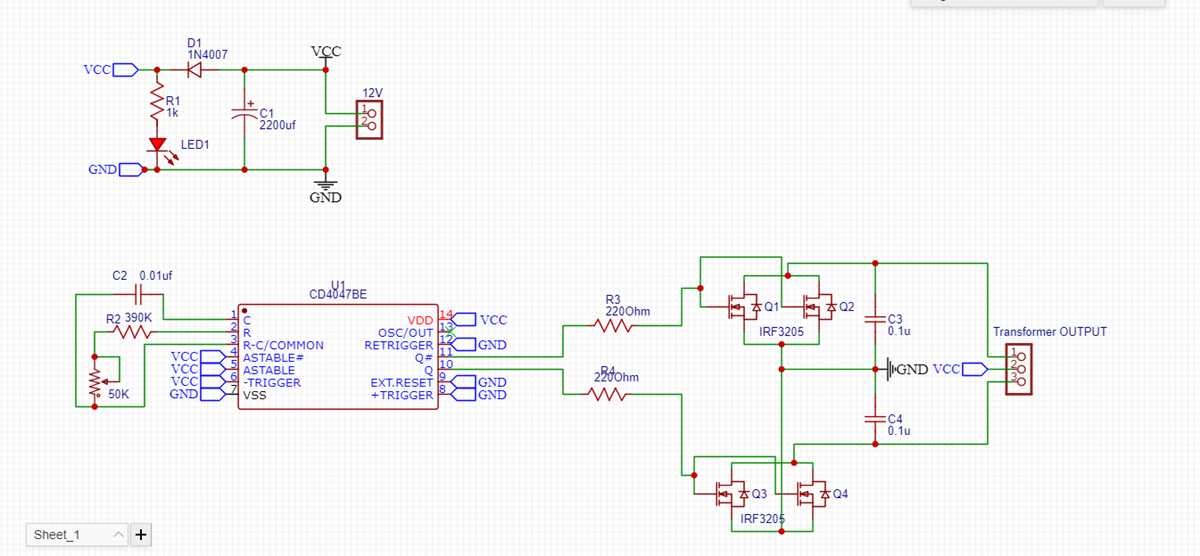

4047 IC Inverter Circuit Diagram with Component Layout and Functioning
Place the IC on a breadboard with all pins accessible and connect a 12V DC supply between the positive and ground rails. Use a 1kΩ resistor in series with a 0.1µF capacitor on the timing pins to produce a square waveform at roughly 50Hz. Ensure decoupling capacitors are close to the IC to stabilize voltage fluctuations during switching.
Follow the astable mode configuration for continuous oscillation. Pin connections should include:
- Pin 10 for output signal feed
- Pin 11 connected to the timing resistor
- Pin 12 linked to the timing capacitor
- Pin 14 to the positive voltage rail
- Pin 7 to ground
Include power transistors or MOSFETs at the output stage to handle higher load currents. Connect the transistor bases through 330Ω resistors to prevent excessive current draw from the IC. Use flyback diodes across inductive loads to avoid voltage spikes damaging the components.
Test the setup incrementally: start with no load to verify waveform integrity using an oscilloscope. Gradually introduce resistive loads and adjust the RC network to fine-tune frequency and duty cycle. Keep all wiring short and direct to minimize noise and maintain predictable switching behavior.
Step by Step Assembly of 4047 IC Inverter Circuit
Mount the IC securely on a breadboard or PCB ensuring all pins are straight and fully inserted. Connect the positive rail to a 12V DC supply and the ground rail to the negative terminal.
Attach timing components to the designated pins: use a 1kΩ resistor and a 0.1µF capacitor for generating a 50Hz oscillation. Place the capacitor close to the IC to reduce stray capacitance and maintain stable pulse width.
Connect the output pins to buffering transistors for load handling. Base resistors of 330Ω prevent overloading the IC while maintaining reliable switching of the connected devices.
Wire the power supply and load connections carefully to minimize voltage drops and interference. Use short, thick wires for current paths and twisted pairs for sensitive signals to reduce noise.
Check all connections before powering the setup. Incorrect wiring can cause overheating, erratic pulses, or damage to the IC. Verify resistor and capacitor placements against the configuration chart.
Test the assembled module incrementally: first without a load, then with low-resistance loads. Observe the waveform using an oscilloscope or frequency counter, adjusting the timing resistor or capacitor to fine-tune frequency and duty cycle for desired performance.
