To properly install a four-wire electrical outlet for an electric range, start by identifying the four conductors: two hot wires, a neutral wire, and a ground wire. The hot wires, usually red and black, are responsible for carrying the 240V current. The neutral wire (typically white) carries the return current, while the ground wire (green or bare) provides a safe path for fault currents to prevent electrical hazards.

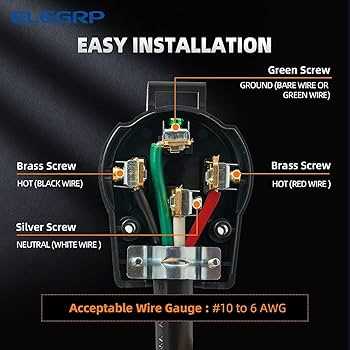

Ensure each conductor is securely connected to its corresponding terminal. The two hot wires should be attached to the terminals marked for “hot” connections. The neutral wire connects to the terminal marked for neutral, and the ground wire attaches to the grounding terminal. Double-check all connections to avoid any loose wires, which can lead to overheating or fire hazards.
For optimal safety and performance, use the correct wire gauge based on your electric range’s specifications. Typically, a 50-amp breaker is recommended, and you should use 6 AWG wire for the hot wires and 8 AWG for the neutral and ground. Always refer to the manufacturer’s guidelines and local electrical codes for specific requirements.
After making the connections, test the outlet with a multimeter to ensure the voltage is correctly distributed across the terminals. This step ensures the system is functioning as intended and reduces the risk of electrical issues down the line.
HTML
How to Set Up a 4-Conductor Electrical Connection
Ensure the proper configuration of the connection by using four separate conductors: two for power, one for the return path, and one for grounding. Connect the power wires to the terminals that supply voltage. The return conductor should be linked to the terminal that completes the circuit, while the ground wire connects to the grounding terminal for safety. Make sure that each conductor is attached firmly and correctly to prevent any hazards.
Power and Return Conductor Setup: The two live conductors, commonly colored black and red, must connect to their corresponding terminals on the appliance. The return wire, typically white, completes the circuit by linking back to the electrical panel. Properly maintaining the separation of power and return paths is crucial to avoid any electrical issues.
Grounding for Safety: A critical part of the setup involves connecting the ground wire, which is usually green or uninsulated, to the appliance’s grounding terminal. This serves as a protection measure in case of a fault or malfunction, redirecting any stray current to the earth. A reliable ground connection ensures that the device remains safe under normal usage conditions.
Once the connections are made, double-check the alignment of all terminals to ensure that each wire is secured. Incorrect installation could lead to poor appliance performance or, worse, create electrical risks. Always follow the color codes and recommended safety practices for a trouble-free installation.
HTML
For safe and reliable operation, always ensure that the correct number of wires are connected to the appliance’s terminal block. A typical setup involves four distinct conductors, each with a specific role. The first two wires, often referred to as hot wires, deliver power from the panel to the appliance. These are critical for ensuring that the device receives the necessary voltage for operation. One of these will typically be black, while the other is red, each carrying 120V in a split-phase system, totaling 240V when used together.
The third wire is neutral, usually colored white, and serves as the return path for the current. It ensures that the electricity can flow back safely to the power source after completing its task in the appliance. Lastly, the ground wire, commonly green or uninsulated, provides protection. It directs any stray current directly to the earth, preventing electrical shocks and reducing the risk of fire caused by short circuits.
Understanding the Four Wires: Hot, Neutral, Ground, and Second Hot
The two hot wires are essential in providing 240V to high-power appliances. Their function is to supply current to the unit’s heating elements or motors. Connecting them properly ensures that the appliance receives enough power for proper function. The neutral wire balances the electrical load and prevents damage by returning current safely to the source. A malfunction in the neutral connection could cause dangerous voltage imbalances or electrical faults.
The ground wire plays a key safety role. If there is a fault, such as a short circuit, this conductor directs excess current safely away from the appliance and into the earth. Always make sure that the ground is securely connected to prevent accidental electric shocks. For proper operation, all four wires should be securely connected according to the manufacturer’s specifications and local electrical codes.
