Disconnect the battery before handling any terminals to prevent short circuits or accidental activation. Identify each terminal on the control module and label them clearly to avoid confusion during assembly.
Match conductors by color codes according to the manufacturer’s specifications. Typically, one lead carries power, one provides ground, and the remaining two manage the activation signal and device output. Confirm the conductor gauge supports the current load to prevent overheating.
Verify continuity between terminals with a multimeter before securing connections. This ensures the paths are correct and reduces the risk of component malfunction or intermittent operation.
Fasten all terminals firmly using appropriate clips or screws. Ensure connections are tight to resist vibration, and insulate any exposed metal contacts with heat shrink tubing or tape to prevent accidental shorts.
Test the system briefly by reconnecting the battery and activating the control input. Observe the connected device to confirm smooth operation, then disconnect and inspect any irregular paths if the device does not respond correctly.

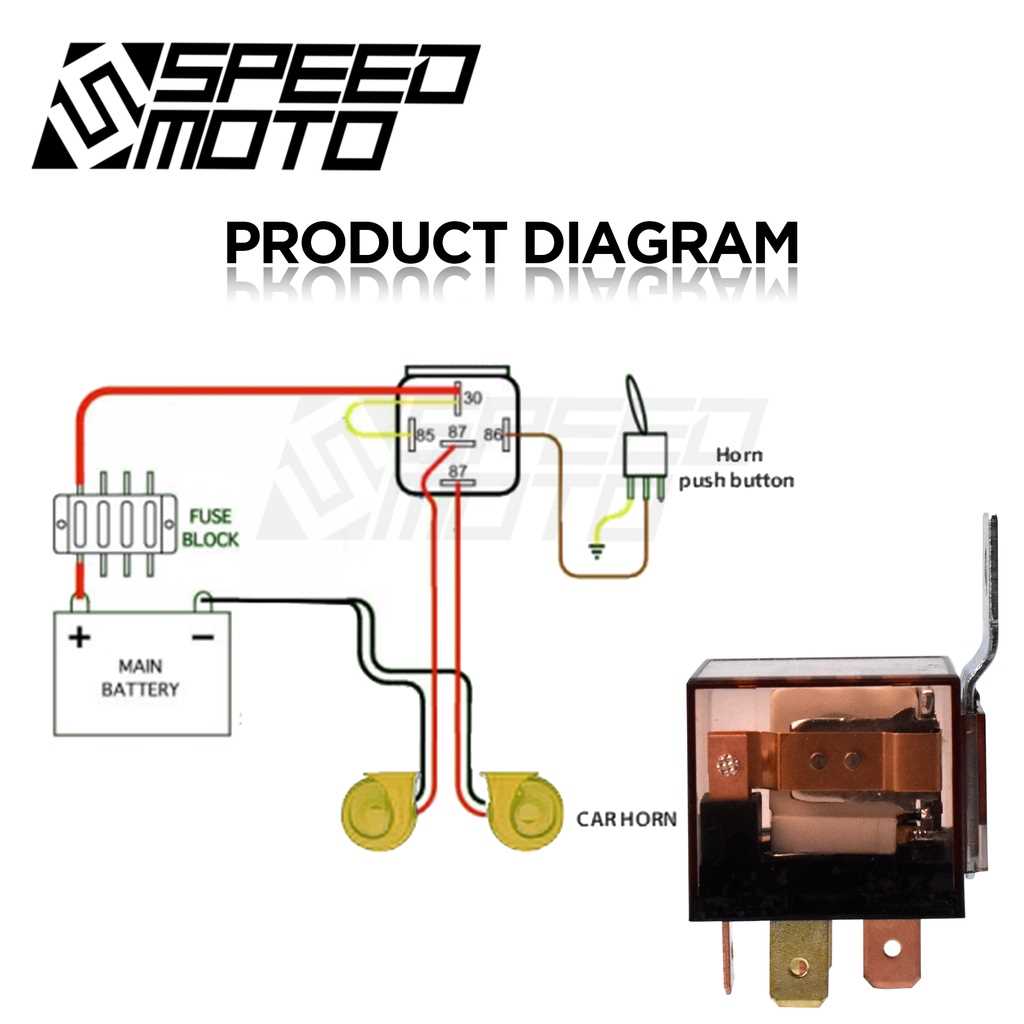

Complete Guide to Installing a 4 Terminal Vehicle Signal Module
Start by disconnecting the battery to prevent accidental shorts. Identify the module location in the engine bay, preferably close to the device it controls, to reduce conductor length and voltage drop.
Prepare conductors according to color codes. Typically, one conductor carries main power, another provides ground, and the remaining two manage activation and output. Trim insulation carefully and avoid nicking the metal strands.
Secure the module base using screws or a bracket. Ensure it is mounted on a stable surface away from high heat sources like the exhaust manifold or moving engine parts. Vibration-resistant mounts can improve longevity.
Connect each lead in sequence:
- Attach the main power conductor to the module terminal labeled for voltage input.
- Fasten the ground lead to the vehicle chassis or the dedicated ground terminal.
- Connect the activation signal from the control input to the designated terminal.
- Link the output conductor to the device’s input contact.
Insulate exposed terminals with heat shrink tubing or electrical tape. Avoid loose connections, and double-check for proper seating to prevent intermittent operation.
Test the assembly by briefly reconnecting the battery and triggering the control. Observe the controlled device for correct operation. If the device does not function, recheck each connection and confirm continuity with a multimeter.
Finalize installation by securing all conductors with clips or cable ties, keeping them clear of moving parts and heat sources. Perform one last functional check to ensure consistent performance before closing the hood.
Understanding Terminal Functions and Relay Layouts
Connect the main power lead directly to a stable voltage source capable of handling high current loads. This ensures the device receives uninterrupted power under all operating conditions.
Secure the grounding contact to bare metal on the vehicle chassis. A reliable earth point prevents voltage fluctuations and reduces the risk of intermittent operation.
Attach the control signal terminal to the activating switch. This completes the coil circuit and triggers the internal mechanism to allow current to reach the output.
Identify the output contact that feeds power to the device. Ensure the conductor is rated for the device’s full amperage to avoid overheating or reduced performance.
Examine labeling on the base of the unit. Typical markings indicate coil and load contacts, making it easier to match leads correctly and avoid cross-connections.
Organize all conductors to minimize interference, rubbing, or exposure to moving components. Proper routing reduces the risk of shorts and mechanical damage over time.
Test the setup by activating the control circuit while monitoring voltage at each contact. Verify proper operation before securing the unit permanently and finalizing connections.
