Connect the terminals according to the color codes: start with the blue lead to the fan motor, the brown lead to the compressor, and the common black lead to the main line. Using this order prevents shorts and ensures proper phase alignment.
Measure voltage and capacitance before linking components: a 370V rating is standard for most residential units, and a tolerance of ±5% ensures stable operation. Use a multimeter to verify readings before proceeding to avoid damage.
Secure all connections with insulated clamps: prevent vibration-induced loosening by tightening each nut to 6–8 in-lbs. Maintain at least 1/4 inch spacing between leads to reduce the risk of arcing and overheating.
Test the system under no-load conditions first: energize the unit briefly and monitor for unusual hums or current spikes. Confirm that the fan and compressor engage in the correct sequence before full operation.
Replace aging components proactively: if capacitance drops by more than 10% from the nominal value, swap the module. Consistent monitoring reduces the likelihood of motor strain and system failures.
3 Wire AC Dual Capacitor Connections

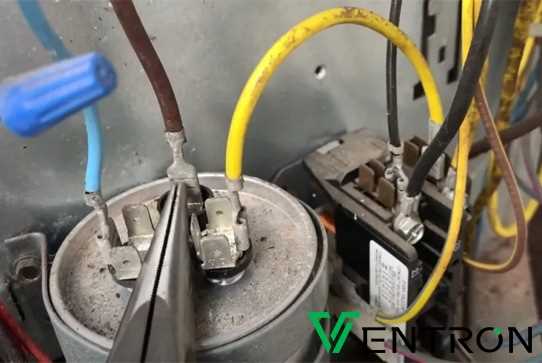

Attach the colored leads to their matching terminals: blue to the fan motor, brown to the compressor, and black as the common line. Ensure each connection is tight to avoid voltage drops and overheating during operation.
Check capacitance and voltage ratings before installation: most residential units operate at 370V with a tolerance of ±5%. Measuring these values prevents mismatched load issues and protects the motors from premature wear.
Use insulated clamps and maintain spacing of at least 1/4 inch between leads. Shorter connections reduce electromagnetic interference and allow smoother current flow. For safety, always test the assembly under no-load conditions first, confirming that the fan and compressor start in sequence without abnormal sounds or spikes.

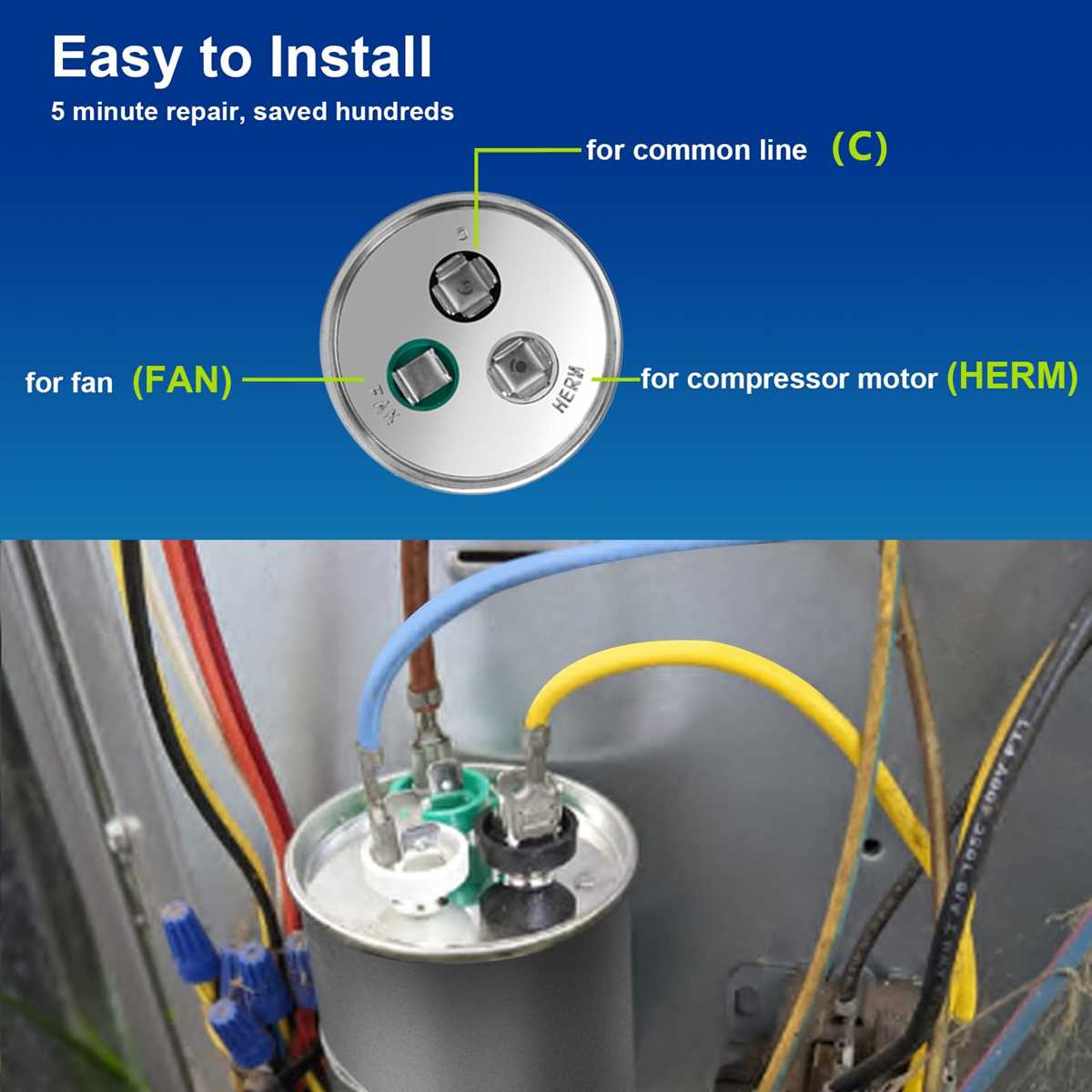

Identifying Capacitor Terminals and Wire Colors
Match each lead to its proper terminal: the blue connection is designated for the fan motor, brown links to the compressor, and black serves as the common line. Correct placement prevents phase errors and overheating.
Verify labeling before attaching: terminals are usually marked C for common, F for fan, and H or Herm for the compressor. Misreading these marks can cause motor failure and excessive current draw.
Use the following checklist for identification:
- Inspect the module for embossed letters or printed markings.
- Trace each lead from its source to confirm its function.
- Measure voltage continuity with a multimeter to ensure correct paths.
Color coding consistency matters: blue leads always serve the auxiliary motor, brown carries current to the compressor, and black is the shared return. Deviations from this standard may indicate previous repairs or modifications that require caution.
Test before full engagement: connect each lead temporarily and power the unit briefly to confirm correct operation sequence. Listen for abnormal humming or delayed startup that signals incorrect attachment.
Maintain at least 1/4 inch spacing between leads and secure all connections with insulated clamps. This spacing reduces arcing risk, prevents short circuits, and allows safe airflow around the terminals for thermal stability.
