Use copper conductors rated for 15 amps or higher when connecting a three point control setup in a residential room. Ensure each line is clearly marked to avoid cross connections during assembly.
Red and black leads serve as travelers between terminals. Proper labeling and secure fastening with wire nuts reduce the risk of faulty operation or overheating. Keep the grounding conductor continuous across all fixtures for safety compliance.
Position the control units at accessible heights, ideally between 48 and 52 inches from the floor. Test each path individually with a voltage tester before completing the installation to confirm uninterrupted power flow through all circuits.

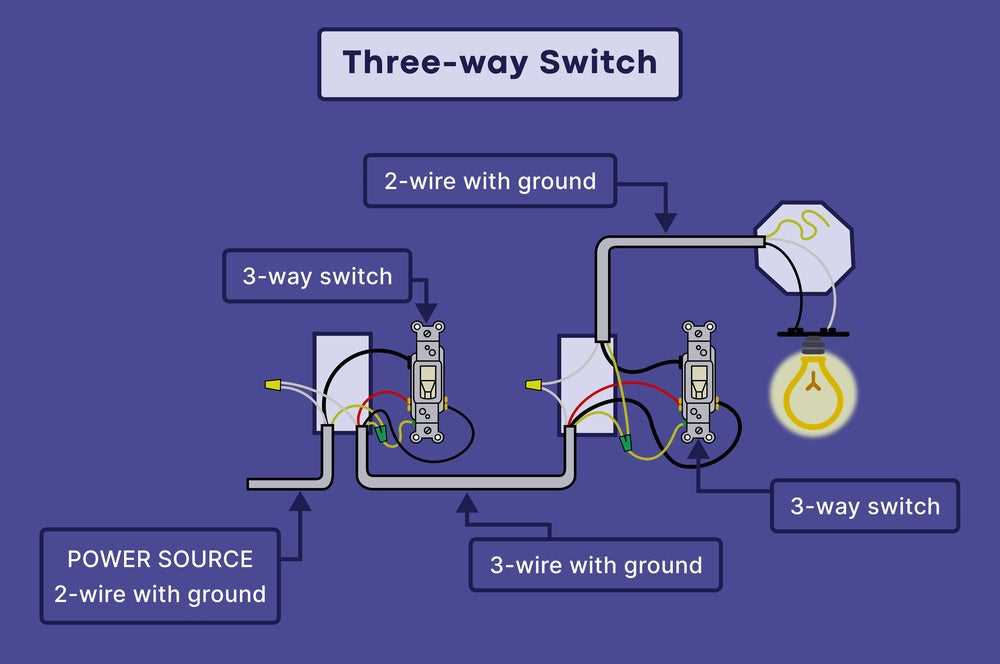

Three Way Control Circuit Setup Guide
Start by identifying the power source and the terminals of each control unit. Use a continuity tester to confirm which leads carry current before connecting them to the travelers.

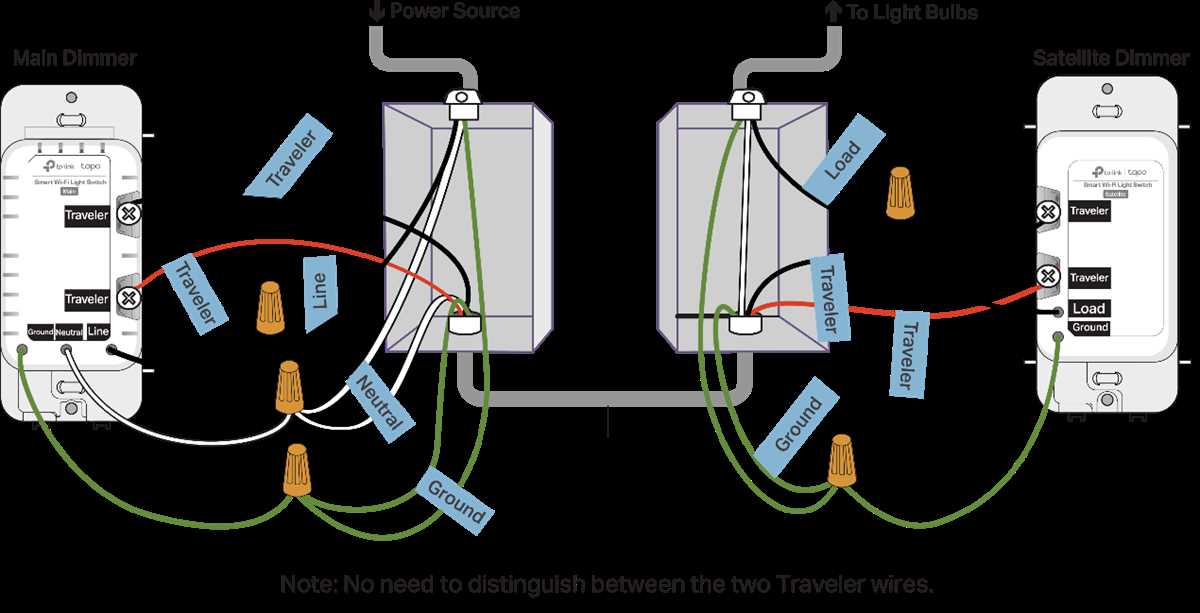

Label each conductor with colored tape or markers. Red and black cables function as the main connectors between the two units, while the white or neutral line completes the circuit. Secure connections with appropriate wire caps to prevent loose contacts.
Follow this order when assembling:
- Attach the incoming hot line to the common terminal on the first unit.
- Connect the two traveler cables to the remaining terminals.
- At the second unit, link the travelers to the corresponding terminals and connect the load line to the common terminal.
Ensure grounding continuity by attaching the bare copper or green wire to each metal housing. This reduces the risk of electrical faults and enhances overall safety.
After physical connections, test each path using a non-contact voltage detector. Operate each unit independently to confirm the current flows correctly along all routes.
Use insulated screws to mount the units in place. Maintain a clearance of at least 2 inches from surrounding conduits, and avoid sharp bends in the conductors to prevent stress points that could cause failures over time.
Identifying Conductors and Tools Needed for Three Point Installation
Use copper cables rated for 15 amps or higher for all connections. Identify travelers by color: black and red conductors serve as the main connectors, while white or gray lines act as neutral paths. Grounding conductors must remain continuous across all units.
Required tools include a voltage tester, wire strippers, needle-nose pliers, and insulated screwdrivers. A multimeter helps verify continuity and ensures no shorts exist before completing the assembly.
Label each lead with tape or permanent markers before detaching old components. This prevents misconnection during assembly and speeds up troubleshooting if the circuit fails to operate as intended.
Check the integrity of all existing conductors before reuse. Replace any frayed or damaged cables and avoid sharp bends to maintain proper current flow and prevent overheating at connection points.
