For a smooth and safe installation of your swimming system, focus on understanding the specific connections for each part. Pay close attention to the correct power supply, which should match the required load capacity for your equipment. Always consult the manufacturer’s instructions to avoid miswiring that can cause short circuits or malfunction.
Before proceeding with any connection, ensure the main electrical supply is turned off to avoid potential hazards. Label all wires based on their function, especially when dealing with multiple cables, to ensure proper attachment to the correct terminals. This step is important to prevent damage or accidents later on.
If you’re unsure about any part of the process, consider using a multimeter to double-check connections, ensuring there’s no power running before touching the electrical components. Proper grounding of the system is also crucial for both safety and functionality. Once all connections are made, carefully test the system to confirm everything is working as it should.
How to Wire a 230V System for a Pool Equipment Setup
Start by confirming that the electrical panel is turned off before beginning the installation. This is a critical first step to ensure safety during setup. Identify the main power line and measure the power load required by your equipment. Using the right gauge wire and breakers that match the system’s power requirements is necessary to avoid overloads.
Identifying Key Components and Their Connections
The electrical setup typically involves a circuit breaker, a contactor, and a motor terminal block. A contactor serves to manage the flow of electricity to the motor, while the breaker protects against overloads. Label each terminal to avoid confusion. For a motor, ensure the L1 and L2 wires are correctly connected to the terminals and that the ground wire is properly secured.
The grounding process is non-negotiable. Verify that the grounding wire is correctly attached to the system’s main panel to prevent shocks. A multimeter can help confirm the integrity of the connection, ensuring the system is safe to operate once powered.
Step-by-Step Wiring Process
Once you’ve turned off the power, connect the main power wires to the correct terminals on the contactor. Next, connect the motor leads to the corresponding terminals. Be sure to double-check the configuration, as incorrect wiring can lead to inefficient operation or even failure of the equipment.
After completing the wiring, check each connection. Test the voltage at the terminal points to confirm the power levels match what is specified in the equipment manual. This step ensures the electrical system is aligned with the equipment’s requirements, minimizing potential operational issues.
Lastly, once the system is wired and verified, it’s time to restore power. Run the system briefly and observe for any irregularities such as buzzing sounds or heat buildup. If any issue arises, turn off the power immediately and reassess the connections to find the cause. Proper inspection and correct wiring will guarantee safe and smooth operation.
Understanding the Components of a 230 Volt Pool Pump Wiring System
The first critical component in the electrical setup is the main breaker, which provides protection against overloads and short circuits. Choose the correct size breaker based on the power requirements of your system. A circuit breaker that is too large or too small can lead to either unnecessary tripping or insufficient protection in case of a fault.
The contactor is another key element, controlling the power flow to the motor. It acts as a switch to open and close the circuit. Ensure the contactor’s current rating matches the motor’s load to avoid overheating or malfunction. Proper placement and connection of the contactor are necessary to ensure reliable operation.
- Main Power Supply: This provides the incoming power to the system and must be properly fused.
- Contactor: The relay that activates the motor when it receives a signal from the control system.
- Grounding System: A vital safety feature to prevent electrical shock hazards.

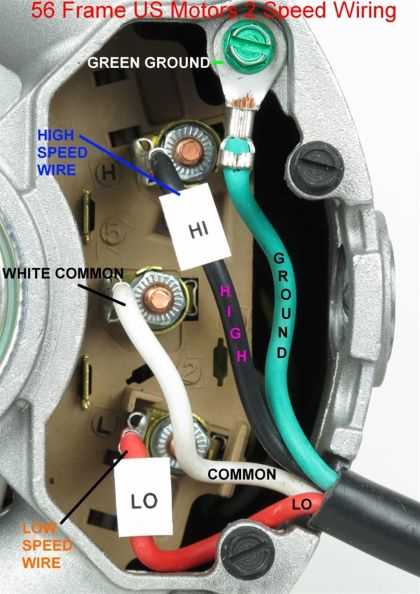

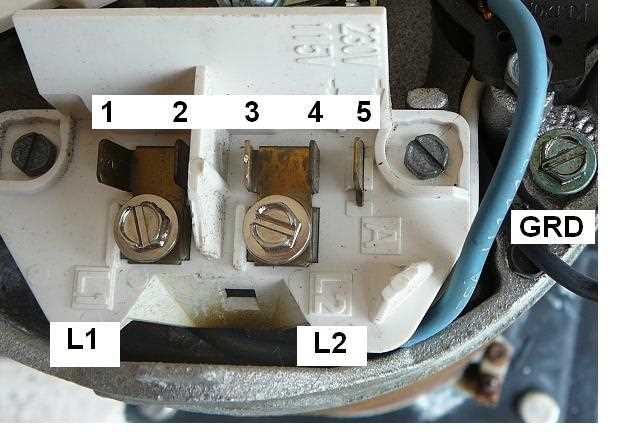

The terminal block connects the motor to the electrical system. The L1 and L2 terminals are where the hot wires from the breaker connect to the motor. These connections need to be tight and secure to ensure proper functionality. Any loose connections could lead to power loss or even damage to the system.
Don’t forget the grounding system. A well-grounded motor and other components reduce the risk of electrical shock. The ground wire should be connected from the motor casing to the main panel ground bus. Verify with a multimeter that the ground is correctly connected and has a low resistance to ensure safety.
Finally, make sure the capacitor is correctly installed if required by the motor. The capacitor helps start the motor and smooths out the electrical flow. Without it, the motor might fail to start or could operate inefficiently, causing additional wear and tear.
