Check the color of each wire at the steering column harness before reconnecting any circuit. On this GM pickup from the early 2000s, the starting control unit sends power through several clearly coded conductors. Matching each conductor with the correct terminal prevents starter failure, accessory loss, or blown fuses during repair or replacement work.
The steering column electrical module routes battery voltage to the starter relay, accessory feed, and dashboard systems. A thick red conductor usually carries constant 12-volt supply from the battery. A yellow lead typically activates the starter circuit, while an orange or brown line powers accessory equipment such as the radio or climate controls. Identifying these paths inside the column harness reduces the chance of crossed connections.
Tracing each conductor from the column connector to its destination helps locate faults such as worn contacts, loose terminals, or damaged insulation. Using a multimeter set to DC voltage allows quick confirmation of power flow during key rotation. This approach helps determine whether the fault sits in the steering column control unit, the starter relay path, or the vehicle power distribution circuit.

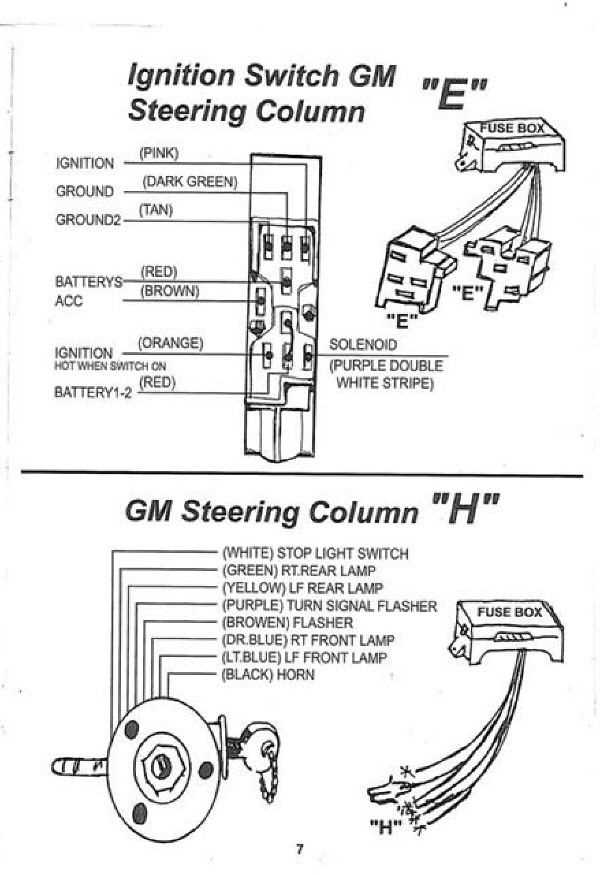

2000 Chevy Silverado Ignition Switch Wiring Diagram With Wire Colors and Connections
Confirm each conductor color at the steering column connector before reconnecting any circuit. The starting control assembly used in this early-2000s GM pickup distributes battery voltage through several dedicated leads. A thick red wire usually carries constant 12-volt supply from the battery feed. This line remains live at all key positions and powers the internal contacts that distribute current to accessory and starter circuits.
The yellow conductor commonly activates the starter relay. When the key cylinder rotates to the crank position, voltage travels through this lead toward the starter control circuit located near the under-hood fuse block. If the engine does not crank, measuring voltage on this yellow line while turning the key helps determine whether the column electrical unit or the relay path causes the problem.
An orange wire usually provides accessory power. This circuit feeds systems such as the radio, dashboard electronics, and climate control module. Voltage appears on this line when the key is turned to ACC or RUN. A broken connector pin or worn contact inside the column assembly often leads to intermittent power loss for these cabin devices.
Battery feed and power distribution lines
Several red or red-striped leads may enter the column harness through a rectangular connector mounted on the lower steering column housing. One heavy gauge line supplies direct battery voltage from the under-dash fuse panel. Another branch distributes power toward instrument cluster circuits. Inspect these conductors for heat damage or loose terminals, especially on trucks with high mileage.
Starter control and run position circuits
A pink wire frequently carries power to engine control components while the key remains in the RUN position. This circuit supports fuel injection control modules and engine sensors. Loss of voltage on the pink lead can prevent the engine from staying running after cranking, even if the starter motor turns normally.
Use a digital multimeter set to DC voltage and probe each conductor while moving the key cylinder through ACC, RUN, and CRANK positions. Recording which lines receive power at each position provides a clear map of the column harness behavior and helps locate damaged contacts or misrouted leads during repair.
Wire Color Codes and Pin Layout for the 2000 Chevy Silverado Ignition Switch

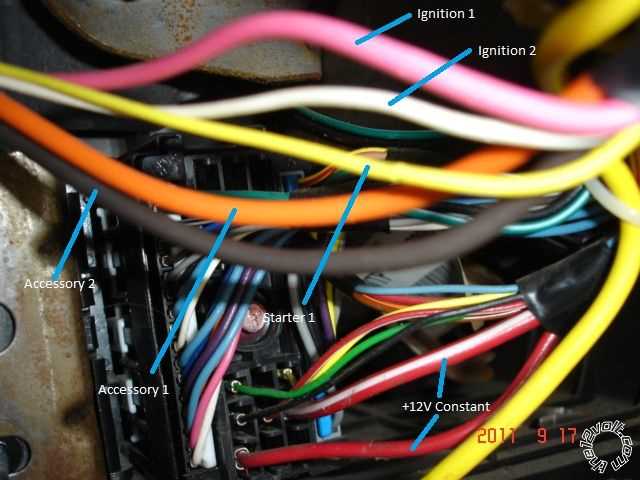

Identify the connector pins on the steering column harness before testing any circuit. The electrical unit mounted on the column uses a multi-pin plug that routes battery power, starter control, and accessory feeds. Each conductor color corresponds to a specific function, which allows quick tracing during electrical diagnostics.
The connector typically contains several high-current and signal lines. Inspect the plastic housing for molded pin numbers; they help match each conductor with its terminal location.
- Red – constant battery feed from the fuse block
- Yellow – starter relay trigger line
- Pink – engine control power in RUN position
- Orange – accessory power for cabin electronics
- Brown – accessory output shared with radio circuit
- White – power distribution toward lighting and control modules
Typical column connector pin arrangement
Most column harness plugs used on this GM pickup platform contain rectangular connectors with 6–8 terminals arranged in two rows. The battery feed usually occupies one of the outer positions due to its larger gauge conductor.
- Pin A – red battery supply
- Pin B – orange accessory feed
- Pin C – pink run circuit
- Pin D – yellow starter trigger
- Pin E – brown accessory branch
- Pin F – white distribution line
Testing conductors by position
Place the black probe of a multimeter on chassis ground and touch the red probe to each terminal while rotating the key cylinder. Constant battery feed should show about 12 volts at all times. Accessory lines show voltage only in ACC and RUN positions, while the starter trigger line becomes live during the crank position.
If voltage appears on the wrong terminal, inspect the connector for bent pins, damaged insulation, or prior repair splices. Column harnesses on high-mileage trucks sometimes develop loose terminals that interrupt power delivery.
Document each conductor color and pin position during inspection. A written reference or labeled photo prevents connection errors when reinstalling the column electrical module or replacing damaged harness sections.
