For controlling lights from two separate locations, you need a system that allows both points to operate the same fixture. Start by identifying the correct terminals for the input and output in the device you’re using. Typically, there will be a common terminal for the live wire, and two terminals for the travelers that will connect to the second location.
Ensure that the power source is turned off before starting the setup. Begin by connecting the live wire to the common terminal of the first unit, then connect the two traveler wires to the remaining terminals. At the second location, the traveler wires from the first device will be linked to the corresponding terminals of the second unit. The fixture or load should be connected to the common terminal of the second device.
Once the connections are made, it’s time to test the setup. Flip each switch to check if the light can be turned on or off from either location. If the light doesn’t respond as expected, double-check the wiring for any mistakes or loose connections.
Wiring Guide for Dual-Control Light Systems

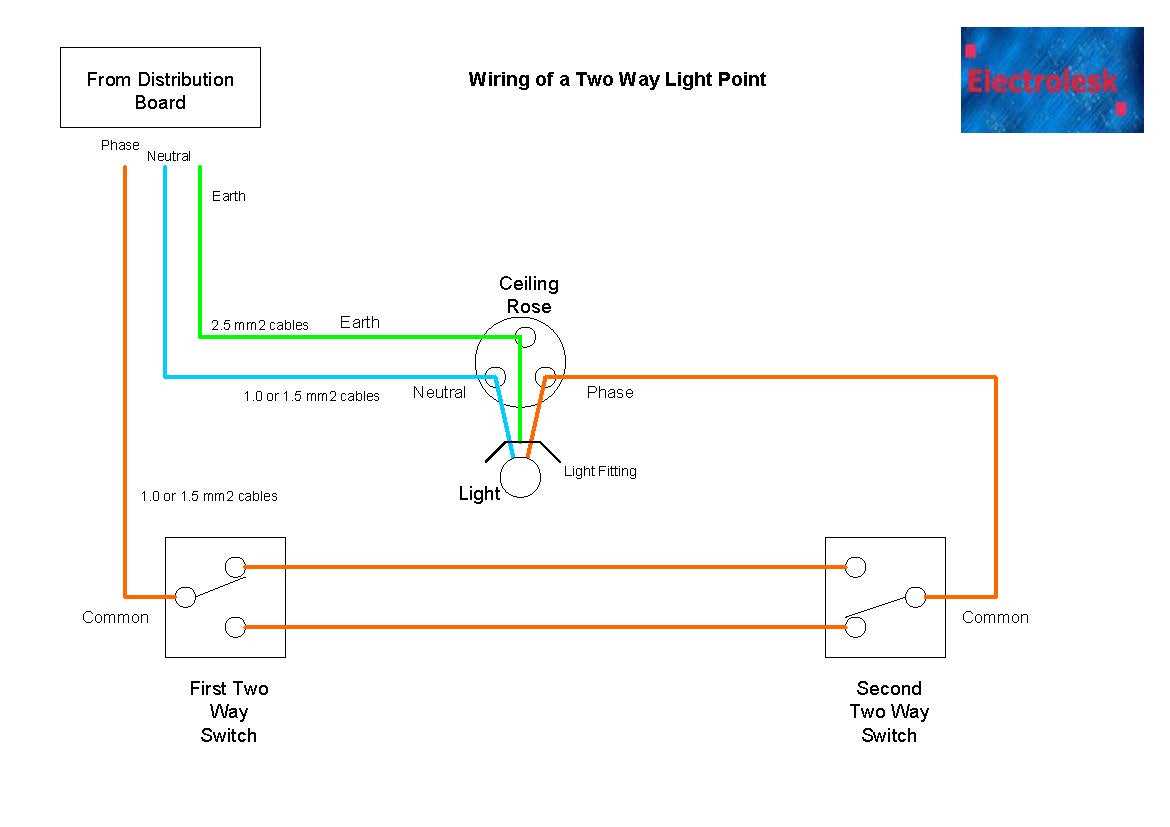

To wire a dual-control lighting setup, begin by understanding the components you’ll be using. You need two control points (usually two separate devices) that will control the same light fixture. Each control point will have terminals for the common wire and two additional terminals for traveler wires. The live wire should be routed through the common terminal of the first control point, while the other terminals will connect to the two traveler wires.
For proper operation, the second control point needs to be wired in a similar manner. The traveler wires from the first control point are connected to the corresponding terminals at the second point. The common terminal at the second control point will be connected to the light fixture or the load. This allows either point to control the light independently.
Step 1: Connecting the Power Supply
Before starting, make sure the power is turned off at the breaker. Begin by routing the live wire from the power source to the common terminal of the first control point. Then, connect two traveler wires to the remaining terminals on the first control point. These traveler wires will carry the live current to the second location.
Step 2: Connecting the Second Control Point
At the second control point, connect the two traveler wires to the corresponding terminals on the second device. The common terminal on the second device should be wired to the light fixture or load. Make sure the wiring is correct and that each wire is securely connected to avoid any loose connections, which can lead to malfunctioning.
- Ensure the connections are tight to avoid sparking.
- Check for any exposed wires or faulty insulation.
After the connections are complete, it’s time to check the entire system. Turn the power back on and test the functionality of the system. Try operating the light from both control points to confirm that the system works as expected. If the light doesn’t respond, double-check the wiring for any mistakes.
If you’re experiencing issues, ensure there are no short circuits. A simple multimeter can help check the continuity of the wires. Also, ensure that the power supply is functioning correctly and that the light fixture is in good condition.
Finally, always ensure that the devices you are using are rated for the electrical load. For higher-power fixtures, ensure your components can handle the current draw without overheating or causing a fire hazard. Using properly rated devices will ensure long-lasting reliability and safety in your setup.
Understanding the Components for a Dual-Control Light Setup
The first component to consider is the control device, which is used to direct the flow of electricity to the light fixture. This device has at least three terminals: one for the live wire and two for the traveler wires. These terminals allow the current to flow from one location to another, enabling the user to control the light from different spots.
Next, you’ll need the traveler wires, which are the key to linking the two control points. These wires will carry the live current from one device to the next, ensuring that either point can control the light. Traveler wires must be connected securely to prevent interruptions in the flow of electricity and ensure that the light can be switched on or off from both locations.
Each control point also requires a common terminal, where the live wire enters the circuit and travels to the next control device or light fixture. At the second location, the common terminal will connect to the light fixture, allowing it to be controlled from there. Make sure to properly mark and connect each terminal to avoid any misconfigurations.
Lastly, consider the power source. The live wire must be routed through the control device first before connecting to the light fixture. A properly rated power supply is required to handle the electrical load and ensure safe operation. Make sure all components are rated for the expected voltage and current to avoid any safety issues.
