Step by Step Guide to Wiring a 2 Pole GFCI Breaker

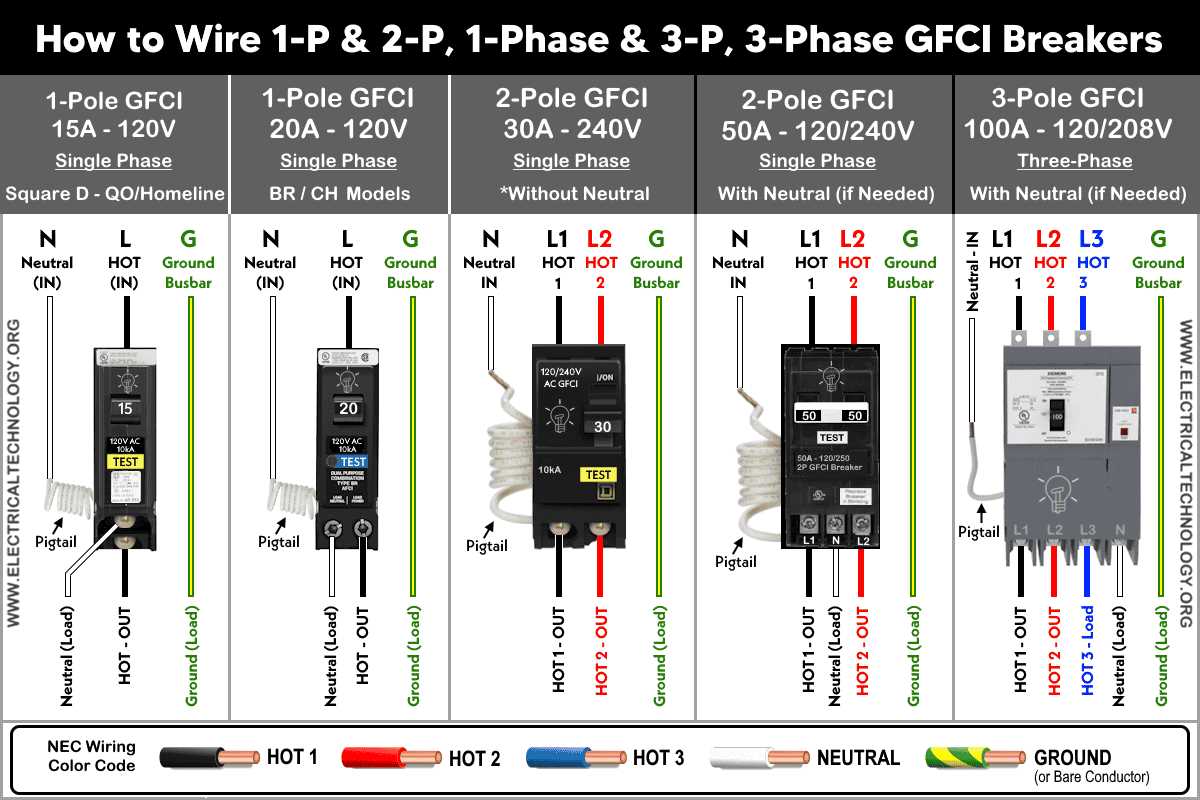

2 pole gfci breaker wiring diagram

Begin by connecting the live wires to the top terminals of the protection device. Ensure that the live wire is tightly secured to prevent any loose connections that could lead to a fault. For proper function, double-check the wire size to match the required amperage for the circuit.

Next, attach the neutral wire to the bottom terminal, ensuring that it is also firmly tightened. Both the live and neutral connections should be as clear of any corrosion or debris as possible to ensure optimal conductivity and safety.

Finally, ground the system by connecting the grounding wire to the designated terminal on the safety unit. This will provide a secure path for electricity in the event of a fault, protecting the system and preventing potential hazards. Always verify that the ground connection is free from interruptions or issues that could compromise safety.

How to Connect Live and Neutral Wires

Start by attaching the live wire to the top terminals of the protection device. Ensure the wire is stripped to the correct length and securely tightened to avoid any loose connections. The live wire carries the current from the power source, and proper connection ensures stable and safe operation. It’s important to inspect the wire for any damage before making the connection.

Proper Grounding Procedures

Ground the system by connecting the designated grounding wire to the grounding terminal. This provides a path for stray current in case of a fault, protecting the entire setup from electrical hazards. Make sure that the grounding wire is securely fastened and free of any corrosion or breaks. The ground connection should always be checked using a continuity tester after installation to ensure proper function.

Voltage and Current Ratings

Verify the voltage and current ratings of your components before installation. Use a multimeter to check that the incoming voltage matches the breaker’s specifications. Ensure that the connected wires can handle the current load without overheating. Using components with the incorrect ratings could lead to system failure or safety issues.

Testing the Setup

Once all connections are made, perform a test to verify functionality. First, check for continuity across the neutral and live terminals. Then, use a test tool to simulate a fault and ensure that the safety device activates properly. If the device does not react correctly, double-check your wiring connections, especially the live and neutral terminals.

Common Installation Mistakes

  • Loose Connections: Always ensure that wires are tightly secured to prevent arcing and potential fire hazards.
  • Incorrect Grounding: Failing to properly ground the system can result in electrical shock or damage to components.
  • Wrong Wire Size: Ensure wire gauges are suitable for the system’s load to avoid overheating or failure.

How to Connect the Live and Neutral Wires to a 2 Pole Breaker

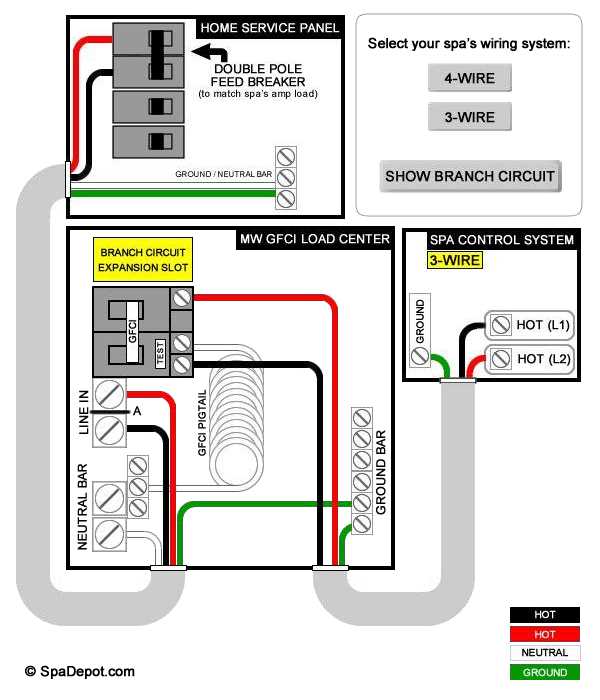

2 pole gfci breaker wiring diagram

Start by identifying the terminals for the live and neutral wires. The live wire connects to the terminal marked “L” or “Line”, while the neutral wire connects to the terminal marked “N” or “Neutral.” Ensure that the stripped portion of the wires is securely inserted into each terminal and tightened properly to avoid loose connections that could lead to arcing or failure.

When attaching the live wire, ensure that it is connected to the top terminal, as this is typically where the incoming current enters the device. The neutral wire should be connected to the bottom terminal, which completes the circuit. It’s important to double-check that the wire insulation does not come into contact with metal parts, as this can cause shorts or ground faults.

After connecting the wires, visually inspect the connections for any signs of damage or improper placement. Use a multimeter to verify that the correct voltage is being supplied to each terminal. If the voltage readings are correct, proceed with the installation by grounding the system before testing the device for functionality.
