The XOR gate, or exclusive OR gate, is one of the basic building blocks in digital electronics. It provides a high output when the number of true inputs is odd, making it useful in a variety of logic functions. This gate differs from the standard OR gate, as its output is false when both inputs are the same and true only when the inputs are different.
To properly implement this gate in a system, understanding its truth table is crucial. It has two inputs and one output, with the truth table showing all possible input combinations and the resulting output. Familiarity with these results can guide the proper setup and troubleshooting of circuits involving this logic gate.
When setting up the connections for an XOR gate, the process involves arranging the components in a way that reflects the gate’s logical operation. Using basic components like transistors or integrated circuits, this gate can be wired in many ways depending on the application, whether for simple control systems or more complex binary operations.
Common uses for XOR gates include parity checking, error detection, and cryptography. These applications rely on the gate’s ability to distinguish between similar and different input states. Its versatility also makes it a valuable tool for designing combinational logic circuits where specific conditions need to be met for the output to be activated.
Building and Understanding XOR Logic Gate Setup
To construct an XOR gate setup, start by connecting two transistors in a configuration where the output is dependent on whether the inputs differ. Begin with two switches that represent binary inputs. When both are in the same state, the output should remain low, while a high output occurs when the inputs differ. Using diodes, transistors, or even dedicated logic gate ICs can simplify this process, making it easy to replicate the behavior in various applications.
The layout of the components can follow standard configurations where each input connects to the base of a transistor. The transistors are typically arranged to work together in a way that the output reflects the exclusive OR logic. Understanding this connection is crucial for troubleshooting and ensuring that the logic gate operates correctly in any larger system, such as an error-detecting setup or a more complex binary function.
How XOR Gates Function and Their Truth Table
The XOR gate is a digital logic gate that outputs true (1) when the number of true inputs is odd. If both inputs are the same (either both 0 or both 1), the output will be false (0). This property distinguishes it from other gates like AND or OR, which output true for different conditions. The XOR gate is widely used in scenarios where conditions need to be met only if the inputs are not identical, such as in error detection systems or binary addition.

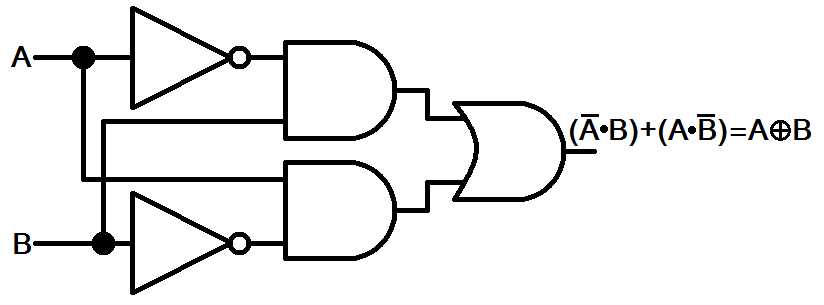

The logic function of an XOR gate can be summarized as follows: it performs a comparison between two binary inputs and outputs true only when exactly one of the inputs is true. In mathematical terms, it can be expressed as: output = A ⊕ B. If both A and B are equal, the output will be 0. If A and B differ, the output will be 1. This makes XOR useful in applications like parity checking, where it ensures data integrity.
The truth table for the XOR gate is straightforward. It lists all possible combinations of the inputs and the resulting output:
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
This truth table is central to understanding how XOR gates behave in digital systems. For example, in binary addition, two binary digits are added together using the XOR gate to compute the sum, while a carry bit is determined by an AND gate. This interplay of XOR and AND gates makes binary addition possible in hardware.
XOR gates can also be used in more complex operations such as in building half adders and full adders. In these operations, the XOR gate is used to generate the sum, while the carry is calculated using an AND gate. A full adder can compute the sum of three binary digits, including a carry-in from a previous calculation, with XOR gates used in the sum calculation and AND gates in the carry-out computation.
In encryption and decryption systems, XOR gates are critical for operations like stream ciphers. XOR encryption uses the gate to combine a plaintext message with a key stream, creating ciphertext. The same operation is used to decrypt the message by XORing the ciphertext with the same key stream, restoring the original message.
Understanding the XOR gate’s function and its truth table allows engineers and designers to optimize digital circuits, ensuring that the right logic behavior is achieved for tasks like error detection, arithmetic operations, and encryption. By combining XOR gates with other logic gates, complex circuits can be created to handle a wide range of computational problems.
