Check the round vehicle connector layout before attaching any cable from the tow unit. Each contact inside the seven-terminal plug controls a specific circuit such as left indicator, right indicator, tail lamps, brake lights, reverse lamp, ground, and auxiliary power. Matching each conductor to its correct terminal prevents lighting faults and short circuits during towing.
The circular plug used on many towing vehicles follows a consistent contact arrangement. Ground usually connects through a white conductor, while brown often carries the tail lamp circuit. Yellow and green lines commonly supply the left and right turn signals. A blue conductor frequently links the brake controller to electric braking units mounted on the towed platform.
Power for auxiliary devices or battery charging normally travels through a black or red line connected to a dedicated terminal inside the round socket. This line may support interior lights, refrigerator units in campers, or battery charging systems. Install an inline fuse between the vehicle battery and this supply conductor to prevent overload.
Careful inspection of the contact layout helps avoid reversed lighting signals. If the left indicator flashes on the wrong side of the towed unit, the yellow and green conductors are likely swapped at the plug. Using a test lamp or multimeter allows quick confirmation of voltage on each contact while the vehicle lights are activated.
Corrosion inside the circular connector housing also causes lighting failures. Moisture often collects under the spring-loaded cover. Clean each metal contact, apply dielectric grease, and check that the ground conductor connects firmly to the vehicle chassis. Stable grounding keeps brake lights, indicators, and tail lamps operating reliably while towing.

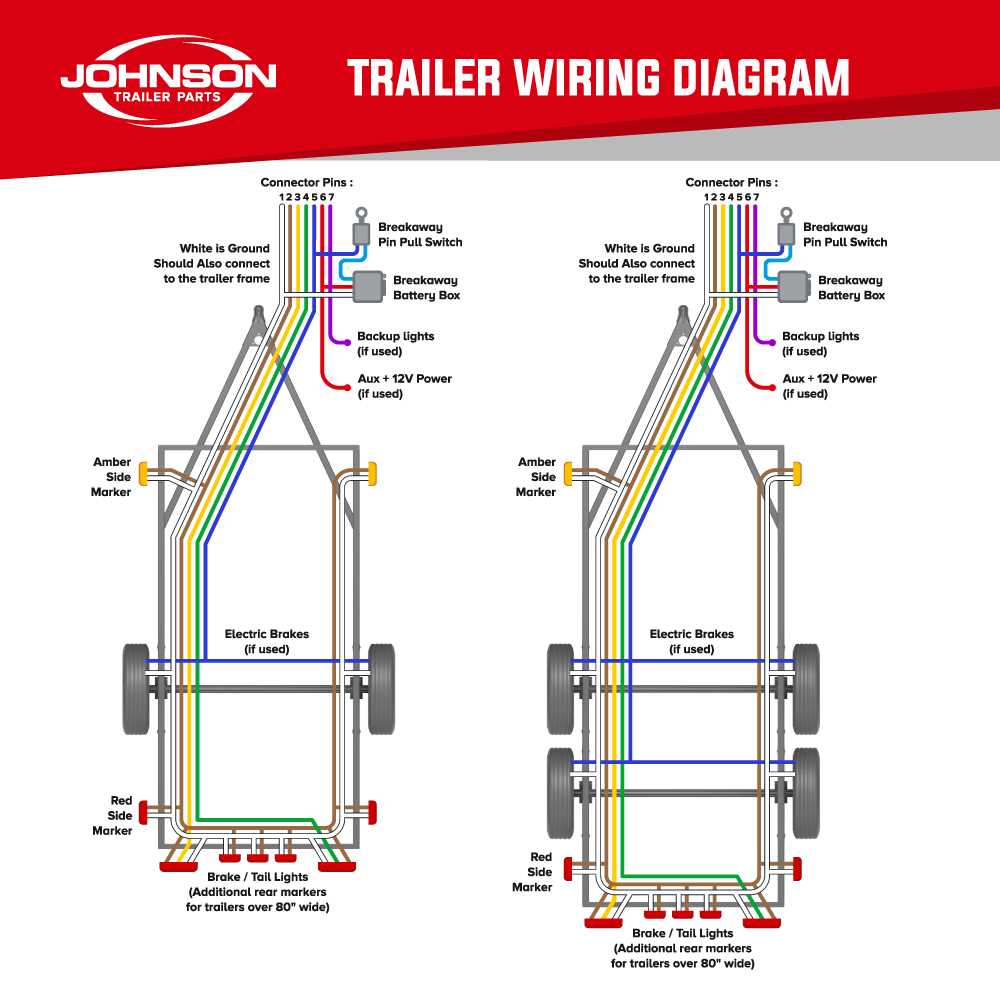

7 Pin Trailer Wiring Diagram With Connector Pinout and Wire Color Functions
Identify each terminal inside the round seven-contact plug before connecting any cable from the towing vehicle. The center or designated ground position usually connects to a white conductor attached directly to the chassis. A stable ground path prevents dim lamps and unstable electric brake response during towing.
Assign lighting circuits according to standard color practice. The brown conductor typically feeds tail lamps and side markers, while yellow controls the left turn signal and green operates the right indicator. These lines originate from the vehicle lighting harness and pass through the round connector to the rear lighting units mounted on the towed platform.
Brake signal distribution often travels through the same circuits used for turn indicators on many towing systems. When the brake pedal is pressed, both left and right signal lines receive power at the same time. Separate electric brake control, if installed, runs through a blue conductor connected to the brake controller inside the towing vehicle.
An auxiliary power circuit may appear on a black or red line. This supply can charge a battery inside a camper or power interior equipment such as lighting, small refrigerators, or ventilation fans. Install a fuse rated between 20 and 40 amps close to the vehicle battery to protect this supply path.
Check each terminal with a multimeter while activating the vehicle lights. Verify that the correct contact becomes live when indicators, brake lights, or tail lamps are switched on. If a lamp operates incorrectly, inspect the connector contacts for corrosion and confirm that each conductor enters the correct terminal of the round seven-contact plug.

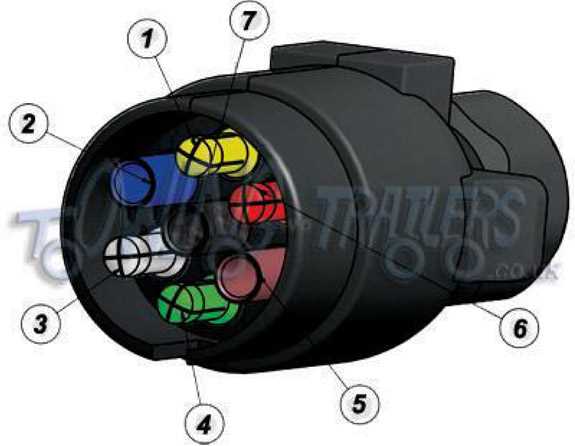

7 Pin Trailer Connector Pinout and Standard Wire Color Assignments
Match each contact inside the round seven-terminal socket with the correct conductor color before tightening the screws. Incorrect placement leads to reversed indicators, non-working brake lamps, or a disabled electric brake controller. The circular plug used on most towing vehicles follows a stable layout where each numbered contact controls a specific circuit linked to lighting, braking, or auxiliary power.
Typical Contact Layout and Color Mapping
- White – ground connection linked to the vehicle chassis
- Brown – tail lamps and side marker lights
- Yellow – left indicator and left brake lamp
- Green – right indicator and right brake lamp
- Blue – electric brake controller output
- Black or Red – auxiliary battery supply or accessory power
- Purple or Light Green – reverse light circuit on certain towing systems
Verification Steps After Installation
- Connect the ground conductor firmly to the vehicle frame.
- Activate the parking lights and check the brown circuit for voltage.
- Switch on the left and right indicators and confirm yellow and green outputs.
- Press the brake pedal and verify both signal circuits carry voltage simultaneously.
- Measure auxiliary supply voltage at the black or red line.
Use a multimeter or test lamp while checking each contact inside the round socket. Correct color placement keeps lighting circuits synchronized and allows brake control systems and accessory power lines to operate without interruption during towing.
