For proper installation of fire detection devices, understanding the connection layout is crucial. These safety instruments require a clear understanding of how to connect them to your home or building’s power supply for reliable performance. Correctly wiring these units ensures that they function in case of an emergency, alerting you to potential hazards.
Start by verifying the type of electrical setup required for your unit. Most fire safety devices are either battery-powered or hardwired to your home’s electrical system. Hardwiring requires additional steps for ensuring a proper connection to the electrical panel and a backup battery to maintain operation during power failures.
One critical aspect to focus on is connecting the devices in a series to trigger alarms in multiple locations. This ensures that once one device detects an issue, all connected units will respond. Pay attention to how these units are integrated with other alarm systems, such as those linked to sprinklers or emergency lighting.
Lastly, make sure to regularly check the functionality of these connections. Test the entire setup to verify that the devices are receiving power and will sound the alarm when triggered. This regular maintenance minimizes the risk of failure in an emergency situation.
Wiring for Fire Alert Systems
To ensure optimal operation, start by verifying the power source for the fire alert unit. If the device is to be connected to the electrical grid, ensure that the circuit breaker is turned off before any connections are made. For battery-operated models, check that the battery is in good condition and properly inserted.
Connect the main live wire from the power supply to the device’s terminal. Be sure to check that the wiring is secure and that no exposed wires are visible. If the system requires grounding, connect the ground wire to the appropriate terminal to ensure safety during operation.

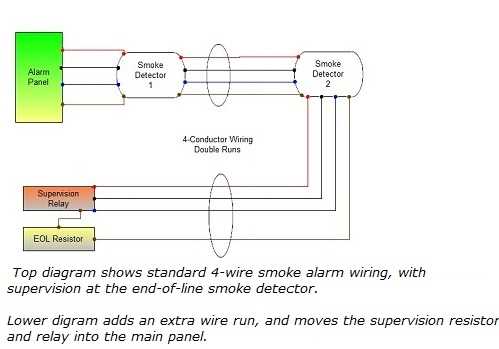

For units connected to other devices, ensure that the connections allow the signal to pass through. This is crucial for triggering other alerts within the building. In some setups, multiple units are connected in series, so every device can react when one is triggered.
When installing, make sure the wiring does not obstruct the proper placement of the fire detection unit. These devices must be installed in areas with clear airflow and away from obstructions that might prevent them from detecting hazards. Follow local regulations for optimal placement.
Double-check the connections by using a multimeter to ensure that the voltage levels are appropriate for the unit. Also, verify that the backup battery is charging correctly. In case of power failure, the unit should still be able to function for a period of time.
Once the connections are made, perform a test by triggering the device to confirm that it activates as expected. This testing is vital to ensure everything works correctly, especially during an emergency situation. Regular testing and maintenance will increase the longevity and reliability of the fire alert system.
HTML
Step-by-Step Guide for Installing Smoke Alarm Wiring
Ensure power is completely turned off at the electrical panel before starting the installation process. This step is non-negotiable to prevent any accidents or electrical shocks. Verify that no current is running through the circuit by testing with a voltage tester.
Gather Necessary Tools and Materials
You’ll need wire strippers, a screwdriver, electrical tape, a voltage tester, and your alarm unit. Additionally, ensure you have wire nuts and screws to secure the device in place. Have a ladder ready if you plan to install the alarm on the ceiling.
Prepare the Location
Select an appropriate spot for installation, typically on the ceiling or high on a wall. Avoid placing the unit near vents, windows, or other areas where airflow may interfere with its function. Mark the spots for mounting holes based on the unit’s dimensions.
- Measure and drill holes for the screws to hold the alarm in place.
- Run the wires from the electrical box to the location of the alarm unit.
Strip the insulation off the wires carefully, exposing the copper ends. Take care not to damage the wires, as this could lead to poor connections and affect the performance of the unit.
Connect the Wiring
- Connect the black (hot) wire from the electrical box to the black terminal on the alarm unit.
- Connect the white (neutral) wire from the box to the white terminal on the alarm.
- If the unit requires a ground wire, connect the ground wire from the box to the green or bare terminal on the alarm.
Secure each connection using wire nuts. Wrap them with electrical tape to prevent any accidental contact. Double-check each connection to ensure they are tight and secure.
After all connections are made, mount the alarm onto the base plate and screw it into place. Test the unit by turning the power back on and triggering the alarm. If the device doesn’t activate, recheck the wiring for any loose connections or errors.
Complete the installation by covering the wiring with an appropriate cover and securing the alarm according to manufacturer instructions. Ensure that the device functions correctly by testing it monthly.
