When working with electrical connections in a two-wheeled vehicle, understanding how the components interact with one another is key. Start by familiarizing yourself with the key elements: the battery, ignition system, lights, and charging components. Each component must be correctly connected to ensure that the system functions as intended.
It’s important to carefully study the specific schematics for your vehicle model, as each make and year can have slight differences in how the electrical system is laid out. These blueprints show exactly how power flows between parts, helping to troubleshoot issues or plan for upgrades. For example, the correct connection between the stator, regulator, and battery will determine whether the battery gets charged properly during riding.
Understanding how to identify each wire type and its function is another critical aspect. Color coding is typically used to indicate the function of each wire, such as red for power or black for ground. Pay attention to the gauge of the wire as well, as incorrect wire thickness can result in overheating or power loss. Make sure to use connectors that provide a secure and insulated connection to avoid short circuits or grounding issues.

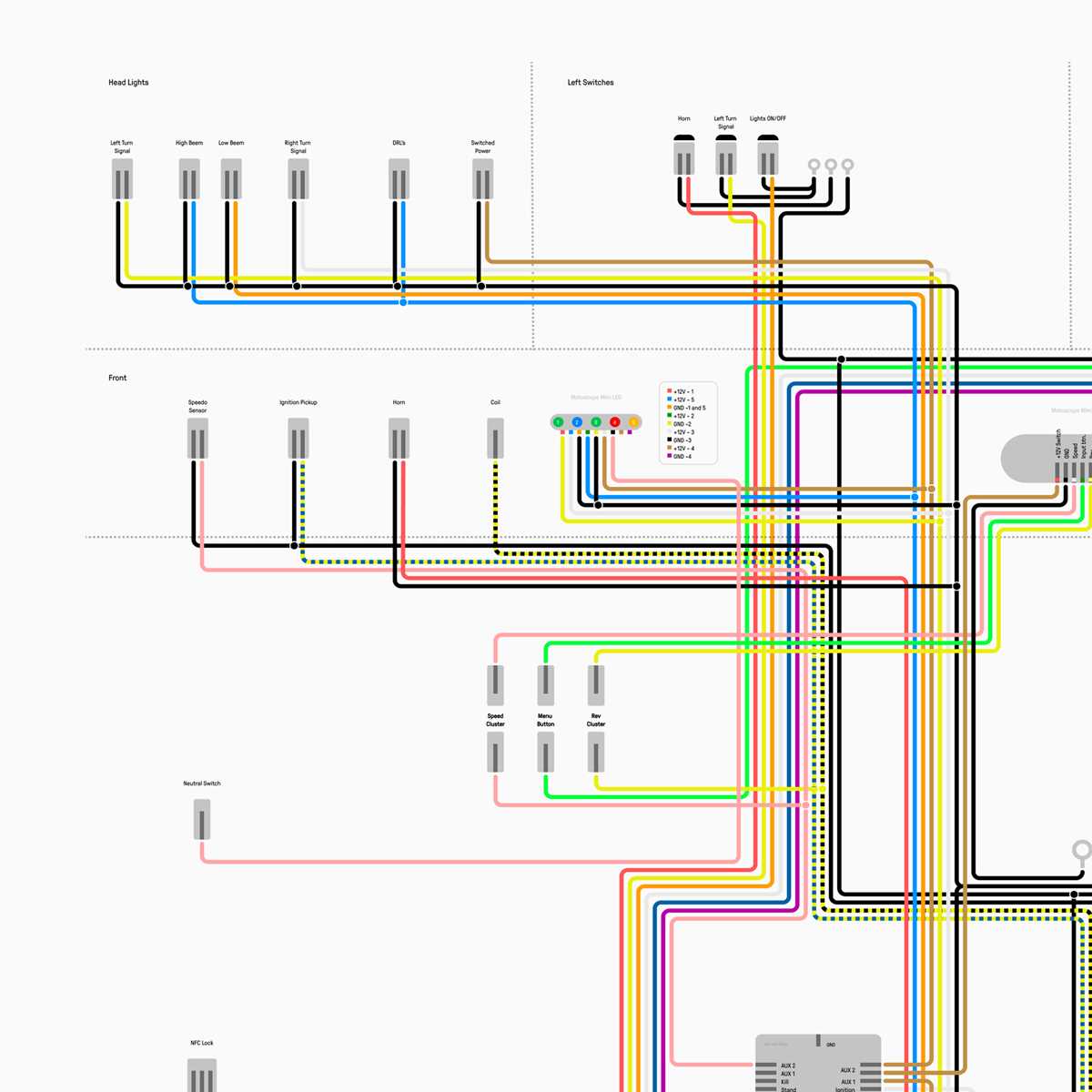

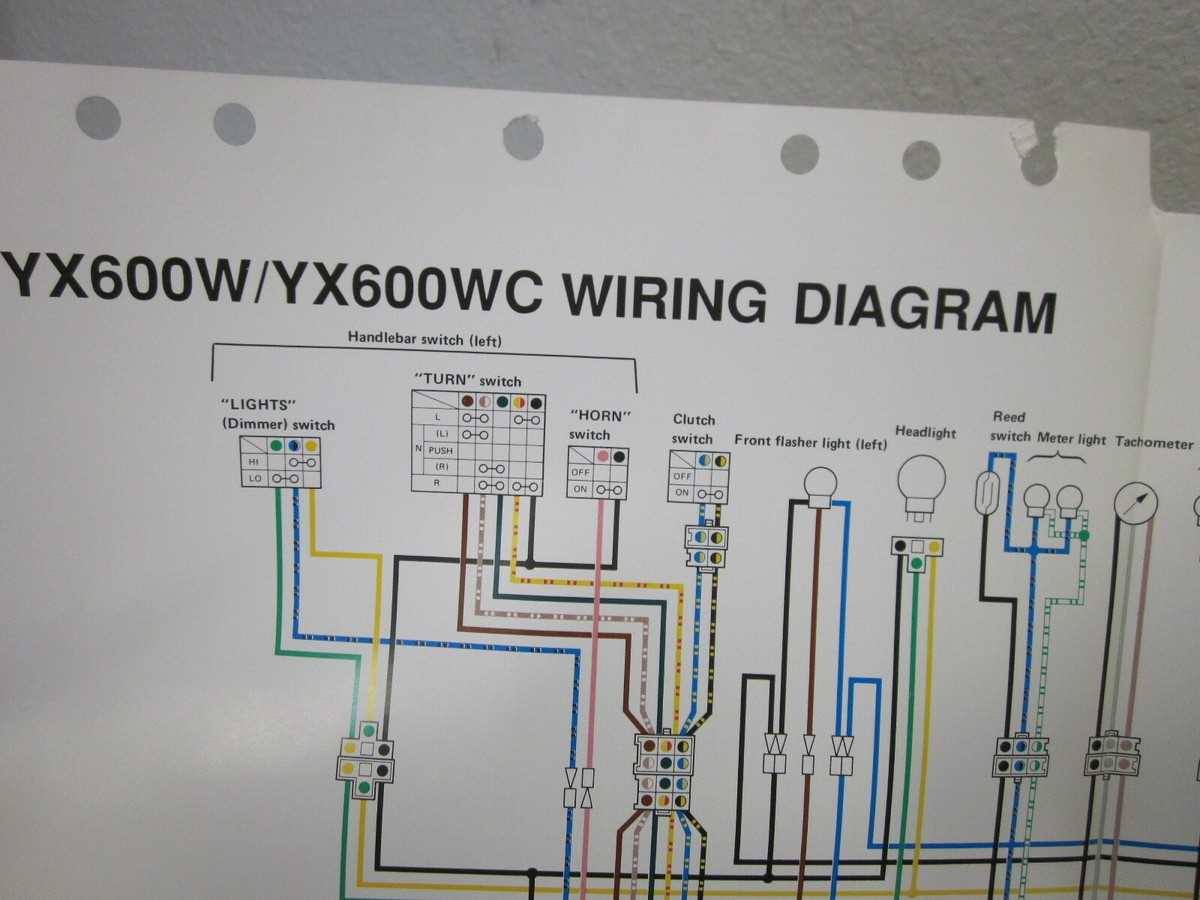

Wiring Diagram of a Motorcycle
Begin by ensuring the correct placement of the main power sources and grounding points. This includes proper connections between the battery and the ignition system. The battery’s positive terminal connects to the main fuse, which in turn powers the starter relay, ignition coil, and other critical systems. The negative terminal of the battery connects to the frame, providing the necessary ground path for all electrical components.

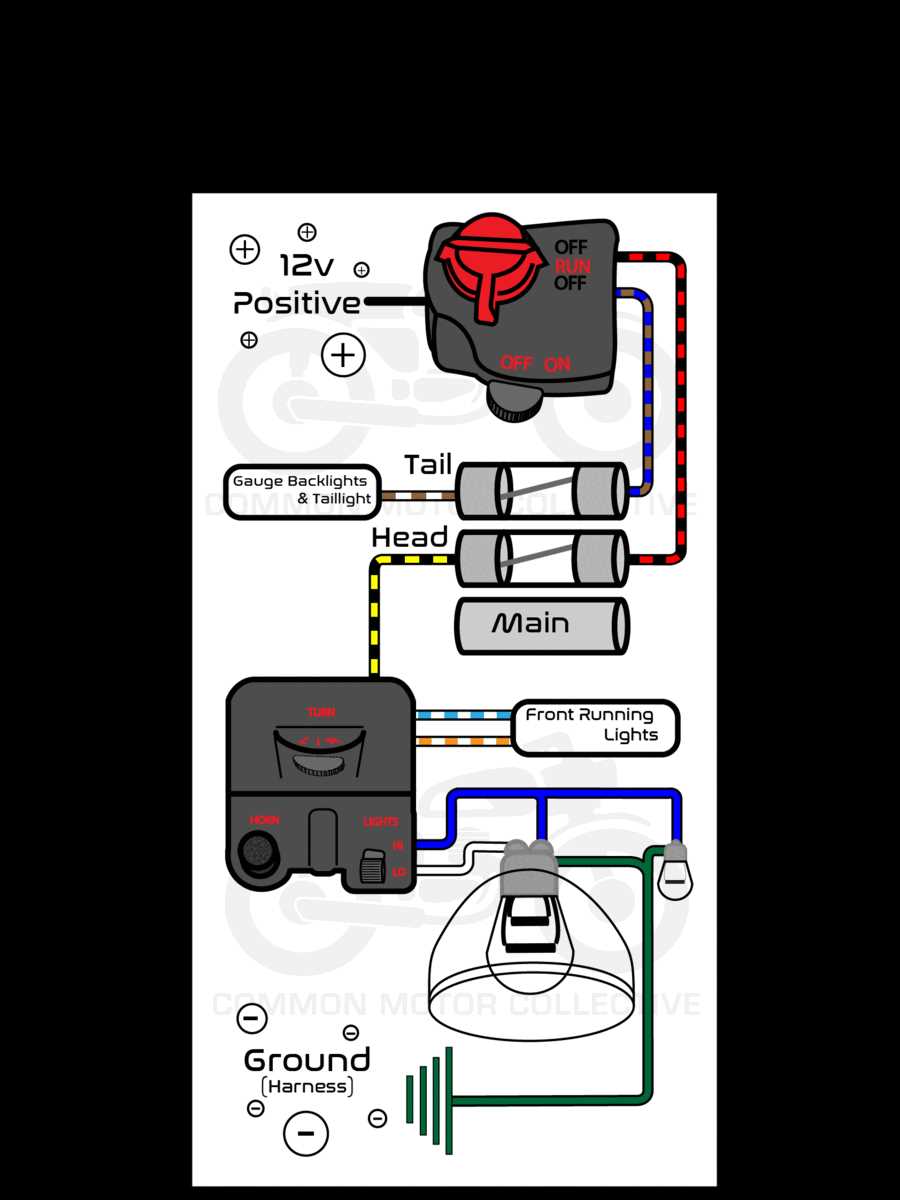

Next, focus on the ignition and lighting circuits. The ignition switch, when turned on, allows power to flow to the ignition coil, triggering the spark plug for engine operation. Be sure to check the continuity and integrity of each wire, ensuring no short circuits or damage. The lighting circuit typically includes connections for the headlight, taillight, and turn signals, which are often powered by a separate circuit controlled by the switchgear on the handlebar.
Finally, examine the charging system. The alternator or stator produces electricity to charge the battery while the engine is running. The regulator rectifier ensures that the power output is steady and suitable for battery charging. Make sure these connections are secure and check for any faulty components, as a malfunctioning charging system can lead to battery drain and potential engine stalling.
Understanding the Basic Components of a Motorcycle Electrical System
The heart of any electrical setup starts with the power source. The battery provides the necessary electrical energy to power components like the ignition, lights, and accessories. It is crucial to ensure the battery is properly connected to the entire system, with the positive terminal linking to the fuse box and the negative terminal grounded to the frame. Regular inspection for corrosion or wear is key to maintaining functionality.
The ignition system is another core element. It controls the spark timing for engine firing, involving components like the ignition coil, CDI (Capacitor Discharge Ignition) unit, and the spark plug. The ignition switch allows current to flow, sending electricity to the coil, which then triggers the spark plug. Ensuring each part is wired properly avoids engine misfires or failure to start.
Lighting components, including headlights, taillights, and indicators, also make up a large part of the system. These parts are typically controlled by switches on the handlebars and are connected to a separate fuse to prevent overloads. Verify each light’s connection and fuse to avoid malfunctions. Lastly, the charging system, consisting of the alternator and regulator rectifier, keeps the battery charged while the engine runs, ensuring continuous power for all systems.
