If you’re setting up a new control for your lights or fixing an existing one, start by identifying the correct components and their connections. A reliable connection ensures that your system functions safely and without issues. Carefully follow the placement of wires according to their specific roles, and make sure to match the terminals with the corresponding wires based on the type of control you are working with.
To begin, identify the main power wire, typically black or red, that connects directly to the input terminal. The other wire, usually white, is the return path for the current and should be connected to the neutral terminal. Make sure both are tightly secured, as loose connections can cause sparks or unreliable functionality.
Once the primary wires are in place, you’ll connect the ground wire to the designated terminal, often marked with a green screw. This ensures safety by preventing any stray current from causing electrical shock. It’s important to double-check the entire setup before closing the panel to avoid any short circuits.
When installing multiple units, such as two-way or three-way controls, carefully follow the instructions specific to those configurations. These setups will often require additional wiring for control from multiple locations, but the principles of wire placement remain the same. If unsure, refer to the manufacturer’s guide to avoid confusion and guarantee proper operation.

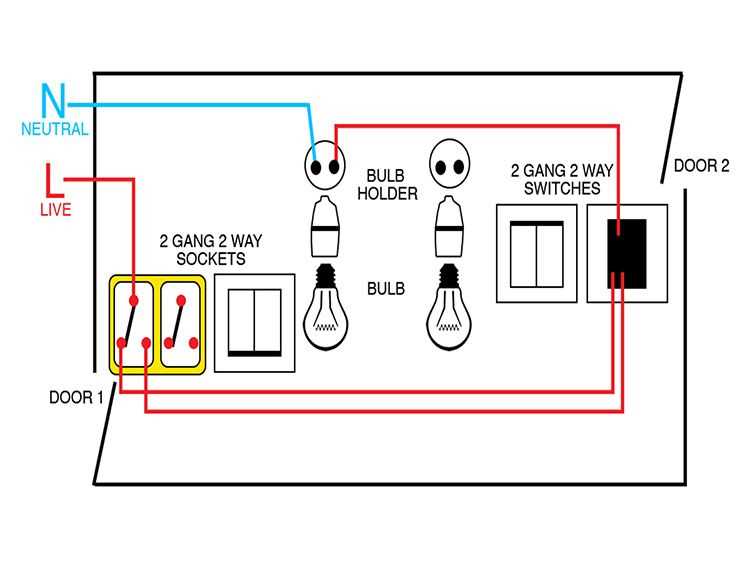

Wiring Diagram for Light Control
Start by identifying the power source and the correct terminals for your control unit. The live wire, typically black or red, should be connected to the input terminal of the device. Make sure the connection is firm to avoid any electrical malfunctions.
The return wire, usually white, must be securely attached to the neutral terminal. This wire completes the circuit and ensures the current flows back safely. Always ensure that the wire is free of damage, as a frayed wire can cause overheating.
The ground wire, often green or bare, should be connected to the designated ground terminal. This wire provides an important safety feature, diverting any excess charge directly to the earth to prevent electrical shocks.

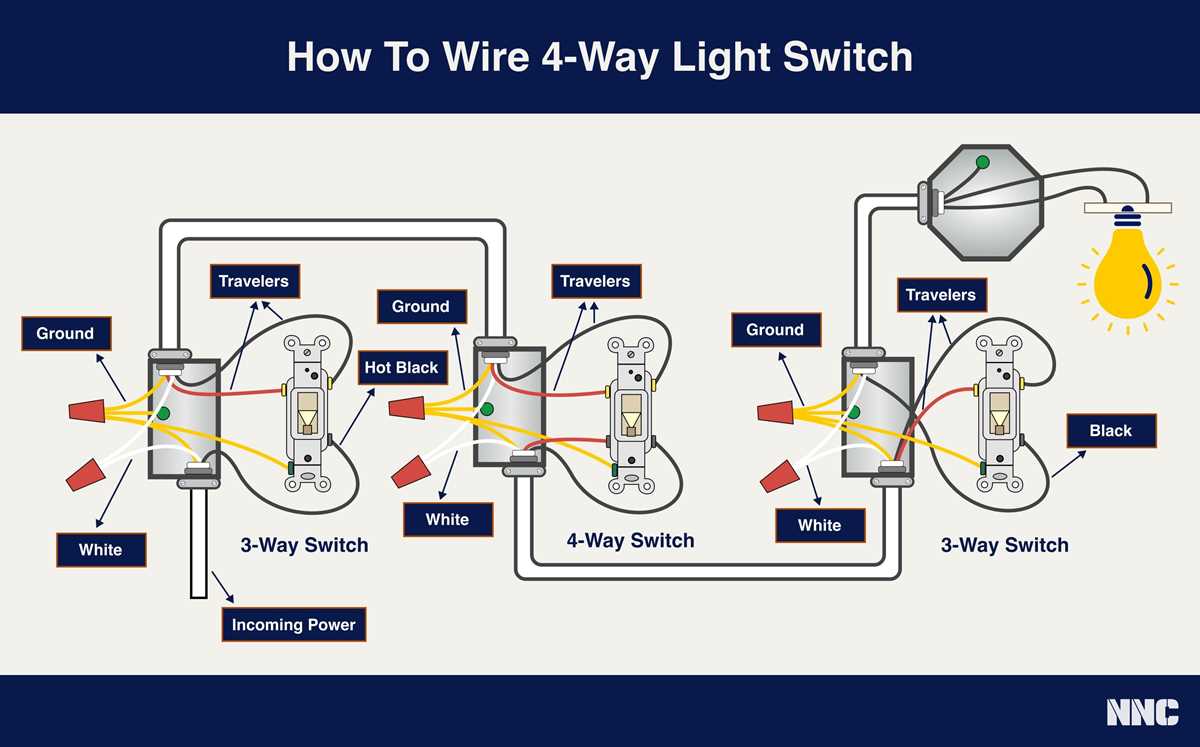

In systems with multiple controls, such as a two-way or three-way configuration, make sure to follow the correct sequence of connections. For these setups, you’ll typically find additional terminals or connections marked as “traveler” terminals, which allow you to control the light from multiple locations.
Ensure that all wires are properly stripped before making connections. Exposed copper should be clearly visible for a tight fit but avoid over-stripping, as too much exposed wire can lead to short circuits or unsafe conditions.
Finally, after connecting all wires, double-check for any loose connections before securing the control device back into its mounting. Testing the unit before final assembly can save time and prevent future troubleshooting issues.
How to Read a Light Control Wiring Diagram
Understanding how to interpret a control system’s circuit can save time during installation and prevent costly mistakes. The first step is identifying the power source. The wire from the main circuit panel is typically marked with a symbol indicating its live current, usually connected to the input terminal of the device.
The next important feature is the neutral wire, typically marked with a different color, like white. This wire forms the return path, directing current safely back to the power source. It is essential to confirm that the neutral wire is connected correctly, as improper wiring can cause the circuit to malfunction.
Key Components in the Diagram
- Live Wire (Hot): Usually shown in red or black. This wire supplies the current.
- Neutral Wire: Often represented in white. It provides the return path for the current.
- Ground Wire: Typically shown in green or bare, ensuring the system’s safety by directing excess charge to the earth.
Each component should be connected to the correct terminal. The input terminal usually receives the live wire, while the neutral and ground wires connect to their respective terminals. Some devices may include additional terminals for multi-way control setups, such as traveler terminals for controlling from multiple locations.
Following the Flow of Current
To correctly interpret the flow, follow the path from the power source to the device. The current typically flows through the live wire, reaches the device, and then exits through the neutral wire. Any interruption or misconnection in the path can lead to a malfunction.
In multi-way configurations, it is important to trace the traveler wires. These are typically shown with a specific line style or notation, indicating they allow control of the same light fixture from different locations. These connections must be made carefully to ensure they are synchronized.
Once the connections are clear, double-check for any optional elements such as dimmers or timers. These can add additional components to the system, often requiring extra wiring or specific connectors that might not be present in basic setups.
Finally, always verify that the diagram matches the physical setup. Mistakes in reading the diagram can lead to wrong connections, posing a safety risk or causing the system not to function as intended. Make sure the layout is fully understood before proceeding with installation or repair.
