Turn off the circuit breaker and verify zero voltage using a tester before handling any conductors. This prevents accidental shocks and ensures safe installation.
Identify each wire by color coding where black or red indicates the live conductor, white marks the neutral path, and green or bare copper represents the grounding connection. Accurate identification prevents misconnection and equipment damage.
Strip insulation carefully to expose about 12 millimeters of the metal core. Avoid nicking strands to maintain conductivity and allow secure attachment to the terminal screws.
Attach each conductor firmly to its corresponding terminal. Secure the ground first, followed by neutral, and finally the live line to reduce the risk of sparks or accidental contact during tightening.
Check continuity and stability of connections using a multimeter. Wires should remain straight without overlapping, and all screws must be tightened to avoid loose contacts that can cause overheating.

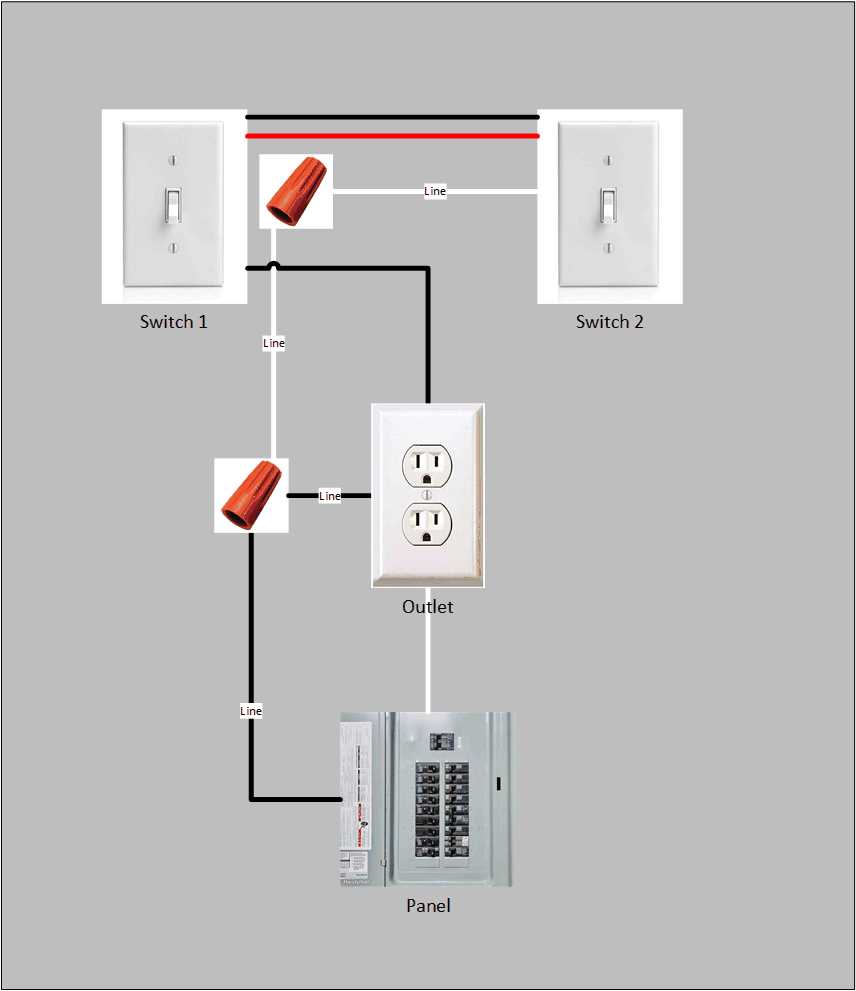

Step by step guide for connecting a wall control and power receptacle safely
Shut off the breaker and verify that the circuit is dead using a multimeter. Confirming no voltage is present prevents accidental electric shocks during assembly.
Identify each conductor using color codes: black or red for live, white for neutral, and green or bare copper for ground. Correct identification avoids short circuits and equipment damage.
Strip insulation carefully to expose about 12 millimeters of the metal core. Avoid nicking the strands to maintain conductivity and ensure secure attachment to screws.
Attach the grounding wire first to the metal frame or grounding terminal. This ensures that the unit remains earthed while the other connections are being made, reducing risk of electric shock.
Connect the neutral conductor next. Insert the exposed wire fully under the terminal screw and tighten firmly to prevent loose contact that can cause arcing or heat buildup.
Fasten the live line last and make sure it does not touch other terminals. The live connection should be stable, straight, and free of stray strands that could create a short.
Check all screws and confirm that each conductor is secure. Wires should not bend sharply or cross each other, and the body should align flush with the cover to maintain insulation integrity.
Test continuity and grounding with a circuit tester before restoring power. Ensure the live, neutral, and ground paths are continuous and the grounding shows low resistance to confirm safe operation.
Identifying and preparing conductors for a wall control and power receptacle connection
Confirm the circuit is de-energized using a voltage tester before handling any cables. This ensures safety while separating and preparing individual conductors.
Separate and mark each line according to color:
- Black or red indicates the live conductor
- White marks the neutral path
- Green or bare copper represents the grounding connection
Accurate labeling prevents misconnection during attachment.
Strip insulation carefully to expose about 12 millimeters of copper. Avoid nicking the strands to maintain conductivity, and twist them tightly to fit neatly under terminal screws.
Arrange conductors for easy access so each line reaches its designated terminal without tension or crossing. Proper positioning reduces the risk of shorts and ensures the metal frame or housing closes securely.
