Use a 12V coil with at least 30A contacts when controlling high-current circuits. Ensure the positive lead connects directly to the power source through a fuse rated slightly above the expected load to prevent overheating.
Connect the control signal to the coil terminal with a diode across it to suppress voltage spikes that can damage sensitive electronics. Orient the diode with the cathode to the positive side to allow current to flow only when the switch is activated.
Separate the control and load circuits physically to reduce electromagnetic interference. Route heavy-gauge wires for the switched line away from thin-signal lines, and secure all terminals with proper torque to maintain stable connections under vibration.
Label each terminal according to function to simplify troubleshooting. Numbering the input, output, and coil connections reduces the risk of accidental cross-wiring and ensures consistency when replacing or upgrading components.
Test the assembly under no-load conditions before integrating it into the main system. Verify that the coil energizes correctly, contacts close without resistance, and all indicators respond as expected to prevent unexpected failures in operational circuits.
Wiring Plan for Electromechanical Switch
Connect terminal 85 to a stable ground source and terminal 86 to a control switch rated at 12V; this ensures the coil energizes correctly without voltage drops.
Use a fuse rated slightly above the coil’s current draw between the power source and the control input to prevent overheating or circuit damage.
High-current terminals 30 and 87 should link to the load and power supply using at least 14 AWG wire for circuits under 20A; thicker conductors are necessary for heavier currents.
When integrating multiple devices, employ a diode across the coil terminals to suppress voltage spikes that could damage sensitive electronics.
Signal Activation Tips
Ensure that the actuator receives a clear low-impedance signal; intermittent connections can cause chattering and reduce contact life.
Mount the switch on a vibration-free surface and keep wires organized to minimize stress on terminals and reduce the chance of accidental disconnection.
Label each connection clearly and document its path; this prevents mistakes during maintenance or troubleshooting and speeds up replacement if failure occurs.
Connecting a Single-Pole Relay to a 12V Circuit
Attach the coil terminals directly to a 12V power source, ensuring the positive lead reaches the terminal marked with a “+” or coil designation. Integrate a 1A inline fuse on the positive wire to prevent overloads. Connect the switch side to the device or load, using the normally open (NO) contact if the circuit should remain inactive until energized. Ground the opposite coil terminal to the negative bus of the system.
Follow this sequence for load integration:

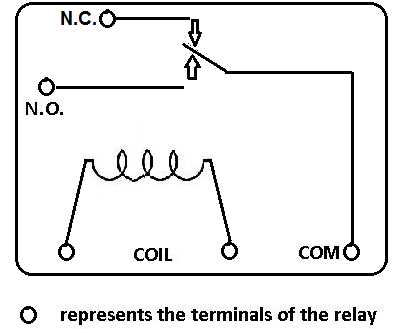

- Identify the common (COM) terminal and link it to the positive input of the target component.
- Route the NO contact from the output of the relay to the device’s power input.
- Ensure all connections are secure with ring or spade terminals to avoid intermittent contact.
- Test the control switch by applying 12V to the coil and verifying that the load activates without voltage drop.
For longer circuits, consider 16–18 AWG wire to maintain voltage stability. Optionally, add a diode across the coil terminals with the cathode on the positive side to suppress voltage spikes during coil deactivation.
