Step-by-Step Guide to Wiring a Manual Transfer Switch

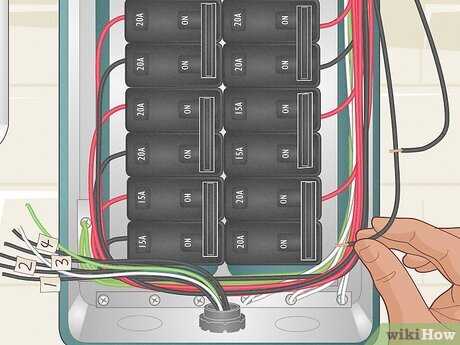

wiring diagram for manual transfer switch

Start by ensuring that you have the correct equipment for connecting your backup power source. The key components are a power inlet box, the main panel, and the connections for both the generator and utility power lines. The connection process requires understanding how to safely route and manage the electrical load, ensuring that no power source is active at the same time, preventing backfeeding into the grid.

Follow the proper color coding for each wire to avoid misconnections. Typically, black is used for hot lines, white for neutral, and green or bare copper for grounding. Take extra care when handling the live wires to ensure there is no risk of electric shock. All connections should be tight and secure to prevent loose wires, which can lead to system failures or even fires.

Once all connections are made, it is important to verify the setup using a multimeter to check for correct voltage and continuity. A correctly wired system will ensure that the backup power activates automatically or manually without issues, providing seamless power during an outage. Regular testing is crucial to ensure that the system remains operational over time, especially before heavy weather seasons or long power outages.

Wiring Diagram for Manual Transfer Switch

Begin by identifying the components that will need to be connected: the generator, the main panel, and the backup power inlet. The first step is to connect the incoming utility power lines to the main panel. Then, establish the circuit paths that will carry power to your house from the generator during an outage. Make sure to use a double-pole, double-throw (DPDT) circuit breaker to prevent backfeeding into the grid.

When routing the wires, ensure that the hot wires are properly isolated and secured. Use insulated copper conductors to handle the current safely, and never use undersized wires, as they can lead to overheating and potential failure. The neutral wire should be isolated from the ground, and all connections must be made according to local electrical codes.

After the main power lines are connected, proceed with the generator’s wiring. The generator will typically have two hot terminals, a neutral terminal, and a ground. Run the hot wires to the corresponding inputs in the panel, and connect the neutral wire to its dedicated terminal. The ground wire should be securely connected to the ground bus bar in the panel.

Next, make the connections for the backup power source. The power inlet box, where the generator plugs into the system, must be properly wired to handle the incoming voltage and current. Ensure the inlet box is securely mounted and accessible from the exterior of the building. Use a weatherproof, UL-listed box for safety in all outdoor applications.

Once all the connections are made, it’s time to test the setup. Use a multimeter to check for correct voltage at each terminal, both in normal and backup modes. Verify that the main panel is receiving power from the generator, and confirm that no power is being fed back into the grid. Test each circuit by manually toggling the switch to ensure everything operates as intended.

If there are any issues during testing, inspect all connections for tightness and correct placement. A common mistake is improperly sized or loose connections, which can cause voltage drops, shorts, or unsafe conditions. Double-check that the wiring matches the diagram and that all connections are made according to code.

In the event of power loss, the system should switch over seamlessly to the generator. Always test your backup system regularly to ensure it works when you need it. A good practice is to run a test every 3–6 months, and after any significant weather events that might affect your power supply.

Finally, ensure that all components are labeled and clearly marked, especially the switch and the circuit breakers. This will make future maintenance or upgrades easier and safer. Keep a copy of the wiring diagram near the main panel for reference in case of troubleshooting or repairs.

How to Wire a Manual Transfer Switch to a Generator

Start by positioning the backup power source near the main electrical panel. Ensure there is sufficient space for safe operation and maintenance. First, connect the two hot lines from the generator to the corresponding terminals in the main electrical panel. These should be connected to the input terminals that will route power to the house circuits during an outage. Make sure the connections are secure to avoid any loose contacts during power transfer.

The neutral line from the generator should be connected to the neutral bus bar in the main panel. This is critical for the correct operation of the power system and for preventing damage to the generator. Do not skip this step, as it ensures proper grounding and reduces the risk of electrical hazards.

Grounding the Generator

Ground the generator by connecting the ground wire to the ground bus bar in the panel. This is necessary to provide a safe path for any fault currents, ensuring the safety of the entire electrical system. Always use a copper conductor for the grounding wire and follow local codes for the required wire size and installation methods. A properly grounded generator helps prevent electrocution and damage to your equipment.

After making the connections, proceed with the wiring of the backup power inlet box. The inlet box should be installed in a weatherproof location and connected securely to the generator’s output. Connect the hot, neutral, and ground terminals in the box to match the corresponding wires from the generator. This ensures that the power can flow safely and correctly from the generator to the house circuits when needed.

Testing the System

Once all connections are made, test the system to ensure everything is functioning as expected. Check the voltage at each connection point with a multimeter, verifying that the generator is correctly supplying power. If there are any issues, recheck the wiring and ensure all connections are tight. Regularly test the setup to ensure that the system will work during an actual power outage. This will give you peace of mind knowing that your backup system is ready when needed.
