Identify the incoming hot conductor at the first device box and connect it to the terminal that feeds both the fixture and the receptacle. Use a voltage tester to confirm the line before touching any connections.
Label each wire with colored tape or markers to differentiate hot, neutral, and traveler conductors. This prevents confusion when linking multiple devices in a shared pathway.
Run the neutral line directly from the power source to the receptacle and fixture, ensuring continuous flow. Maintain separation from live lines to avoid shorts and maintain consistent voltage.
Connect the control terminal of the fixture to the hot conductor coming from the toggle. Ensure all screws are tightened securely and that exposed copper is properly insulated with electrical tape.
Feed the receptacle from the same line, verifying that the neutral and ground connections match the breaker panel configuration. This allows both devices to function independently without interference.
Test each device individually after completing connections. Flip the control to confirm the fixture responds correctly while the receptacle maintains constant power.
Secure all cables inside the boxes using clamps or wire connectors to prevent movement and accidental disconnection during future maintenance or upgrades.

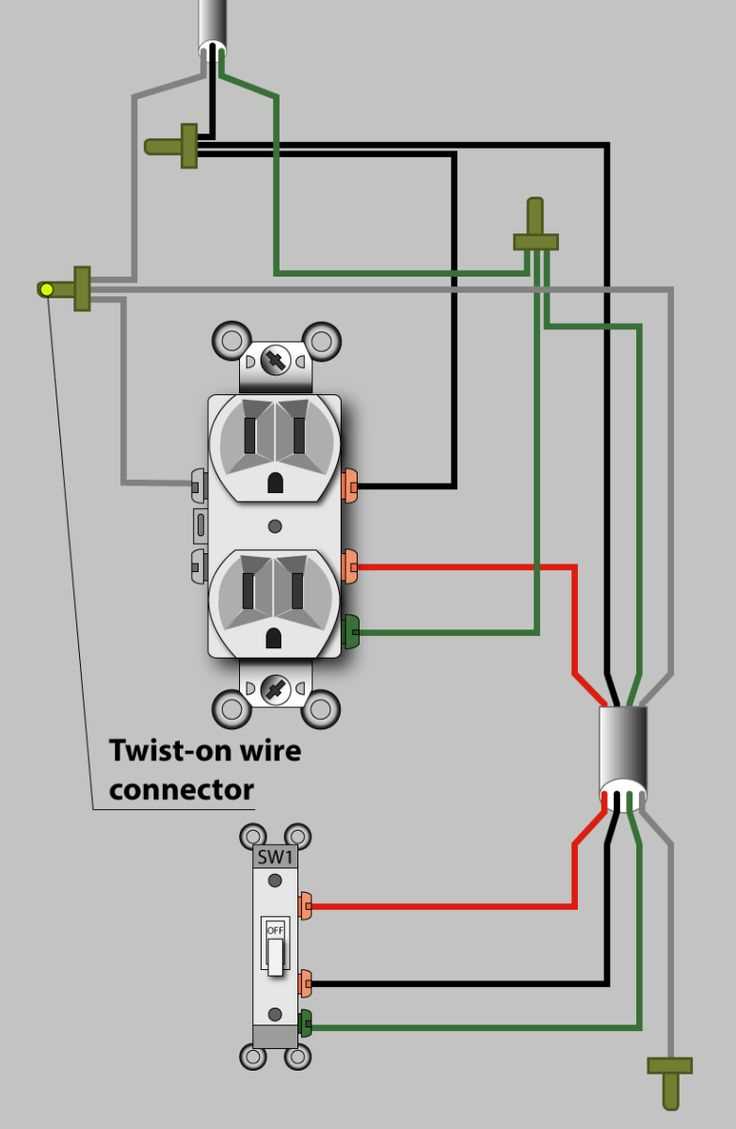

Connecting a Control Device and Receptacle on One Line
Start by identifying the incoming hot conductor at the first junction box. Connect it directly to the terminal feeding both the fixture and the receptacle to maintain power flow while keeping devices independent.
Use a neutral conductor from the source to the receptacle and fixture, ensuring continuous voltage. Keep neutral separate from live lines and secure connections with wire nuts and electrical tape.
- Label hot, neutral, and traveler lines with colored markers.
- Connect the control terminal of the fixture to the incoming hot line.
- Feed the receptacle from the same line while maintaining proper grounding.
- Test each device individually before securing the boxes.
Identifying Conductors and Terminals in the Circuit
Confirm the incoming hot conductor at the main junction box using a voltage tester. This ensures you know which line carries power before connecting any devices.
Mark each line with colored tape or labels to distinguish hot, neutral, and traveler conductors. Consistent labeling prevents confusion during installation and future maintenance.
Inspect terminal screws on each device. Identify the common terminal, typically darker, and the remaining terminals, usually brass or lighter, to avoid misconnection of the conductors.
Check grounding points in all boxes. Ensure that bare copper or green wires are properly attached to grounding screws or bus bars for safety compliance.
Trace continuity between each box with a multimeter. Verify that travelers connect the first and second control points without breaks or unintended cross-connections.
Test each conductor individually by energizing the line briefly. Confirm that voltage readings match expected values at each terminal and that there are no shorts or reversed polarity.
Document all connections with a quick sketch or photograph. This reference helps during troubleshooting or upgrades and reduces the risk of miswiring when adding new devices.
