Ensure the power is disconnected at the breaker before handling the fixture. Identify the live, neutral, and ground conductors in the junction box to prevent short circuits or electrical hazards.
Match wire colors accurately between the fixture leads and the receiver module. Typically, black indicates line voltage, white is neutral, and green or bare copper is grounding. Confirm these assignments with a multimeter before proceeding.
Position the receiver unit inside the mounting bracket without pinching wires. The module must sit flat against the ceiling canopy to allow full extension of the fan blades and secure installation.

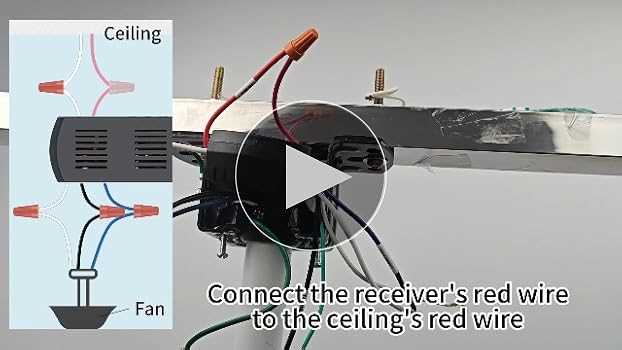

Connect the lighting circuit if the unit includes integrated lamps. Red or blue leads usually control the light kit separately. Ensure connectors are fully seated and insulated to prevent intermittent operation or sparks.
Secure all fasteners and gently tug each connection to confirm mechanical stability. Loose terminals can create arcing or disable remote functions entirely, so proper torque on screws is critical.
Test all functions before replacing the canopy cover. Verify blade rotation in all speed settings, confirm directional reversal if available, and check that lights respond to the transmitter buttons.
Installation and Connection Guide for Ceiling-Mounted Fan with Wireless Control
Turn off power at the main breaker before any installation. Identify line voltage, neutral, and ground wires in the junction box. Connect black to line, white to neutral, and green or bare copper to grounding screws. Secure each terminal with a slight tug to confirm stability.
Integrate the control module between the power source and the fixture leads. Use wire nuts to join colored leads accurately: blue or red for lighting, black for motor power, and white for neutral. Ensure the module sits flat within the mounting bracket and all wires are insulated and free from pinching before restoring power and testing all functions.
Identifying Power and Control Wires for the Fan
Locate the incoming line voltage by inspecting the junction box. The black wire typically carries live current, while the white wire serves as neutral. Ensure these leads are clearly marked before attempting any connections.
Distinguish the motor power lead from the control wires. Motor feeds often appear black or red and are paired with a neutral conductor. Verify continuity using a multimeter to prevent misconnection.
Identify the lighting circuit if the fixture includes a lamp kit. Blue or red insulated conductors usually correspond to illumination. Connect these separately from the motor leads and secure with twist-on connectors.
Recognize the grounding path by tracing the green or bare copper wire from the mounting bracket. This connection is mandatory to reduce the risk of electric shock and must remain continuous throughout installation.
Differentiate control module leads inside the housing. These may include separate lines for speed adjustments, reversing, and light dimming. Label each lead before joining to ensure correct operation and avoid accidental shorts.
Confirm connections before powering up by gently tugging each wire to verify secure attachment. Double-check that motor, lighting, and ground paths are isolated from each other and that insulation is intact to maintain safe functionality.
